SWITCH & RELAY & COMPUTER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
DENSO
YAZAKI
84540SWITCH ASSY, NEUTRAL START
89465SENSOR, OXYGEN
89465ASENSOR, OXYGEN NO.2
89467BSENSOR, AIR FUEL RATIO
MARK 89467-48130
MARK 89467-48210
89467CSENSOR, AIR FUEL RATIO, NO.2
MARK 89467-48160
MARK 89467-48220
89491SENSOR, ENGINE OIL LEVEL
89491AGASKET, ENGINE OIL LEVEL SENSOR
89530CCOMPUTER ASSY, TRANSMISSION CONTROL
sub89530-48150
SOUTH AFRICA SPEC
THAILAND SPEC
BRUNEI SPEC
MALAYSIA SPEC
SINGAPORE SPEC
INDONESIA SPEC
KAZAKHSTAN SPEC
CHILE SPEC
PHILIPPINE SPEC
MARK=89530-48220
CHILE SPEC
PHILIPPINE SPEC
SOUTH AFRICA SPEC
THAILAND SPEC
BRUNEI SPEC
MALAYSIA SPEC
SINGAPORE SPEC
INDONESIA SPEC
KAZAKHSTAN SPEC
MARK=89530-48230
PHILIPPINE SPEC,MARK=89530-48230
SOUTH AFRICA SPEC,MARK=89530-48230
BRUNEI SPEC,MARK=89530-48230
MALAYSIA SPEC,MARK=89530-48230
INDONESIA SPEC,MARK=89530-48230
ADORIA SPEC,MARK=89530-48230
CHILE SPEC,MARK=89530-48230
MARK=89530-48270
MARK=89530-48330
PHILIPPINE SPEC,MARK=89530-48340
SOUTH AFRICA SPEC,MARK=89530-48340
BRUNEI SPEC,MARK=89530-48340
MALAYSIA SPEC,MARK=89530-48340
INDONESIA SPEC,MARK=89530-48340
ADORIA SPEC,MARK=89530-48340
CHILE SPEC,MARK=89530-48340
MARK=89530-48340
MARK=89530-48360
89615SENSOR, KNOCK CONTROL
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
8271548A20BRACKET,WIRING HARNESS CLAMP
main82715-48A20
8271548A90BRACKET,WIRING HARNESS CLAMP
main82715-48A90
8271572040BRACKET,WIRING HARNESS CLAMP
main82715-72040
8271573010BRACKET,WIRING HARNESS CLAMP
main82715-73010
9155180825
main91551-80825
9155180830
main91551-80830
91621B0616
main91621-B0616
9165140620
main91651-40620
9167180612
main91671-80612
9167180616
main91671-80616

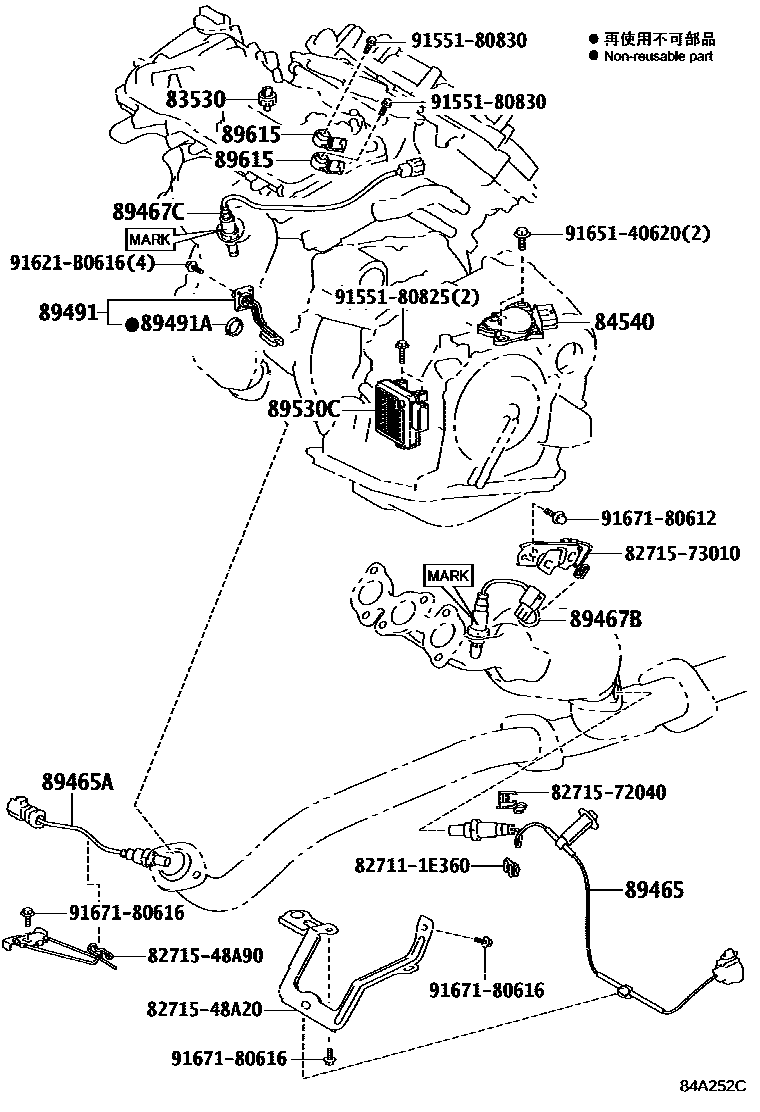

21 parts on this diagram · 19 diagrams in section
