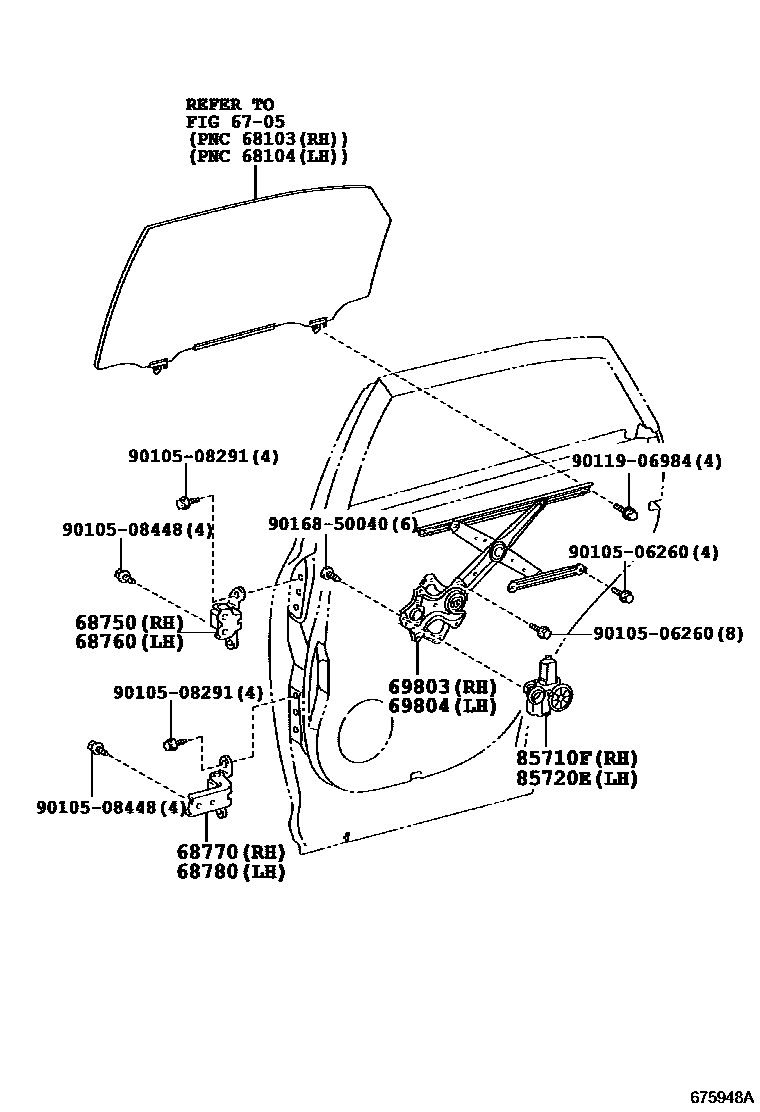

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20121iAGL10,GGL15,GYL1#200812-201203

main68750-20122iAGL10,GGL15,GYL1#201207-201509

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20121iAGL10,GGL15,GYL1#200812-201203

main68760-20122iAGL10,GGL15,GYL1#201207

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iAGL10,GGL15,GYL1#200812-201203

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iAGL10,GGL15,GYL1#200812-201203

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69801-48060iAGL10,GGL15,GYL1#200812-201203

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69802-48070iAGL10,GGL15,GYL1#200812-201203

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-48080iAGL10,GGL15,GYL1#200812-201203

main85710-48081iAGL10,GGL15,GYL1#201301

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-48090iAGL10,GGL15,GYL1#200812-201203

main85720-48091iAGL10,GGL15,GYL1#201301

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9011906984

main90119-06984

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
