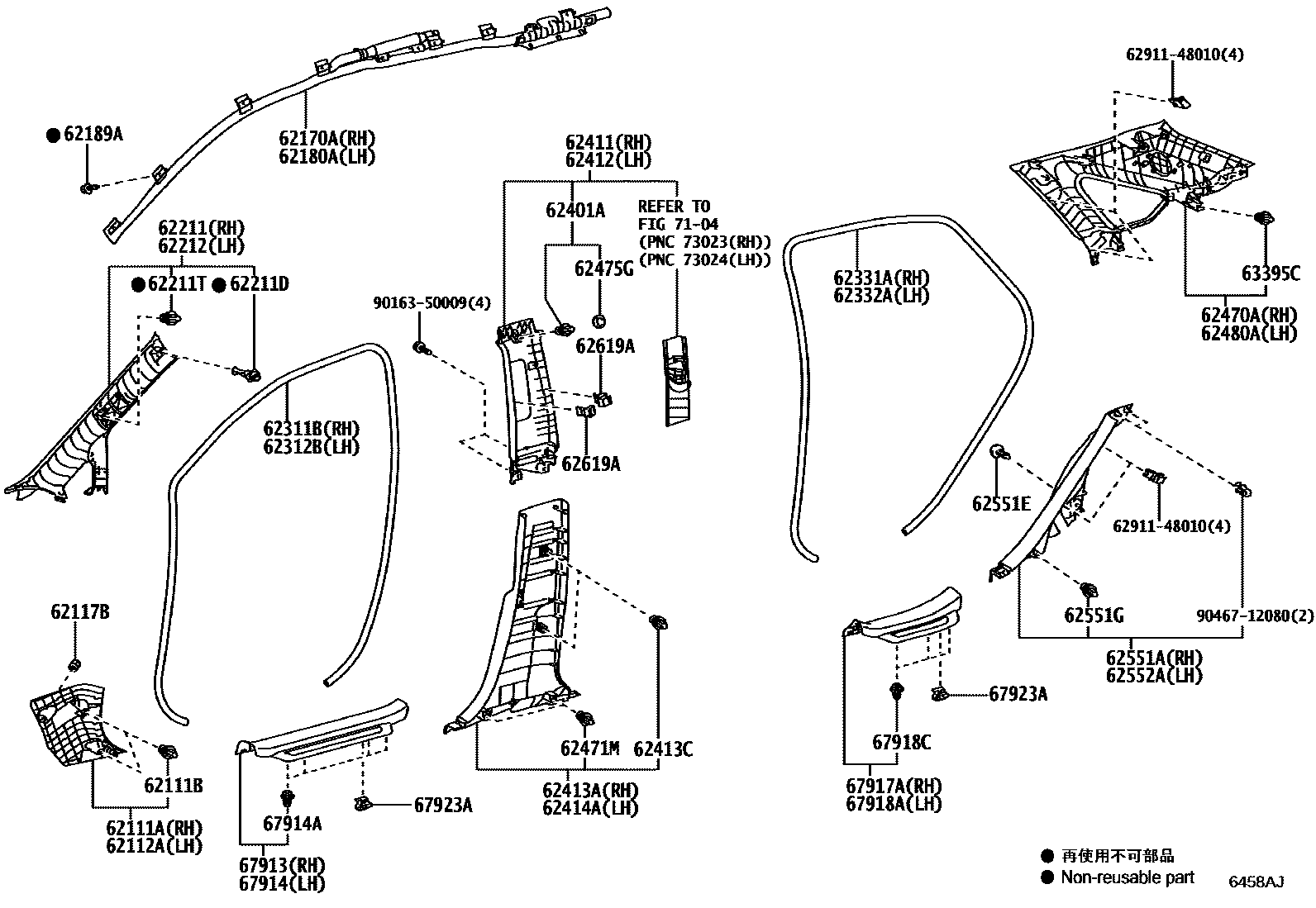

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-48050-A0iAGL10,GGL15,GYL1#201203-201306

IVORY,TRIM0#

main62101-48050-B0iAGL10,GGL15200812-201203

LT.GRAY,TRIM1#

main62101-48050-C0iGYL10200910-201203

BLACK,TRIM1#,2#

main62101-48051-A0iAGL10,GGL15,GYL1#201307

IVORY,TRIM0#

main62101-48051-C0iGYL10201307

BLACK,TRIM1#,2#,3#,4#

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161×4iAGL10,GGL15,GYL1#201203

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-48080-A0iAGL10,GGL15,GYL1#201203-201306

IVORY,TRIM0#

main62102-48080-B0iAGL10,GGL15200812-201203

LT.GRAY,TRIM1#

main62102-48080-C0iAGL10,GGL15,GYL1#201203-201306

BLACK,TRIM1#,2#,3#,4#

main62102-48081-A0iAGL10,GGL15,GYL1#201307

IVORY,TRIM0#

main62102-48081-C0iGYL10201307

BLACK,TRIM1#,2#,3#,4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147×2iAGL10,GGL15,GYL1#201205

main90467-06193-A2×2iAGL10,GGL15,GYL1#201203-201205

IVORY,TRIM0#

main90467-06193-B5×2iAGL10,GGL15200812-201203

LT.GRAY,TRIM1#

main90467-06193-C0×2iAGL10,GGL15200812-201203

BLACK,TRIM2#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-48050iAGL10,GGL15,GYL1#200812-201203

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-48050iAGL10,GGL15,GYL1#201203

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main90119-06869×20iAGL10,GGL15,GYL1#200812-201203

62211GARNISH, FRONT PILLAR, RH

main62210-48130-A0iAGL10,GGL15,GYL1#200812-201203

IVORY,TRIM0#

main62210-48130-A1iGYL15..GCC;AGL10,GGL15201203-201306

IVORY,TRIM0#

main62210-48130-B0iAGL10,GGL15,GYL1#200812-201203

LT.GRAY,TRIM1#,2#

main62210-48130-B1iGGL15,GYL15..LHD..EUR201203-201306

LT.GRAY,TRIM10,20,30,40

main62210-48130-C1iGGL15,GYL15..LHD..EUR201203-201306

BLACK,TRIM11,21,22,31,41

main62210-48131-A1iAGL10,GGL15,GYL1#..EUR201307-201403

IVORY,TRIM0#

sub62210-48133

main62210-48131-B1iGGL15,GYL15..LHD..EUR201307-201403

LT.GRAY,TRIM10,20,30,40

sub62210-48133

main62210-48131-C1iGGL15,GYL15..LHD..EUR201307-201403

BLACK,TRIM3#

sub62210-48133

main62210-48132-A1iAGL10,GGL15,GYL1#..EUR201403-201509

IVORY,TRIM0#

sub62210-48180

main62210-48132-B1iGGL15,GYL15..LHD..EUR201403-201509

LT.GRAY,TRIM10,20,30,40

sub62210-48180

main62210-48132-C1iGGL15,GYL15..LHD..EUR201403-201509

BLACK,TRIM3#

sub62210-48180

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main62217-48030×2iAGL10,GGL15,GYL1#201403

main90950-08005×2iAGL10,GGL15,GYL1#201203-201403

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10188×2iAGL10,GGL15,GYL1#201203

62212GARNISH, FRONT PILLAR, LH

main62220-48130-A0iAGL10,GGL15200812-201203

IVORY,TRIM0#

main62220-48130-A1iAGL10,GGL15201203-201306

IVORY,TRIM0#,40

main62220-48130-B0iAGL10,GGL15200812-201203

LT.GRAY,TRIM1#,2#

main62220-48130-B1iGGL15..LHD..EUR201203-201306

LT.GRAY,TRIM10,20,30,40

main62220-48130-C1iGGL15..LHD..EUR201203-201306

BLACK,TRIM11,21,22,31,41

main62220-48131-A1iGGL15..GCC201307-201403

IVORY,TRIM0#

sub62220-48133

main62220-48131-B1iGGL15..RHD201307-201403

LT.GRAY,TRIM10,20,30,40

sub62220-48133

main62220-48131-C1iGGL15..RHD201307-201403

BLACK,TRIM3#

sub62220-48133

main62220-48132-A1iGGL15..GCC201403-201509

IVORY,TRIM0#

sub62220-48190

main62220-48132-B1iGGL15..RHD201403-201509

LT.GRAY,TRIM10,20,30,40

sub62220-48190

main62220-48132-C1iGGL15..LHD..EUR201403-201509

BLACK,TRIM3#

sub62220-48190

main62220-48140-A0iGYL1#200903-201203

IVORY,TRIM0#

main62220-48140-A1iGYL15..GCC201203-201306

IVORY,TRIM0#

main62220-48140-B0iGYL1#200903-201203

LT.GRAY,TRIM1#,2#

main62220-48140-B1iGYL10201203-201306

LT.GRAY,TRIM10,20,30,40

main62220-48140-C1iGYL15..GCC201203-201306

BLACK,TRIM11,21,22,31,41

main62220-48141-A1iGYL15..GCC201307-201403

IVORY,TRIM0#

sub62220-48143

main62220-48141-B1iGYL10201307-201403

LT.GRAY,TRIM10,20,30,40

sub62220-48143

main62220-48141-C1iGYL15..GCC201307-201403

BLACK,TRIM1#,21,22,31,41

sub62220-48143

main62220-48142-A1iGYL15..GCC201403-201509

IVORY,TRIM0#

main62220-48142-B1iGYL10201403-201509

LT.GRAY,TRIM10,20,30,40

main62220-48142-C1iGYL15..GCC201403-201509

BLACK,TRIM1#,21,22,31,41

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-48070iAGL10,GGL15,GYL1#200812-201203

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-48070iAGL10,GGL15,GYL1#200812-201203

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-48050iAGL10,GGL15,GYL1#200812-201203

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-48050iAGL10,GGL15,GYL1#200812-201203

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main62707-48010×2iAGL10,GGL15,GYL1#200812-201203

62411GARNISH, CENTER PILLAR, RH

main62410-48090-A0iAGL10,GGL15,GYL1#..EUR201203-201306

IVORY,TRIM0#

main62410-48090-B0iGYL10;AGL10..RHD201203-201306

LT.GRAY,TRIM10,20,30,40

main62410-48090-C0iAGL10..LHD201203-201306

BLACK,TRIM11,21,22,31,41

main62410-48091-A0iAGL10,GGL15,GYL1#..EUR201307

IVORY,TRIM0#

sub62410-48092

main62410-48091-B0iGGL15,GYL15..LHD..EUR201307

LT.GRAY,TRIM10,20,30,40

sub62410-48092

main62410-48091-C0iGGL15,GYL15..LHD..EUR201307

BLACK,TRIM3#

sub62410-48092

62412GARNISH, CENTER PILLAR, LH

main62420-48080-A0iAGL10,GGL15,GYL1#..EUR201203-201306

IVORY,TRIM0#

main62420-48080-B0iGYL10;AGL10..RHD201203-201306

LT.GRAY,TRIM10,20,30,40

main62420-48080-C0iAGL10..LHD201203-201306

BLACK,TRIM22

main62420-48081-A0iAGL10,GGL15,GYL1#..EUR201307

IVORY,TRIM0#

sub62420-48082

main62420-48081-B0iGGL15,GYL15..LHD..EUR201307

LT.GRAY,TRIM10,20,30,40

sub62420-48082

main62420-48081-C0iGGL15,GYL15..LHD..EUR201307

BLACK,TRIM3#

sub62420-48082

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-48040-A0iAGL10,GGL15,GYL1#200812-201203

IVORY,TRIM0#

main62413-48040-B0iAGL10,GGL15200812-201203

LT.GRAY,TRIM1#

main62413-48040-C0iGYL10200910-201203

BLACK,TRIM1#,2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161×6iAGL10,GGL15,GYL1#200812-201203

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-48040-A0iAGL10,GGL15,GYL1#200812-201203

IVORY,TRIM0#

main62414-48040-B0iGYL15200903-201203

LT.GRAY,TRIM10

main62414-48040-C0iAGL10,GGL15,GYL1#201203

BLACK,TRIM1#,2#,3#,4#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-48240-A0iAGL10,GGL15,GYL1#201203-201509

IVORY,TRIM0#,40

main62470-48240-B0iAGL10,GGL15,GYL1#200812-201203

LT.GRAY,TRIM1#,2#

main62470-48250-A0iAGL10..RHD;GGL15,GYL15200812-201203

AUDIO-DVD CHANGER,15SPEAKER,*MAR,IVORY,TRIM0#

main62470-48250-B0supersedes 62470-48240-B0iGGL15,GYL15..LHD..EUR201203-201509

AUDIO-DVD,15SPEAKER,MARK LEVINSON,LT.GRAY,TRIM1#,20,30,40

main62470-48250-C0supersedes 62470-48240-C0iGGL15,GYL15..LHD..EUR201203-201509

AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM11,21,22,31,41

62471MCLIP

main90467-10167×4iAGL10,GGL15,GYL1#201203

62475GSEAL, ROOF SIDE, INNER

main62475-48060×2iAGL10,GGL15,GYL1#200812-201203

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-48180-A0iAGL10,GGL15,GYL1#200812-201203

IVORY,TRIM0#

main62480-48180-B0iAGL10,GGL15,GYL1#200812-201203

LT.GRAY,TRIM1#,2#

main62480-48190-A0iAGL10..RHD;GGL15,GYL15200812-201203

AUDIO-DVD CHANGER,15SPEAKER,*MAR,IVORY,TRIM0#

main62480-48190-B0supersedes 62480-48180-B0iGGL15,GYL15..LHD..EUR201203-201509

AUDIO-DVD,15SPEAKER,MARK LEVINSON,LT.GRAY,TRIM1#,2#,30,40

main62480-48190-C0supersedes 62480-48180-C0iGGL15,GYL15..LHD..EUR201203-201509

AUDIO-DVD,15SPEAKER,MARK LEVINSON,BLACK,TRIM11,21,22,31,41

62551ACOVER, REAR SEAT SIDE, RH

main62551-48110-A0iAGL10,GGL15,GYL1#201203

IVORY,TRIM0#

main62551-48110-B0iAGL10,GGL15200812-201203

LT.GRAY,TRIM1#

main62551-48110-C0iAGL10,GGL15,GYL1#201203

BLACK,TRIM1#,2#,3#,4#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-05161-C0×4iGGL15200812-201203

BLACK,TRIM2#

62551GCLIP

main63395-12150×2iAGL10,GGL15,GYL1#200812-201203

62552ACOVER, REAR SEAT SIDE, LH

main62552-48070-A0iAGL10,GGL15,GYL1#200812-201203

IVORY,TRIM0#

main62552-48070-B0iAGL10,GGL15200812-201203

LT.GRAY,TRIM1#

main62552-48070-C0iGYL15200903-201203

BLACK,TRIM12,2#

62619APLATE, SIDE TRIM SET

main62619-48010×4iAGL10,GGL15,GYL1#200812-201203

63395CCLIP(FOR ROOF SIDE INNER GARNISH)

main63395-12150×16iAGL10,GGL15,GYL1#200812-201203

67913PLATE, FRONT DOOR SCUFF, RH

main67910-48060-A0iAGL10,GGL15,GYL1#201203-201306

IVORY,TRIM0#

main67910-48060-B0iGYL15200903-201203

LT.GRAY,TRIM10

main67910-48060-C0iGYL15200903-201203

BLACK,TRIM12,2#

main67910-48061-A0iAGL10,GGL15,GYL1#201307

IVORY,TRIM0#

sub67910-48062

main67910-48061-C0iGYL10201307

BLACK,TRIM1#,2#,3#,4#

sub67910-48062

main67910-48070-A0iAGL10,GGL15200812-201203

DOOR SCUFF PLATE-FRONT ILLUMINATED(LED),IVORY,TRIM0#

main67910-48070-B0supersedes 67910-48060-B0iAGL10,GGL15200812-201203

DOOR SCUFF PLATE-FRONT ILLUMINATED(LED),LT.GRAY,TRIM1#

main67910-48070-C0supersedes 67910-48060-C0iAGL10,GGL15201203-201306

LEXUS LOGO PLATE-FRONT ILLUMINATED(LED),BLACK,TRIM1#,2#,3#,4#

main67910-48071-A0iAGL10,GGL15201307

LEXUS LOGO PLATE-FRONT ILLUMINATED(LED),IVORY,TRIM0#

sub67910-48072

main67910-48071-C0iGGL15..GCC201307

LEXUS LOGO PLATE-FRONT ILLUMINATED(LED),BLACK,TRIM2#,3#,4#

sub67910-48072

main67910-48080-A0iGYL1#200903-201203

DOOR SCUFF PLATE-FRONT ILLUMINATED(LED),IVORY,TRIM0#

main67910-48080-C0iGYL1#201203-201306

LEXUS LOGO PLATE-FRONT ILLUMINATED(LED),BLACK,TRIM1#,2#,3#,4#

main67910-48081-A0iGYL1#201307

LEXUS LOGO PLATE-FRONT ILLUMINATED(LED),IVORY,TRIM0#

sub67910-48082

main67910-48081-C0supersedes 67910-48061-C0iGYL15..EUR201307

LEXUS LOGO PLATE-FRONT ILLUMINATED(LED),BLACK,TRIM1#,2#,4#

sub67910-48082

main67910-48110-C0iGGL15..GCC201008-201108

DOOR SCUFF PLATE-SECOND LINE,BLACK,TRIM2#

sub67910-48111

main67910-48120-C0iGGL15,GYL15201203-201306

LEXUS LOGO PLATE-"F SPORT",BLACK,TRIM1#,2#,3#,4#

main67910-48121-C0iGGL15,GYL15201307

LEXUS LOGO PLATE-"F SPORT",BLACK,TRIM1#,2#,3#,4#

sub67910-48122

67914PLATE, FRONT DOOR SCUFF, LH

main67920-48060-A0iAGL10,GGL15,GYL1#200812-201203

IVORY,TRIM0#

main67920-48060-B0iGYL15200903-201203

LT.GRAY,TRIM10

main67920-48060-C0iGYL15200903-201203

BLACK,TRIM12,2#

main67920-48061-A0iAGL10,GGL15,GYL1#201307

IVORY,TRIM0#

sub67920-48062

main67920-48061-C0iGYL10201307

BLACK,TRIM1#,2#,3#,4#

sub67920-48062

main67920-48070-A0iAGL10,GGL15201203-201306

LEXUS LOGO PLATE-FRONT ILLUMINATED(LED),IVORY,TRIM0#

main67920-48070-B0supersedes 67920-48060-B0iAGL10,GGL15200812-201203

DOOR SCUFF PLATE-FRONT ILLUMINATED(LED),LT.GRAY,TRIM1#

main67920-48070-C0supersedes 67920-48060-C0iAGL10,GGL15201203-201306

LEXUS LOGO PLATE-FRONT ILLUMINATED(LED),BLACK,TRIM1#,2#,3#,4#

main67920-48071-A0iAGL10,GGL15201307

LEXUS LOGO PLATE-FRONT ILLUMINATED(LED),IVORY,TRIM0#

sub67920-48072

main67920-48071-C0iGGL15..GCC201307

LEXUS LOGO PLATE-FRONT ILLUMINATED(LED),BLACK,TRIM2#,3#,4#

sub67920-48072

main67920-48080-A0iGYL1#200903-201203

DOOR SCUFF PLATE-FRONT ILLUMINATED(LED),IVORY,TRIM0#

main67920-48080-C0iGYL1#200903-201203

DOOR SCUFF PLATE-FRONT ILLUMINATED(LED),BLACK,TRIM1#,2#

main67920-48081-A0iGYL1#201307

LEXUS LOGO PLATE-FRONT ILLUMINATED(LED),IVORY,TRIM0#

sub67920-48082

main67920-48081-C0supersedes 67920-48061-C0iGYL15..EUR201307

LEXUS LOGO PLATE-FRONT ILLUMINATED(LED),BLACK,TRIM1#,2#,4#

sub67920-48082

main67920-48110-C0iGGL15..GCC201008-201108

DOOR SCUFF PLATE-SECOND LINE,BLACK,TRIM2#

sub67920-48111

main67920-48120-C0iGGL15,GYL15201203-201306

LEXUS LOGO PLATE-"F SPORT",BLACK,TRIM1#,2#,3#,4#

main67920-48121-C0iGGL15,GYL15201307

LEXUS LOGO PLATE-"F SPORT",BLACK,TRIM1#,2#,3#,4#

sub67920-48122

67914ACLIP(FOR SCUFF PLATE)

main63395-12150×8iAGL10,GGL15,GYL1#201203

67917APLATE, REAR DOOR SCUFF, RH

main67930-48060-A0iAGL10,GGL15,GYL1#200812-201203

IVORY,TRIM0#

main67930-48060-B0iAGL10,GGL15200812-201203

LT.GRAY,TRIM1#

main67930-48060-C0iAGL10,GGL15,GYL1#201203-201306

BLACK,TRIM1#,2#,3#,4#

main67930-48061-A0iAGL10,GGL15,GYL1#201307-201509

IVORY,TRIM0#

main67930-48061-C0supersedes 67930-48061-C0iAGL10,GGL15,GYL15..EUR201307-201509

LEXUS LOGO PLATE-FRONT ILLUMINATED(LED),BLACK,TRIM2#,3#,4#

67918APLATE, REAR DOOR SCUFF, LH

main67940-48060-A0iAGL10,GGL15,GYL1#200812-201203

IVORY,TRIM0#

main67940-48060-B0iAGL10,GGL15200812-201203

LT.GRAY,TRIM1#

main67940-48060-C0iGYL10200910-201203

BLACK,TRIM1#,2#

main67940-48061-A0iAGL10,GGL15,GYL1#201307-201509

IVORY,TRIM0#

main67940-48061-C0supersedes 67940-48061-C0iAGL10,GGL15,GYL15..EUR201307-201509

LEXUS LOGO PLATE-FRONT ILLUMINATED(LED),BLACK,TRIM2#,3#,4#

67918CCLIP(FOR REAR SCUFF PLATE)

main90467-10167×6iAGL10,GGL15,GYL1#200812-201203

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-30030×4iAGL10,GGL15,GYL1#200812-201203

7104

6291148010WEATHERSTRIP, CENTER FRONT SIDE WINDOW, CENTER

main62911-48010

9016350009

main90163-50009

9046712080

main90467-12080

42 parts on this diagram · 2 diagrams in section
