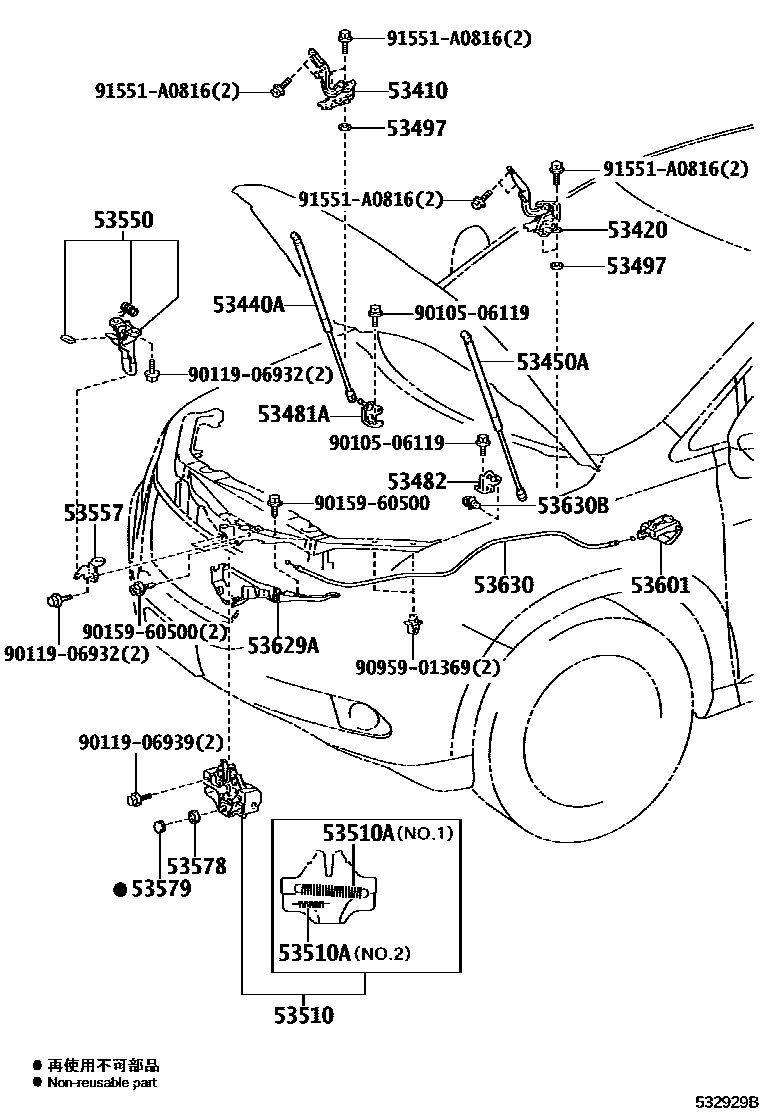

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-48090iAGL10,GGL15,GYL1#200812-201203

53420HINGE ASSY, HOOD, LH

main53420-48090iAGL10,GGL15,GYL1#200812-201203

53440ASUPPORT ASSY, HOOD, RH

main53440-0W200iAGL10,GGL15,GYL1#200812-201203

53450ASUPPORT ASSY, HOOD, LH

main53450-0W170iAGL10,GGL15,GYL1#200812-201203

53481ABRACKET, HOOD SUPPORT, RH

main53481-48030iAGL10,GGL15,GYL1#200812-201203

53482BRACKET, HOOD SUPPORT, LH

main53482-48020iAGL10,GGL15,GYL1#200812-201203

53497PAD, HOOD HINGE, NO.1

main53497-50020×4iAGL10,GGL15,GYL1#200812-201203

T=1.0

53510LOCK ASSY, HOOD

main53510-48200iGGL15,GYL15..RHD200812-200909

main53510-48201iAGL10,GGL15,GYL1#..RHD201203

main53510-48210iGGL15,GYL15..LHD200812-200909

main53510-48211iAGL10,GGL15,GYL1#..LHD201203

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09050iAGL10,GGL15,GYL1#200812-201203

WD=0.9,CW=20.5,NO.2

main90506-18068iAGL10,GGL15,GYL1#200812-201203

WD=1.8,CW=18,NO.1

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-48030iAGL10,GGL15,GYL1#200812-201103

main53550-48031iAGL10,GGL15,GYL1#201104-201203

53557CATCH, HOOD AUXILIARY HOOK

main53557-48010iAGL10,GGL15,GYL1#201203

53578NUT, HOOD LOCK

main53578-50010iAGL10,GGL15,GYL1#200812-201203

53579CAP, HOOD LOCK NUT

main53579-50010iAGL10,GGL15,GYL1#200812-201203

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-A4iAGL10,GGL15,GYL1#201203

IVORY,TRIM0#

main53601-52010-B5iAGL10,GGL15,GYL10200812-201203

LT.GRAY,TRIM1#

main53601-52010-C0iGYL15200903-201203

BLACK,TRIM12,2#

53629ACOVER, HOOD LOCK CONTROL CABLE

main53629-48020iAGL10,GGL15,GYL1#..LHD200812-201203

main53629-48030iAGL10,GGL15,GYL1#..RHD201203

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-48070iAGL10,GGL15,GYL1#200812-201203

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main64618-22020iAGL10,GGL15,GYL1#201203

9010506119

main90105-06119

9011906932

main90119-06932

9011906939

main90119-06939

9015960500

main90159-60500

9095901369

main90959-01369

91551A0816

main91551-A0816

23 parts on this diagram · 2 diagrams in section
