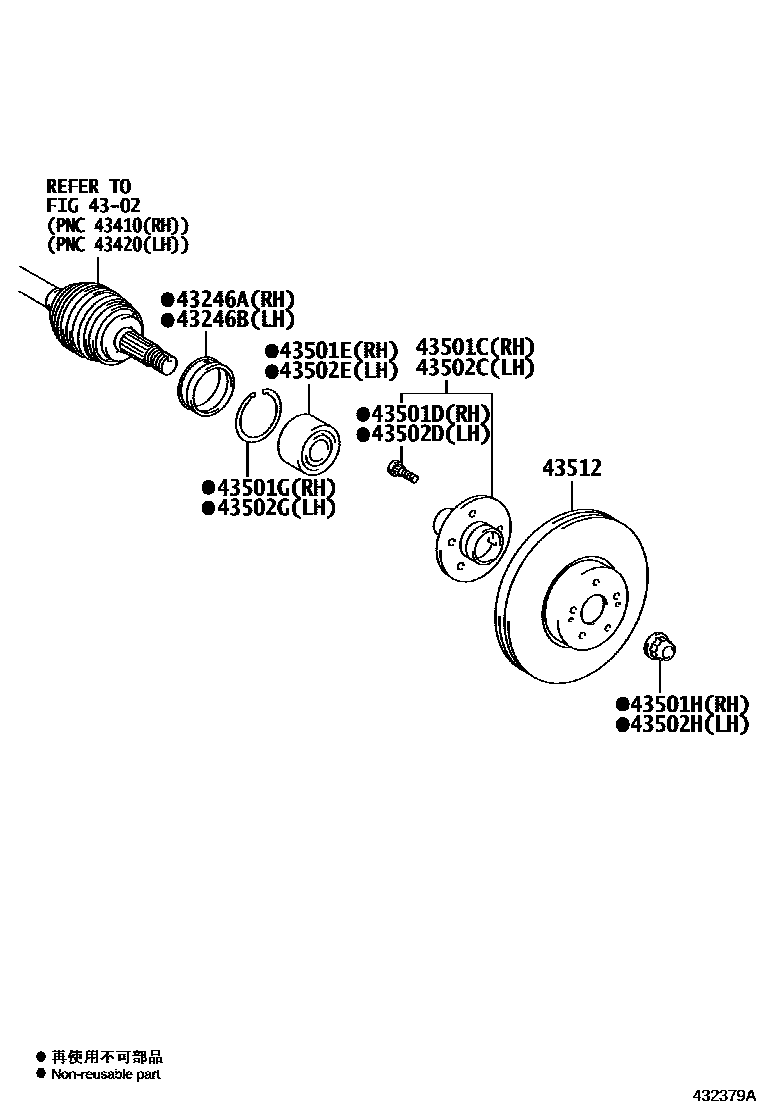

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-48010i201203-201405

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-48010i200812-201203

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-28100i200812-201203

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i200812-201203

43501EBEARING (FOR FRONT AXLE HUB RH)

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i200812-201203

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-28100i200812-201203

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i201203

43502EBEARING (FOR FRONT AXLE HUB LH)

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

43502HNUT (FOR FRONT AXLE SHAFT LH)

43512DISC, FRONT

main43512-48110×2i201008-201203

BRUNEI SPEC; CHILE SPEC; INDONESIA SPEC; MALAYSIA SPEC; PHILIPPINE SPEC; SOUTH AFRICA SPEC

main43512-48120×2i200812-201203

SUSPENSION-AIR SUSPENTION

14 parts on this diagram · 1 diagram in section
