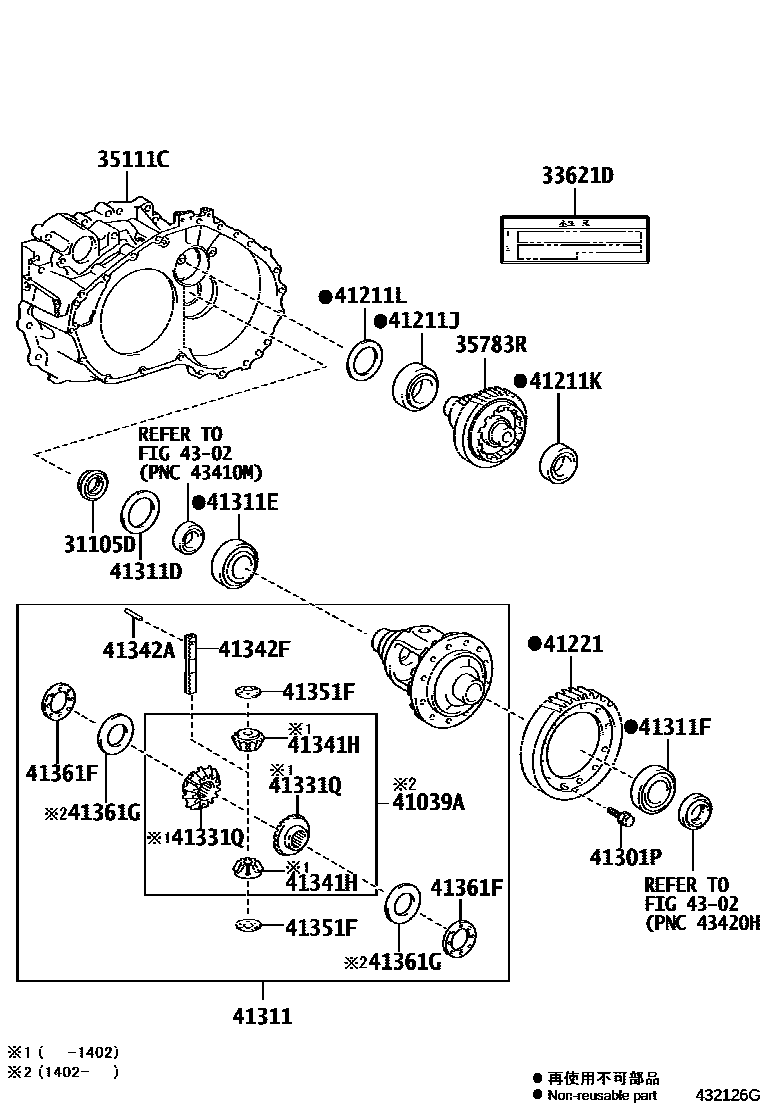

FRONT AXLE HOUSING & DIFFERENTIAL
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
33621DLABEL, TRANSAXLE OIL INFORMATION
35111CHOUSING, TRANSAXLE
41039AGEAR KIT, DIFFERENTIAL
41211JBEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION RH)
41211KBEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION LH)
41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)
T=2.000
T=2.025
T=2.050
T=2.075
T=2.100
T=2.125
T=2.150
T=2.175
T=2.200
T=2.225
T=2.250
T=2.275
T=2.300
T=2.325
T=2.350
T=2.375
T=2.400
T=2.425
T=2.450
T=2.475
T=2.500
T=2.525
T=2.550
T=2.575
T=2.600
T=2.625
T=2.650
T=2.675
T=2.700
T=2.725
T=2.750
T=2.775
T=2.800
T=2.825
T=2.850
T=2.875
T=2.900
T=2.925
T=2.950
T=2.975
T=3.000
T=2.000
T=2.025
T=2.050
T=2.075
T=2.100
T=2.125
T=2.150
T=2.175
T=2.200
T=2.225
T=2.250
T=2.275
T=2.300
T=2.325
T=2.350
T=2.375
T=2.400
T=2.425
T=2.450
T=2.475
T=2.500
T=2.525
T=2.550
T=2.575
T=2.600
T=2.625
T=2.650
T=2.675
T=2.700
T=2.725
T=2.750
T=2.775
T=2.800
T=2.825
T=2.850
T=2.875
T=2.900
T=2.925
T=2.950
T=2.975
T=3.000
41301PSCREW(FOR FRONT DIFFERENTIAL CASE)
41311CASE, FRONT DIFFERENTIAL
41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
T=2.000
T=2.025
T=2.050
T=2.075
T=2.100
T=2.125
T=2.150
T=2.175
T=2.200
T=2.225
T=2.250
T=2.275
T=2.300
T=2.325
T=2.350
T=2.375
T=2.400
T=2.425
T=2.450
T=2.475
T=2.500
T=2.525
T=2.550
T=2.575
T=2.600
T=2.625
T=2.650
T=2.675
T=2.700
T=2.725
T=2.750
T=2.775
T=2.800
T=2.825
T=2.850
T=2.875
T=2.000
T=2.025
T=2.050
T=2.075
T=2.100
T=2.125
T=2.150
T=2.175
T=2.200
T=2.225
T=2.250
T=2.275
T=2.300
T=2.325
T=2.350
T=2.375
T=2.400
T=2.425
T=2.450
T=2.475
T=2.500
T=2.525
T=2.550
T=2.575
T=2.600
T=2.625
T=2.650
T=2.675
T=2.700
T=2.725
T=2.750
T=2.775
T=2.800
T=2.825
T=2.850
T=2.875
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41331QGEAR, DIFFERENTIAL SIDE
41341HPINION, DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=1.30
41361GWASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR)
4302
22 parts on this diagram · 2 diagrams in section
