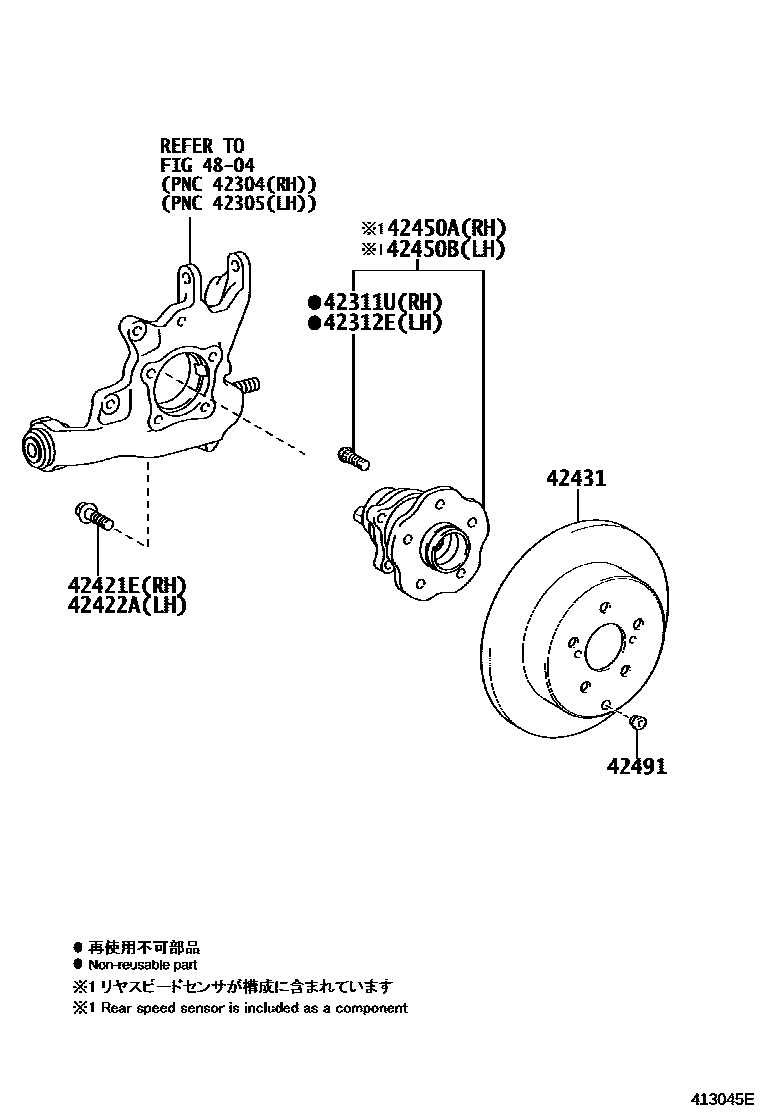

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iAGL10,GGL15,GYL1#201203-201503

main90942-02052×5iAGL10,GGL15,GYL1#201504

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iAGL10,GGL15,GYL1#201203-201503

main90942-02052×5iAGL10,GGL15,GYL1#201504

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-14097×4iAGL10,GGL15,GYL1#201203

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-14097×4iAGL10,GGL15,GYL1#201203

42431DISC, REAR

main42431-48070×2iGYL15..LHD201008-201203

SOUTH AFRICA SPEC

main42431-48080×2iGGL15,GYL1#200812-201203

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-48050iAGL10,GYL10201203-201509

sub42450-48051

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-48050iAGL10,GYL10200910-201203

sub42450-48051

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iAGL10,GGL15,GYL1#200812-201203

4804

9 parts on this diagram · 4 diagrams in section
