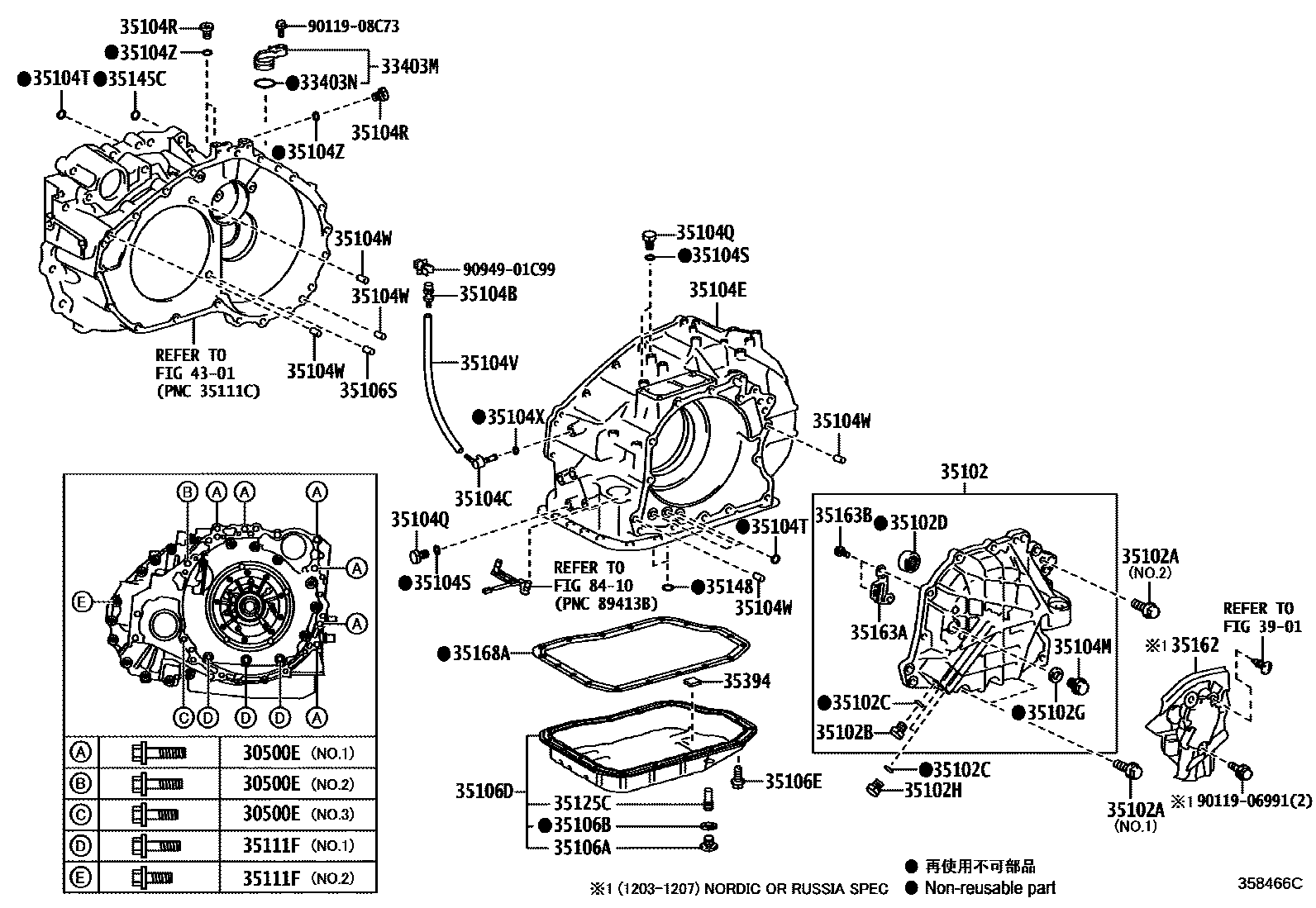

TRANSMISSION CASE & OIL PAN (ATM)
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
*10-1.25PX41-28,NO.3
*12-1.25PX55-30,NO.2
*12-1.25PX50-30,NO.2
*10-1.25PX50-30,NO.1
33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)
33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
35102COVER SUB-ASSY, TRANSAXLE REAR
35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)
*8-1.25PX28-22,NO.1
*8-1.25PX28-22,NO.2
35102BPLUG(FOR TRANSAXLE REAR COVER)
35102CRING, O(FOR TRANSAXLE REAR COVER PULG)
35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)
35102GGASKET (FOR TRANSAXLE REAR COVER )
35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)
35104BPLUG, BREATHER, NO.1 (ATM)
35104CPLUG, BREATHER, NO.2 (ATM)
35104MPLUG, REFILL(ATM)
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
35104RPLUG, NO.2 (FOR TRANSAXLE CASE)
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)
35104VHOSE (FOR BREATHER PLUG)
35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)
35104XRING, O (FOR BREATHER PLUG)
35104ZGASKET (FOR TRANSAXLE CASE)
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106EBOLT (FOR TRANSAXLE OIL PAN)
35106SPIN, RING (FOR TRANSAXLE CASE)
35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
*8-1.25PX45-22,NO.1
*8-1.25PX45-22,NO.2
35125CTUBE, TRANSMISSION OIL FILLER, NO.1
35145CGASKET, TRANSAXLE CASE
35148GASKET, GOVERNOR APPLY, NO.1
35162PROTECTOR, AUTOMATIC TRANSAXLE CASE
NORDIC SPEC
35163APLATE, TRANSAXLE REAR COVER
35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)
35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
3901
4301
8410
9011906991
main90119-06991
9011908C73
main90119-08C73
9094901C99
main90949-01C99
42 parts on this diagram · 2 diagrams in section
