ENGINE OVERHAUL GASKET KIT

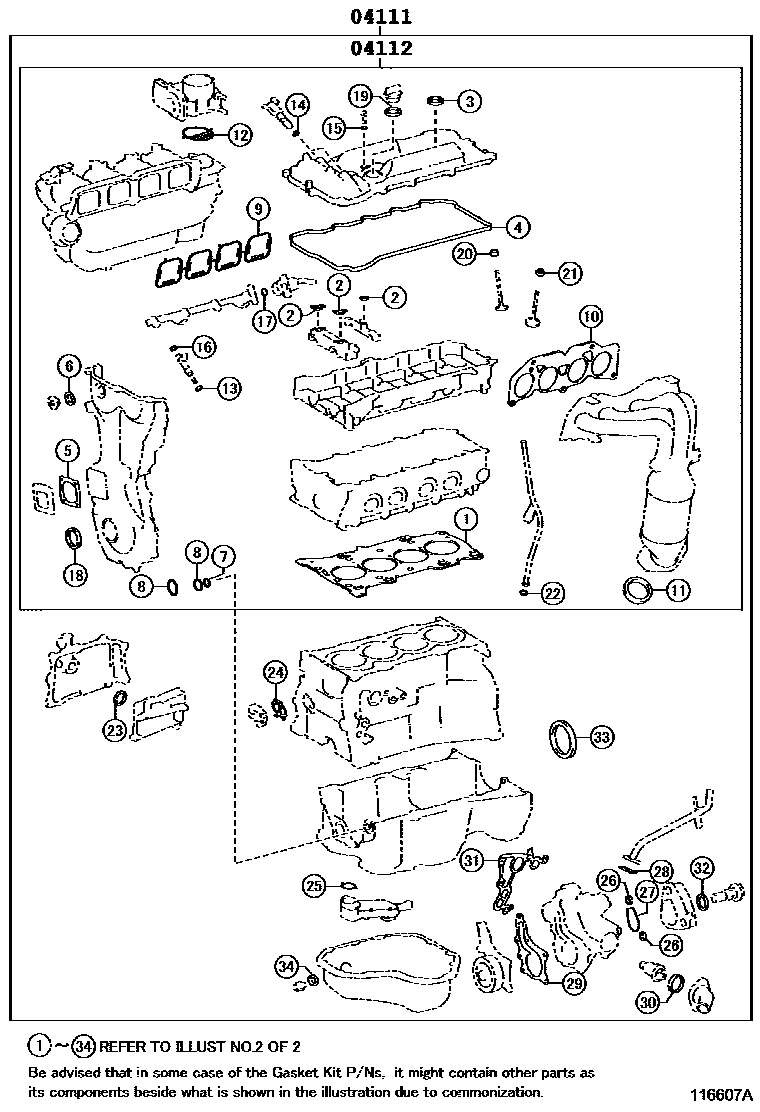

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-31853i201505
main04111-31870i200812-201108
main04111-31871i201108-201111
main04111-31872i201203-201503
main04111-31873i201503-201504
main04111-31881i201505
main04111-31890i200903-200906
main04111-31891i201203-201503
main04111-31892i201503-201504
main04111-31910i201203-201503
HONG KONG SPEC
main04111-31911i201503
HONG KONG SPEC
main04111-36050i201008-201111
main04111-36051i201111-201201
main04111-36052i201201-201203
main04111-36053i201309-201312
main04111-36054i201312-201406
main04111-36055i201406-201408
main04111-36056i201408
sub04111-36057
04112GASKET KIT, ENGINE VALVE GRIND
main04112-31540i200812-201108
sub04112-31541
main04112-31551i201505
main04112-31560i200903-200906
main04112-31561i200906-201108
main04112-31562i201203-201504
main04112-31651i201203
HONG KONG SPEC
main04112-31741i201505
main04112-31750i201108-201111
main04112-31751i201111-201203
main04112-36040i201008-201201
main04112-36041i201203-201312
main04112-36042i201312-201406
main04112-36043i201406-201408
main04112-36044i201408
sub04112-36045

2 parts on this diagram · 10 diagrams in section
