SHORT BLOCK ASSEMBLY

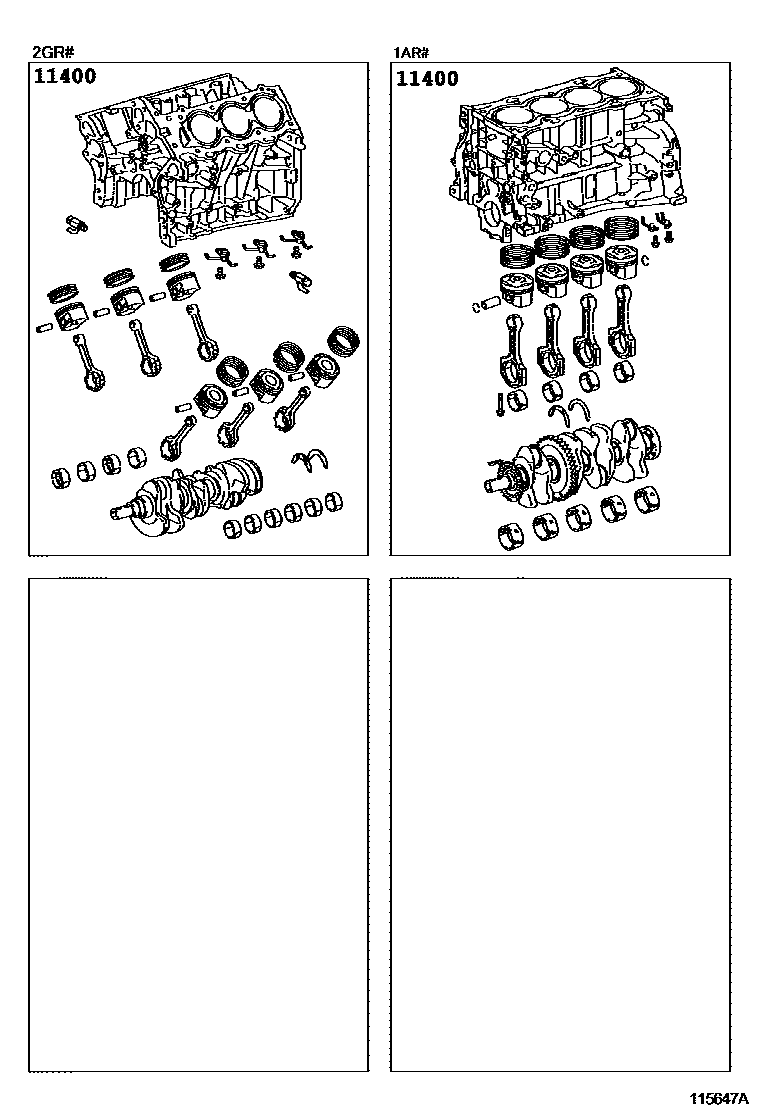

Parts diagram

11400BLOCK ASSY, SHORT

main11400-31161i200812-200905

main11400-31163i200905-201210

main11400-31270i200903-201407

main11400-31360i201210-201407

main11400-36050i201008-201203

main11400-39105i201407

main11400-39115i201407

1 parts on this diagram · 1 diagram in section
