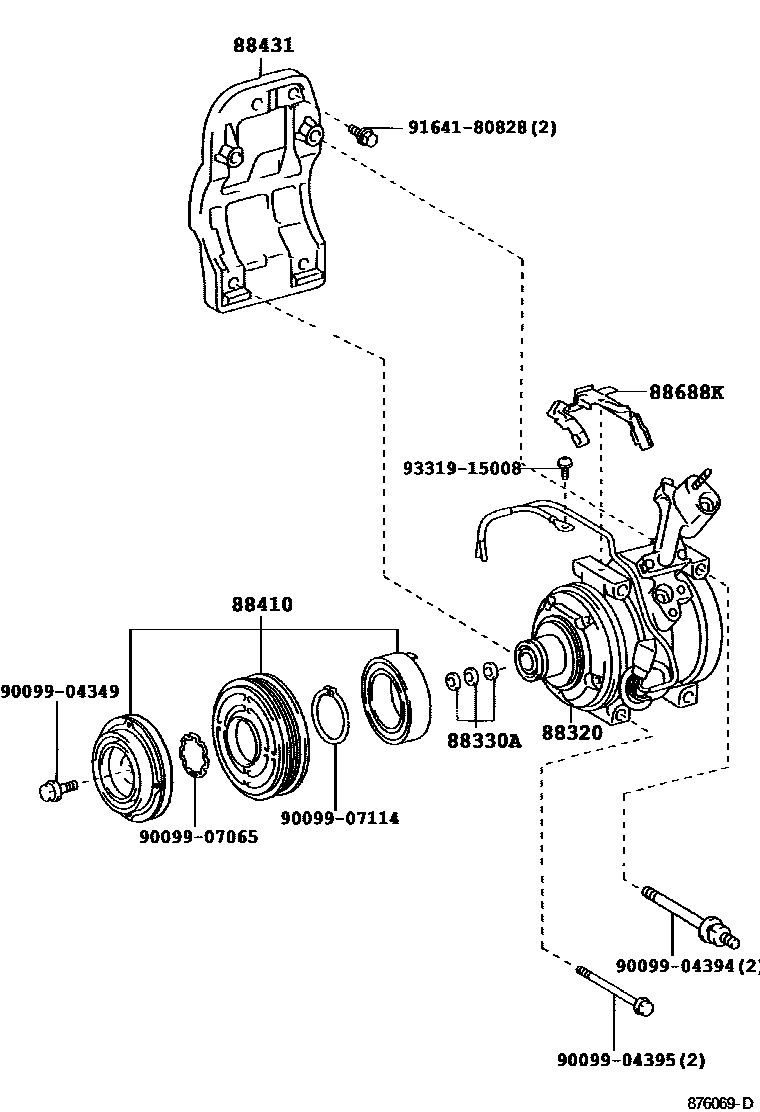

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88320COMPRESSOR ASSY, COOLER

main88320-48060iMCU3#..ARL,EUR200302-200601

main88320-48090iMCU38..GCC200302-200601

main88320-48110iGSU35..GCC200601-200812

main88320-48120iGSU35..ARL,EUR200601-200812

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iMCU3#200302-200601

88410CLUTCH ASSY, MAGNET

main88410-33150iGSU35200601-200812

main88410-48040iMCU38..GCC200302-200508

main88410-48050iMCU3#..ARL,EUR200302-200601

main88410-48060iMCU38..GCC200508-200601

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-07021iMCU3#200302-200601

(L)

main88431-33041iMCU3#200302-200601

(J)

88688KBRACKET, COOLER COMPRESSOR

main88688-03030iMCU3#..ARL,EUR200302-200305

main88688-07040iMCU38..GCC200302-200601

main88688-33460iGSU35..GCC200601-200805

main88688-48110iMCU3#..ARL,EUR200305-200601

main88688-48250iGSU35..GCC200805-200812

9009904349

main90099-04349

9009904394

main90099-04394

9009904395

main90099-04395

9009907065

main90099-07065

9009907114

main90099-07114

9164180828

main91641-80828

9331915008

main93319-15008

12 parts on this diagram · 3 diagrams in section
