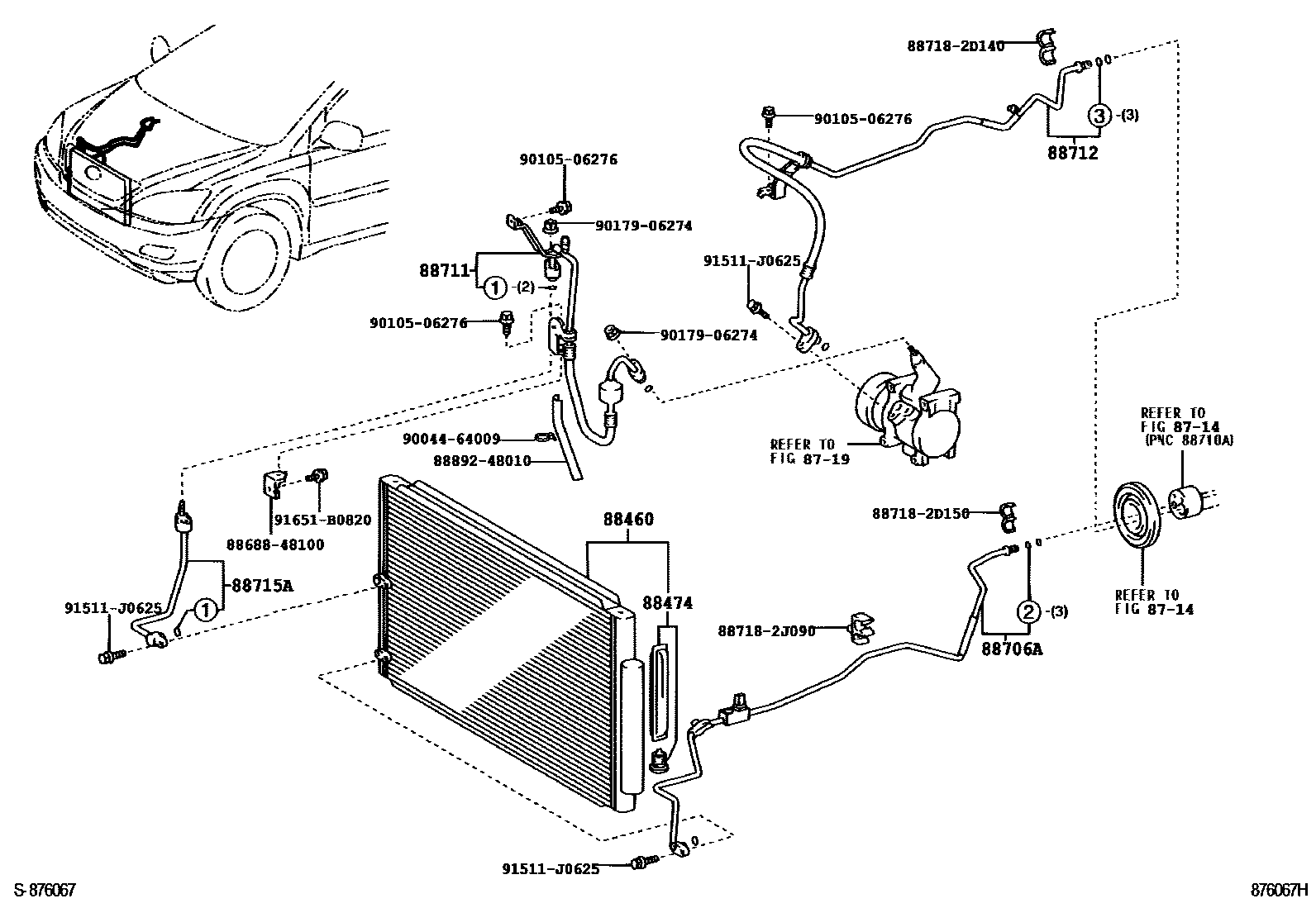

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1O-RING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88460CONDENSER ASSY, COOLER

main88460-48040iMCU35200302-200601

main88460-48050iMCU38200302-200601

main88460-48080iGSU35..EUR200601-200609

main88460-48081iGSU35..EUR200610-200812

main88460-48090iGSU35..ARL,GCC200601-200609

main88460-48091iGSU35..ARL,GCC200610-200812

88474DRYER, COOLER

main88474-17010iMCU3#200302-200601

88706ATUBE SUB-ASSY, LIQUID, A

main88710-48150iMCU3#..LHD200302-200305

main88710-48151iMCU3#..LHD200305-200601

main88710-48160iMCU3#..RHD200302-200601

main88710-48260iGSU35..LHD200601-200812

main88710-48280iGSU35..RHD200601-200812

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-48080iMCU3#200302-200310

main88703-48081iMCU3#200310-200401

main88703-48082iMCU38..GCC200401-200508

main88703-48120iGSU35..ARL,EUR200601-200812

main88703-48130iGSU35..GCC200601-200812

main88703-48140iMCU38..GCC200508-200601

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-48040iMCU3#..LHD200302-200601

main88704-48090iGSU35..LHD..EUR200601-200706

main88704-48091iGSU35..LHD..EUR200707-200812

main88704-48100iGSU35..GCC200601-200706

main88704-48101iGSU35..GCC200707-200812

main88704-48110iGSU35..RHD200601-200706

main88704-48111iGSU35..RHD200707-200812

main88712-48110iMCU3#..RHD200302-200601

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88705-48040iMCU3#200302-200601

main88705-48090iGSU35200601-200812

8868848100BRACKET, COOLER DIAPHRAGM

main88688-48100

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

887182J090PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2J090

8889248010BRACKET, COOLER EVAPORATOR MOUNTING

main88892-48010

9004464009

main90044-64009

9010506276

main90105-06276

9017906274

main90179-06274

91511J0625

main91511-J0625

91651B0820

main91651-B0820

18 parts on this diagram · 6 diagrams in section
