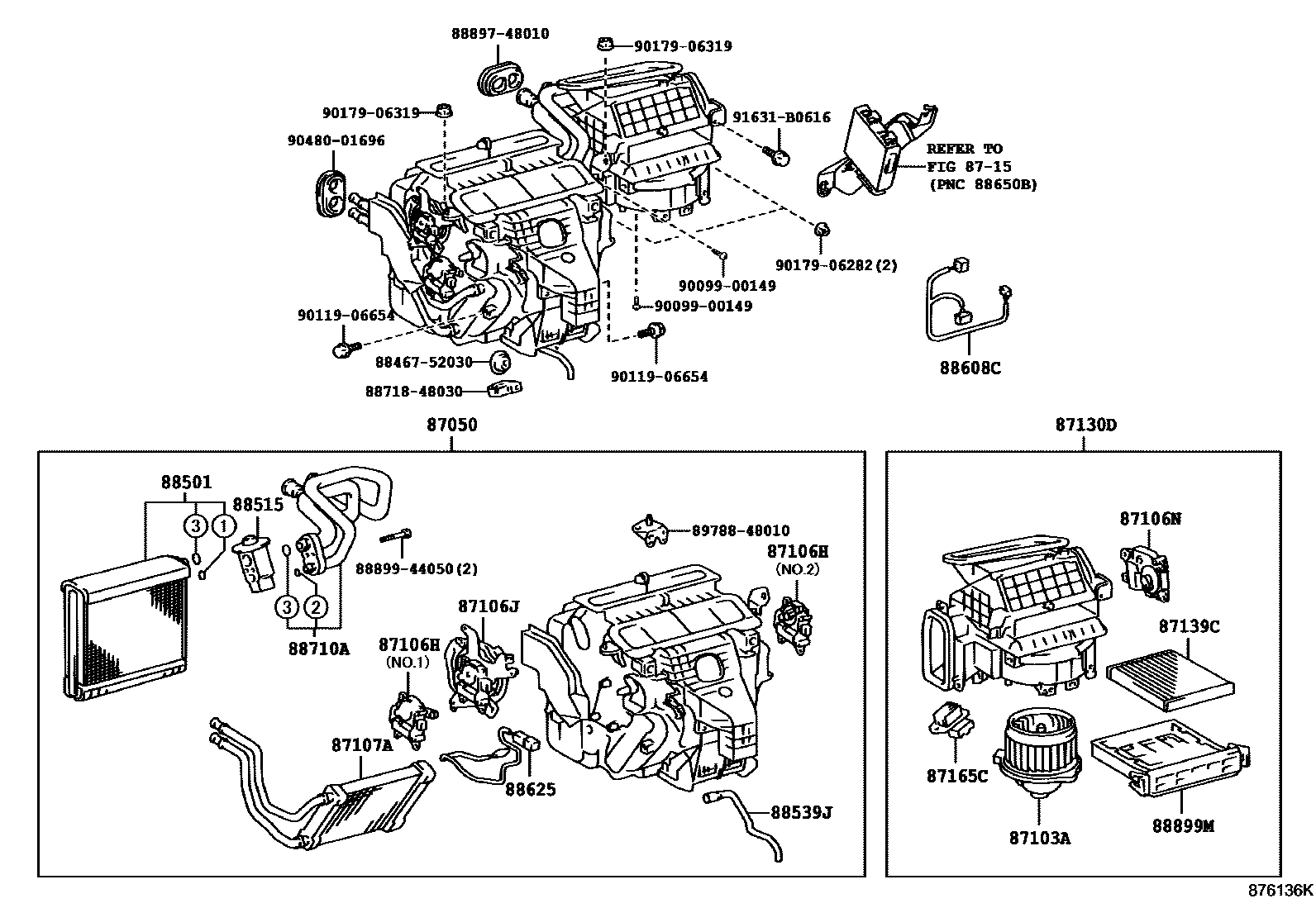

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1 0005 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-48080iMCU3#..RHD200302-200308

main87050-48081iMCU3#..RHD200308-200408

main87050-48090iMCU35..LHD200302-200308

main87050-48091iMCU35..LHD200308-200601

main87050-48100iMCU38..GCC200302-200308

main87050-48101iMCU38..GCC200308-200601

main87050-48190iMCU3#..RHD200408-200601

main87050-48200iGSU35..GCC200601-200801

main87050-48201iGSU35..GCC200802-200812

main87050-48210iGSU35..LHD..EUR200601-200801

main87050-48211iGSU35..LHD..EUR200802-200812

main87050-48230iGSU35..RHD200601-200702

main87050-48231iGSU35..RHD200703-200801

main87050-48232iGSU35..RHD200802-200812

87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN

main87103-48030iMCU3#..RHD200302-200408

main87103-48040iMCU3#..LHD200302-200601

main87103-48050iMCU3#..RHD200408-200601

main87103-48060iGSU35..LHD200601-200812

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-48050iMCU3#200302-200312

NO.1

main87106-48100iMCU3#200302-200312

NO.2

main87106-48150iGSU35200601-200812

NO.1

main87106-48160iGSU35200601-200812

NO.2

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-48060iMCU3#..RHD200302-200407

main87106-48070iMCU3#..LHD200302-200601

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-48080iMCU3#..RHD200302-200601

main87106-48090iMCU3#..LHD200302-200601

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-48050iGSU35..RHD200601-200812

main87107-48060iGSU35..LHD200601-200812

87130DBLOWER ASSY

main87130-48070iMCU3#..RHD200302-200408

main87130-48080iMCU3#..LHD200302-200601

main87130-48100iGSU35..RHD200601-200812

main87130-48140iGSU35..LHD200601-200812

87139CFILTER, CLEAN AIR

main87139-33010iMCU3#200302-200601

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87165CCONTROL, BLOWER MOTOR

main87165-13010iMCU3#200302-200601

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-48050iMCU3#..RHD200408-200601

main88501-48060iMCU35..LHD200302-200308

main88501-48070iMCU38..GCC200302-200308

main88501-48130iMCU35..LHD200308-200601

main88501-48150iMCU38..GCC200308-200601

main88501-48240iGSU35..RHD200601-200802

main88501-48241iGSU35..RHD200802-200812

main88501-48250iGSU35..LHD..EUR200601-200802

main88501-48251iGSU35..LHD..EUR200802-200812

main88501-48260iGSU35..GCC200601-200802

main88501-48261iGSU35..GCC200802-200812

88515VALVE, COOLER EXPANSION

main88515-21040iMCU3#..RHD200308-200407

main88515-28180iGSU35200601-200812

main88515-35020iMCU3#200302-200305

main88515-60150iMCU3#200306-200308

88539JHOSE, DRAIN COOLER

main88539-48030iMCU35..LHD200302-200601

88608CHARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2

main88608-48060iMCU3#..LHD; MCU3#..RHD200302-200308

main88608-48110iMCU3#..RHD200408-200601

88625THERMISTOR, COOLER, NO.1

main88625-48050iGSU35200601-200812

main88625-48060iMCU3#..RHD200308-200407

88710ATUBE ASSY, AIR CONDITIONER

main88710-48120iGSU35..RHD200601-200812

main88710-48130iMCU3#..LHD200302-200402

main88710-48131iMCU3#..LHD200403-200601

main88710-48270iGSU35..LHD200601-200812

88899MPLATE, COVER(FOR AIR FILTER)

main88899-41010iMCU3#200302-200601

8846752030CUSHION, COOLER CONDENSER, NO.1

main88467-52030

8871848030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48030

8889748010VALVE, COOLER MAGNET

main88897-48010

8889944050COVER, EVAPORATOR

main88899-44050

8978848010BRACKET, TRANSPONDER KEY

main89788-48010

9009900149

main90099-00149

9011906654

main90119-06654

9017906282

main90179-06282

9017906319

main90179-06319

9048001696

main90480-01696

91631B0616

main91631-B0616

28 parts on this diagram · 5 diagrams in section
