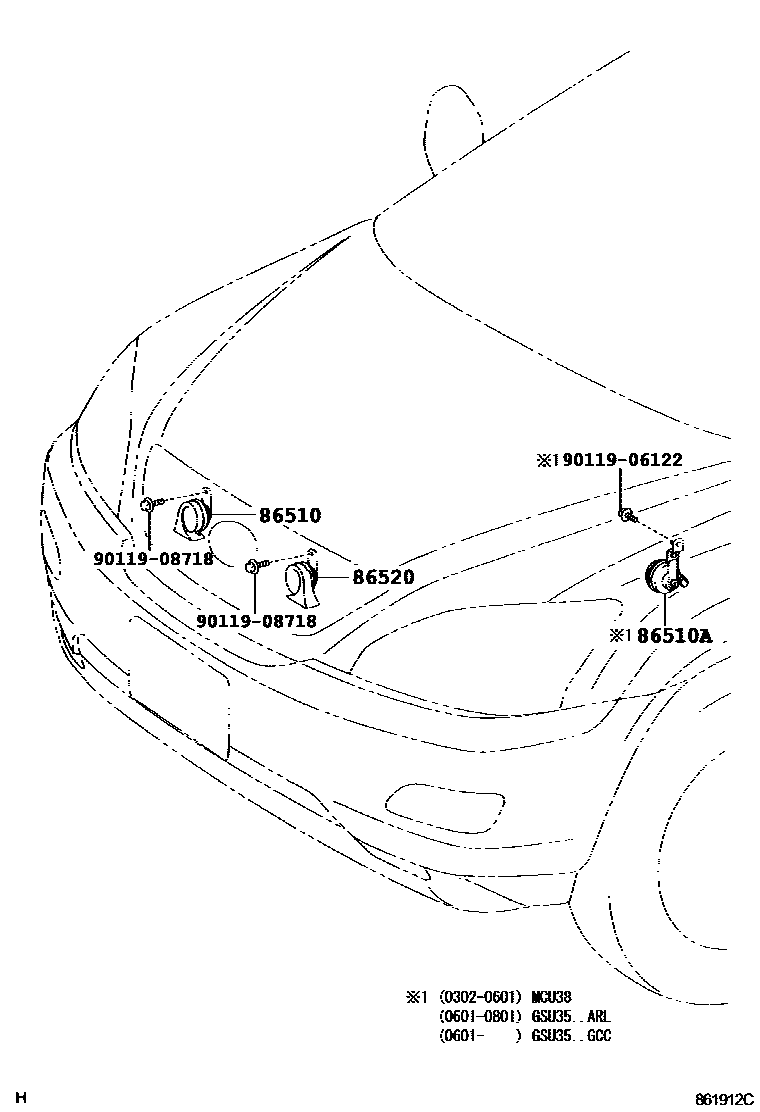

HORN

86510HORN ASSY, HIGH PITCHED

main86510-48050iMCU3#200302-200601

main86510-30690iGSU35..LHD..EUR200601-200610

CHINA SPEC

main86510-30691iGSU35..LHD..EUR200611-200812

CHINA SPEC

main86510-48080iMCU35..LHD200310-200601

CHINA SPEC

86510AHORN ASSY, SECURITY

main86510-48060iGSU35..ARL200601-200801

86520HORN ASSY, LOW PITCHED

main86520-48030iMCU3#200302-200601

main86520-30600iGSU35..LHD..EUR200601-200610

CHINA SPEC

main86520-30601iGSU35..LHD..EUR200611-200812

CHINA SPEC

main86520-48050iMCU35..LHD200310-200601

CHINA SPEC

9011906122

main90119-06122

9011908718

main90119-08718

5 parts on this diagram · 1 diagram in section
