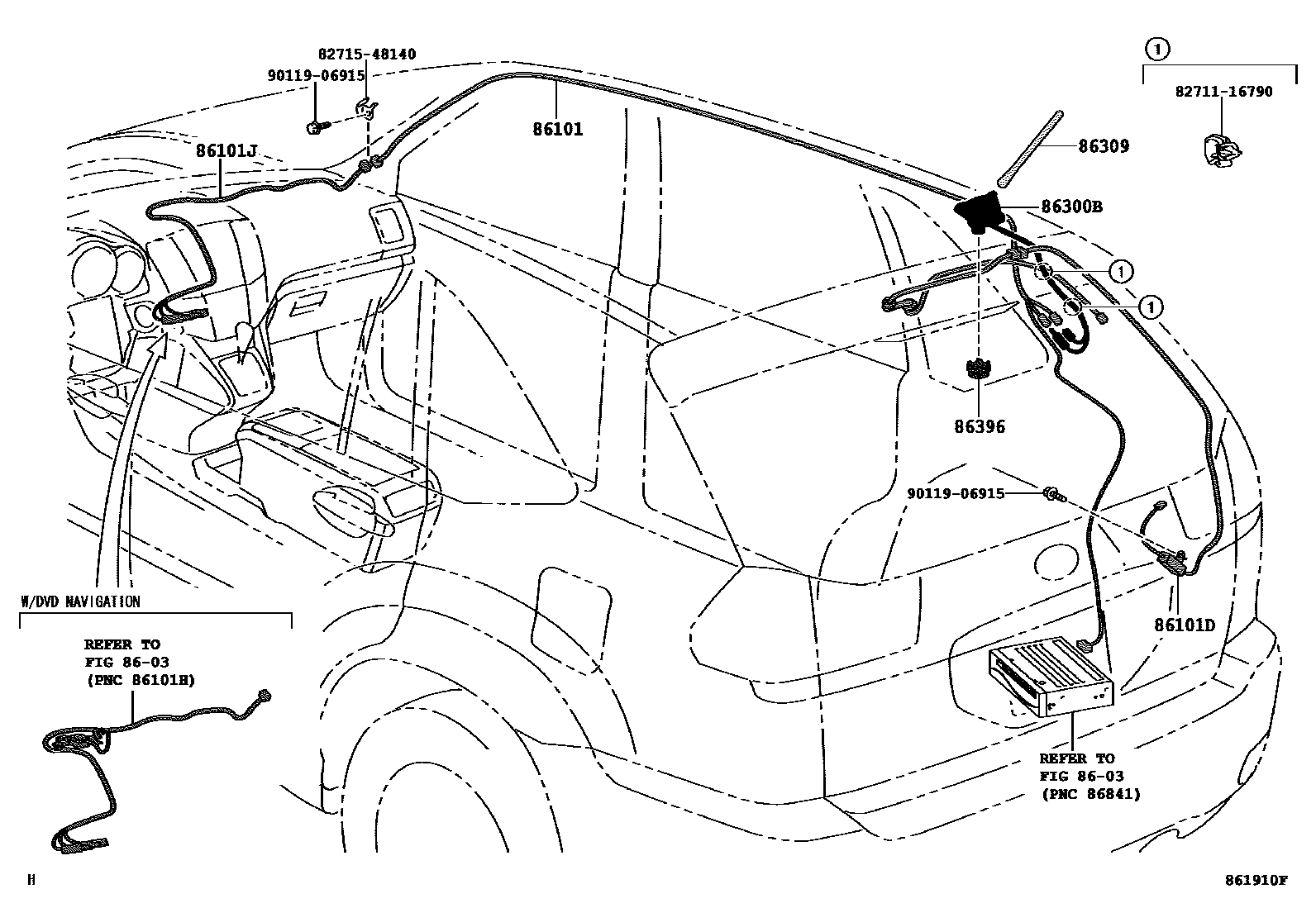

ANTENNA
8603NAVIGATION & FRONT MONITOR DISPLAY
86101CORD SUB-ASSY, ANTENNA
W/DVD NAVIGATION
SUN ROOF & MOON ROOF-WITH(TILT & SLIDE MOON ROOF); TAIWAN SPEC&SUN ROOF & MOON ROOF-WITH(TILT & SLIDE MOON ROOF); THAILAND SPEC&SUN ROOF & MOON ROOF-WITH(TILT & SLIDE MOON ROOF)
W/MOON ROOF&W/DVD NAVIGATION
BRUNEI SPEC&W/MULTI PANEL GLASS MOON ROOF; HONG KONG SPEC&W/MULTI PANEL GLASS MOON ROOF; SINGAPORE SPEC&W/MULTI PANEL GLASS MOON ROOF; THAILAND SPEC&W/MULTI PANEL GLASS MOON ROOF
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
SUN ROOF & MOON ROOF-WITH(TILT & SLIDE MOON ROOF)&EMV & NAVIGATION SYSTEM-W(05EMV& 05NAVIGATION); TAIWAN SPEC&SUN ROOF & MOON ROOF-WITH(TILT & SLIDE MOON ROOF)&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
TAIWAN SPEC&SUN ROOF & MOON ROOF-WITH(MULTI PANEL GLASS MOON ROOF)&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
86101DCORD SUB-ASSY, ANTENNA, NO.3
86101JCORD SUB-ASSY, ANTENNA, NO.2
86300BANTENNA ASSY, AMPLIFIER, NO.1
TAIWAN SPEC&SUN ROOF & MOON ROOF-WITH(MULTI PANEL GLASS MOON ROOF); TAIWAN SPEC&SUN ROOF & MOON ROOF-WITH(MULTI PANEL GLASS MOON ROOF)&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION); TAIWAN SPEC&SUN ROOF & MOON ROOF-WITH(TILT & SLIDE MOON ROOF); TAIWAN SPEC&SUN ROOF & MOON ROOF-WITH(TILT & SLIDE MOON ROOF)&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION); THAILAND SPEC&SUN ROOF & MOON ROOF-WITH(MULTI PANEL GLASS MOON ROOF); THAILAND SPEC&SUN ROOF & MOON ROOF-WITH(TILT & SLIDE MOON ROOF)
86309POLE SUB-ASSY, PILLAR ANTENNA
86396NUT, ANTENNA
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
8271548140BRACKET,WIRING HARNESS CLAMP
main82715-48140
9011906915
main90119-06915
10 parts on this diagram · 2 diagrams in section
