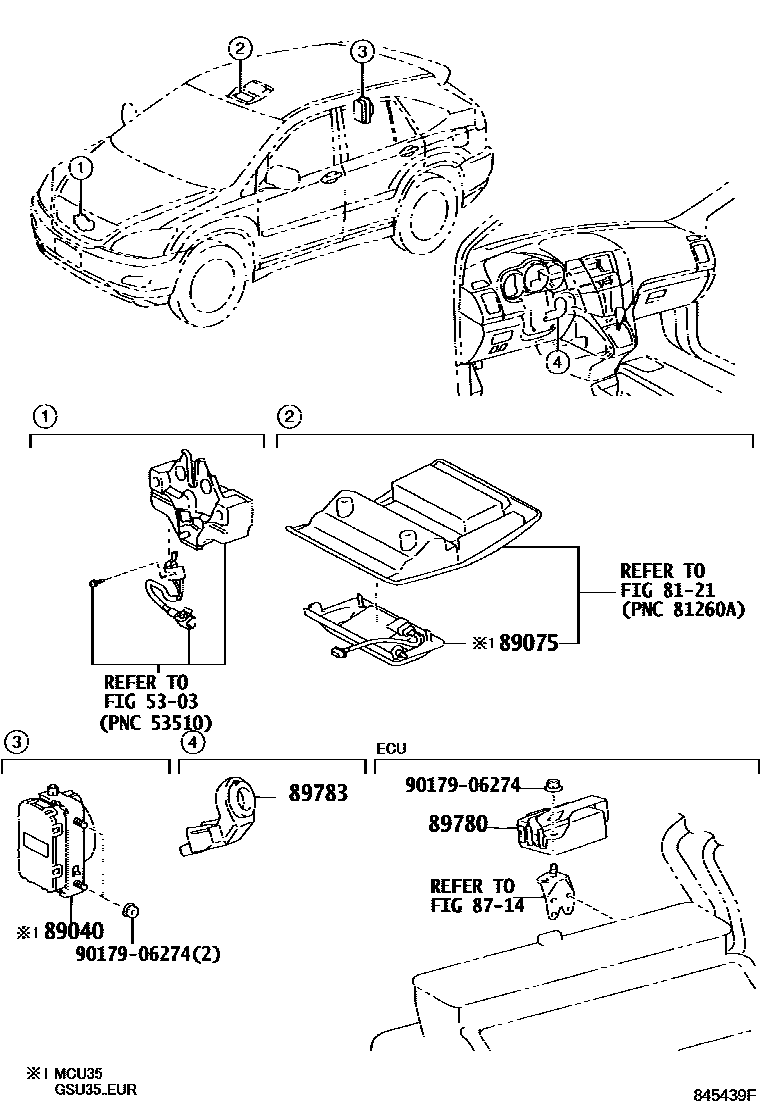

ANTI-THEFT DEVICE

0001 1 0002 1

5303HOOD LOCK & HINGE

→ Go to FIG 53-03

8121INTERIOR LAMP

→ Go to FIG 81-21

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

89040SIREN ASSY, THEFT WARNING

main89040-48020iMCU35200302-200601

89075SENSOR SUB-ASSY, THEFT WARNING

main89075-48010-A0iMCU35200302-200601

IVORY,TRIM0#

main89075-48010-B0iGSU35..ARL200801-200812

LT.GRAY,TRIM11,12,2#

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-48010iMCU3#..RHD200302-200601

main89780-48011iGSU35..RHD200701-200812

main89780-48020iGSU35..LHD200601-200701

main89780-48021iGSU35..LHD200701-200812

89783AMPLIFIER, TRANSPONDER KEY

main89783-35030iMCU3#200302-200601

main89783-48050iGSU35200801-200812

main89783-60110iGSU35200601-200801

9017906274

main90179-06274

8 parts on this diagram · 2 diagrams in section
