SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK 0007 1COWL 0008 1COWL 0009 1INSTRUMENT PANEL1/2 0010 1INSTRUMENT PANEL1/2 0011 1INSTRUMENT PANEL2/2 0012 1IGNITION & COMBINATION SW 0013 1IGNITION & CONBINATION SW 0014 1DOOR,ROOF,FLOOR,SEAT & LUGGAG

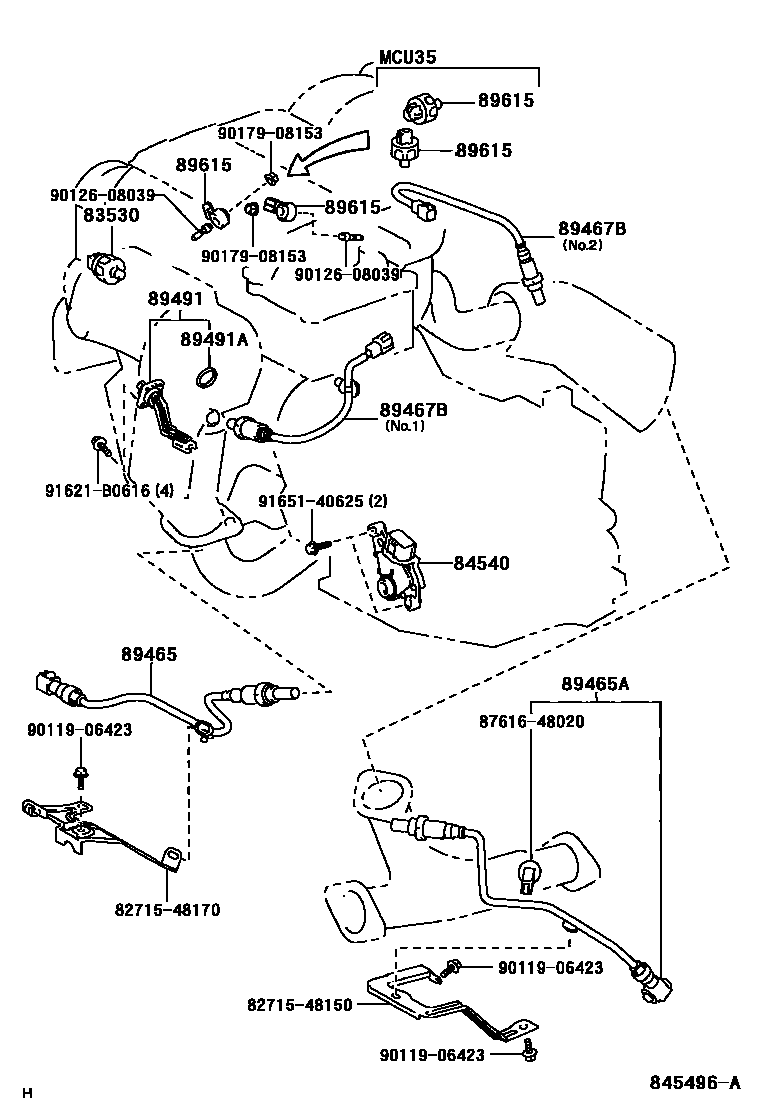

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iMCU3#200304-200601

(L)

main83530-28020iMCU3#200302-200601

(J),DENSO

main83530-28020iGSU35200601-200812

DENSO

main83530-60020iGSU35200302-200812

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-48010iMCU3#200302-200812

89465SENSOR, OXYGEN

main89465-48110iGSU35200601-200812

main89465-48170iMCU3#200302-200601

89465ASENSOR, OXYGEN NO.2

main89465-48180iMCU3#200302-200601

main89465-68050iGSU35200601-200812

89467BSENSOR, AIR FUEL RATIO

main89467-48050iMCU3#200302-200601

NO.1

main89467-48060iMCU3#200302-200601

NO.2

main89467-48100iGSU35200601-200707

main89467-48130iGSU35200708-200812

89491SENSOR, ENGINE OIL LEVEL

main89491-33030iMCU35200302-200601

main89491-48010iGSU35..EUR200601-200812

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iGSU35..EUR200601-200812

main90430-27001iMCU35200302-200601

89615SENSOR, KNOCK CONTROL

main89615-12090iMCU35200302-200601

main89615-20090iMCU38200302-200812

8271548150BRACKET,WIRING HARNESS CLAMP

main82715-48150

8271548170BRACKET,WIRING HARNESS CLAMP

main82715-48170

8761648020CLAMP, COOLING UNIT CASE

main87616-48020

9011906423

main90119-06423

9012608039

main90126-08039

9017908153

main90179-08153

91621B0616

main91621-B0616

9165140625

main91651-40625

16 parts on this diagram · 14 diagrams in section
