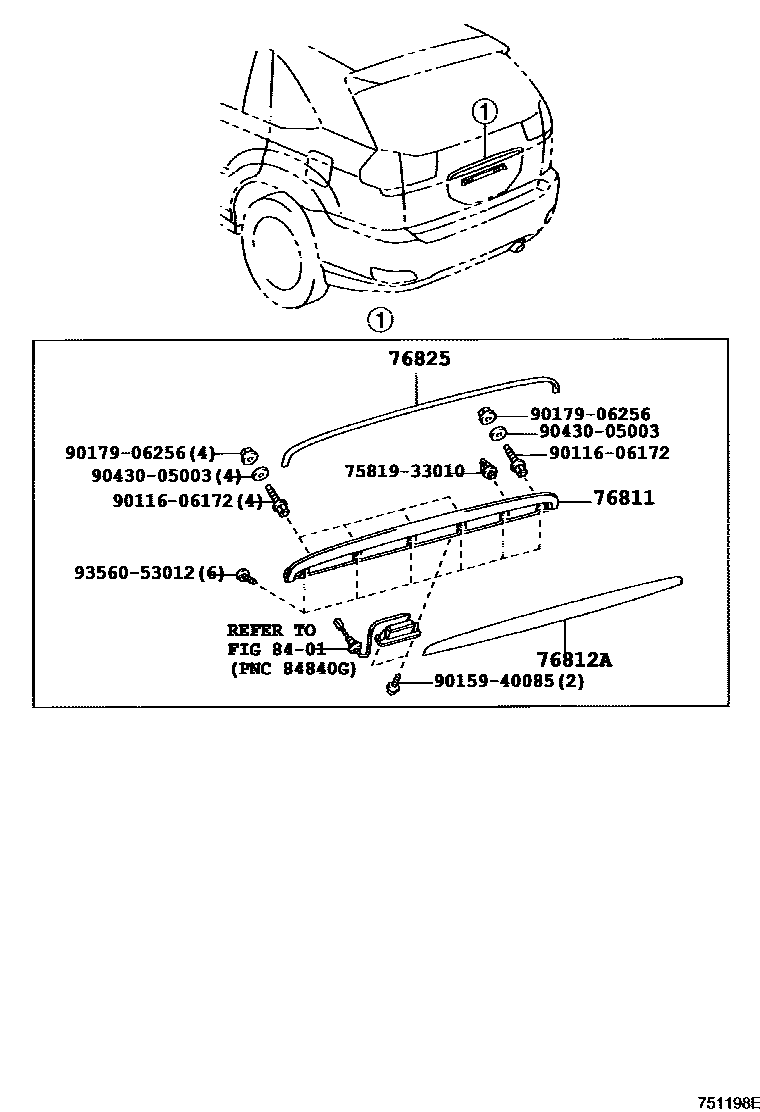

REAR MOULDING
76811GARNISH, BACK DOOR, OUTSIDE
W/DVD NAVIGATION,WHITE PEARL CS.,062
W/DVD NAVIGATION,SILVER ME.,1C0
W/DVD NAVIGATION,DK.GRAY MC.,1E0
W/DVD NAVIGATION,BLACK,202
W/DVD NAVIGATION,BEIGE ME.,4R4
W/DVD NAVIGATION,LT.OLIVE M.M.,6T1
W/DVD NAVIGATION,DK.GREEN MC.,6T3
W/DVD NAVIGATION,LT.BLUE ME.,8R6
W/DVD NAVIGATION,DK.BLUE M.M.,8R7
W/DVD NAVIGATION,LT.BLUE M.M.,8R8
MOSCOW SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),WHITE PEARL CS.,062
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),SILVER ME.,1C0
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),DK.GRAY MC.,1E0
MOSCOW SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),SILVER ME.,1F7
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),DK.GRAY MC.,1G0
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),BLACK,202
MOSCOW SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),BLACK,212
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),RED MC.CS.,3R1
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),BEIGE ME.,4R4
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),COPPER BROWN MC.,4S6
MOSCOW SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),BEIGE ME.,4T1
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),SABLE M.M.,4T5
MOSCOW SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),LT.OLIVE M.M.,6T1
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),DK.GREEN MC.,6T3
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),MD.GREEN M.M.,6U3
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),LT.BLUE ME.,8R6
MOSCOW SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),DK.BLUE M.M.,8R7
EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION),LT.BLUE M.M.,8R8
76812AGARNISH, BACK DOOR, OUTSIDE NO.2
MOSCOW SPEC; MOSCOW SPEC&EMV & NAVIGATION SYSTEM-W(05EMV & 05NAVIGATION)
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
8401SWITCH & RELAY & COMPUTER
7581933010CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
main75819-33010
9011606172
main90116-06172
9015940085
main90159-40085
9017906256
main90179-06256
9043005003
main90430-05003
9356053012
main93560-53012
10 parts on this diagram · 1 diagram in section
