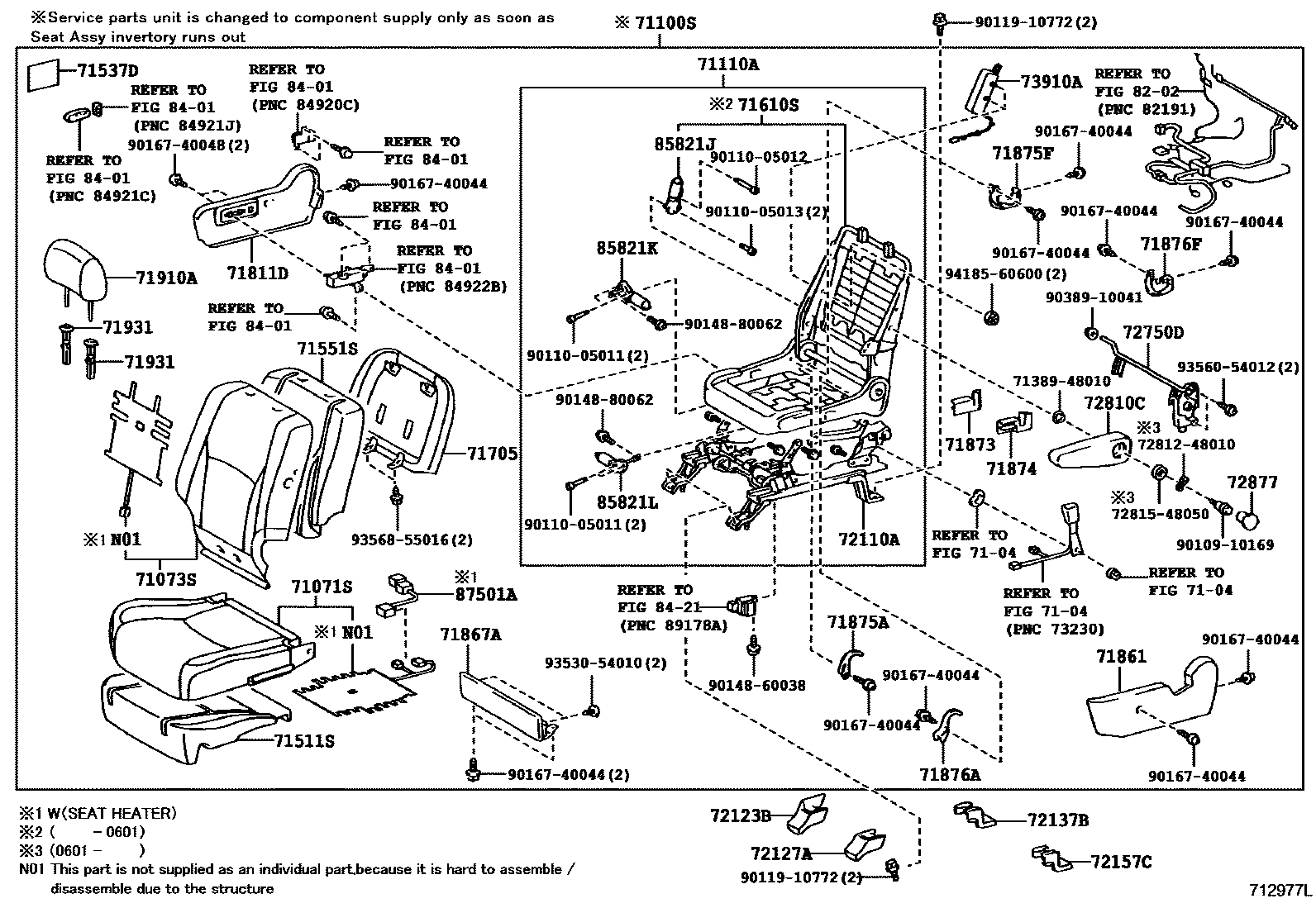

FRONT SEAT & SEAT TRACK

7104

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-48240-C0i200302-200601

BLACK,TRIM2#

sub71071-48242

main71071-48260-A0i200302-200408

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#

main71071-48260-B0i200302-200511

SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#

main71071-48260-C0i200302-200511

SEAT COVER MATERIAL-LEATHER&W/POWER SEST ADJUSTER,BLACK,TRIM2#

main71071-48261-A0supersedes 71071-48240-A0i200511-200601

SEAT COVER MATERIAL-LEATHER&W/POWER SEST ADJUSTER,IVORY,TRIM0#

sub71071-48263

main71071-48261-B0i200511-200601

CHINA SPEC&SEAT COVER MATERIAL-LEATHER&W/POWER SEST ADJUSTER,LT.GRAY,TRIM1#

sub71071-48263

main71071-48261-C0i200511-200601

CHINA SPEC&SEAT COVER MATERIAL-LEATHER&W/POWER SEST ADJUSTER,BLACK,TRIM2#

sub71071-48263

main71071-48270-A0i200302-200511

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,IVORY,TRIM0#

main71071-48270-B0i200304-200511

CHINA SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,LT.GRAY,TRIM1#

main71071-48270-C0i200302-200511

SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,BLACK,TRIM2#

main71071-48271-A0i200511-200601

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,IVORY,TRIM0#

sub71071-48273

main71071-48271-B0i200601-200812

CHINA SPEC&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONTSEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LT.GRAY,TRIM1#

sub71071-48273

main71071-48271-C0i200601-200812

CHINA SPEC&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONTSEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#

sub71071-48273

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-48360-C0i200302-200601

BLACK,TRIM2#

sub71073-48361

sub71073-48362

main71073-48390-A0supersedes 71073-48360-A0i200601-200812

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#

main71073-48390-B0i200302-200601

SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#

main71073-48390-C0i200601-200812

CHINA SPEC&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#

main71073-48400-A0i200601-200812

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#

main71073-48400-B0i200601-200812

CHINA SPEC&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONTSEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LT.GRAY,TRIM1#

main71073-48400-C0i200601-200812

CHINA SPEC&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONTSEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#

71100SSEAT ASSY, FRONT RH

main71100-48680-A2i200302-200307

IVORY,TRIM0#

sub71100-48683

main71100-48680-C3supersedes 71100-48670-C3i200302-200307

LUXURY PACKAGE&W/POWER SEST ADJUSTER,BLACK,TRIM2#

sub71100-48683

main71100-48690-A2supersedes 71100-48680-A2i200302-200408

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/POWER SEST ADJUSTER,IVORY,TRIM0#

main71100-48690-B3i200302-200408

SEAT COVER MATERIAL-LEATHER&W/POWER SEST ADJUSTER,LT.GRAY,TRIM1#

main71100-48690-C3supersedes 71100-48680-C3i200302-200408

SEAT COVER MATERIAL-LEATHER&W/POWER SEST ADJUSTER,BLACK,TRIM2#

main71100-48691-A0supersedes 71100-48681-A0i200408-200601

SEAT COVER MATERIAL-LEATHER&W/POWER SEST ADJUSTER,IVORY,TRIM0#

sub71100-48692

main71100-48691-A2supersedes 71100-48681-A2i200603-200812

SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#

sub71100-48692

main71100-48691-B0i200408-200601

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/POWER SEST ADJUSTER,LT. GRAY,TRIM1#

sub71100-48692

main71100-48691-B2i200603-200812

SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#

sub71100-48692

main71100-48691-C0supersedes 71100-48671-C0i200408-200601

CHINA SPEC&SEAT COVER MATERIAL-LEATHER&W/POWER SEST ADJUSTER,BLACK,TRIM2#

sub71100-48692

main71100-48691-C2supersedes 71100-48681-C2i200701-200812

TAIWAN SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-D:8WAYPOWER P:8WAY POWER,BLACK,TRIM2#

sub71100-48692

main71100-48700-A2i200302-200408

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,IVORY,TRIM0#

main71100-48700-B3i200302-200408

SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,LT.GRAY,TRIM1#

main71100-48700-C3supersedes 71100-48670-C3i200302-200408

SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,BLACK,TRIM2#

main71100-48701-A0i200408-200601

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,IVORY,TRIM0#

sub71100-48702

main71100-48701-A2i200603-200812

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#

sub71100-48702

main71100-48701-B0i200408-200601

CHINA SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,LT. GRAY,TRIM1#

sub71100-48702

main71100-48701-B2i200603-200812

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LT.GRAY,TRIM1#

sub71100-48702

main71100-48701-C0supersedes 71100-48671-C0i200408-200601

CHINA SPEC&SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,BLACK,TRIM2#

sub71100-48702

main71100-48701-C2supersedes 71100-48671-C2i200603-200812

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#

sub71100-48702

main71100-48720-A2supersedes 71100-48710-A2i200302-200307

LUXURY PACKAGE,IVORY,TRIM0#

sub71100-48724

main71100-48720-C3supersedes 71100-48710-C3i200302-200307

LUXURY PACKAGE&W/POWER SEST ADJUSTER,BLACK,TRIM2#

sub71100-48724

main71100-48721-A0supersedes 71100-48711-A0i200307-200408

LUXURY PACKAGE,IVORY,TRIM0#

sub71100-4D510

main71100-48721-C0i200307-200408

LUXURY PACKAGE&W/POWER SEST ADJUSTER,BLACK,TRIM2#

sub71100-4D510

main71100-48730-A2i200302-200307

SEAT COVER MATERIAL-LEATHER&W/POWER SEST ADJUSTER,IVORY,TRIM0#

main71100-48730-B3i200302-200307

SEAT COVER MATERIAL-LEATHER&W/POWER SEST ADJUSTER,LT.GRAY,TRIM1#

main71100-48730-C3i200302-200307

SEAT COVER MATERIAL-LEATHER&W/POWER SEST ADJUSTER,BLACK,TRIM2#

main71100-48731-A0i200307-200408

SEAT COVER MATERIAL-LEATHER&W/POWER SEST ADJUSTER,IVORY,TRIM0#

main71100-48731-B0i200307-200408

SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#

main71100-48731-C0supersedes 71100-48711-C0i200307-200408

SEAT COVER MATERIAL-LEATHER,BALCK,TRIM2#

main71100-48740-A2supersedes 71100-48710-A2i200302-200307

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/POWER SEST ADJUSTER,IVORY,TRIM0#

main71100-48740-B3i200302-200307

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#

main71100-48740-C3i200302-200307

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/POWER SEST ADJUSTER,BLACK,TRIM2#

main71100-48741-A0supersedes 71100-48711-A0i200307-200408

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/POWER SEST ADJUSTER,IVORY,TRIM0#

main71100-48741-B0i200307-200408

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#

main71100-48741-C0supersedes 71100-48711-C0i200307-200408

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/POWER SEST ADJUSTER,BLACK,TRIM2#

main71100-48742-A0supersedes 71100-48722-A1i200601-200603

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAYPOWER,IVORY,TRIM0#

sub71100-48743

main71100-48742-A1supersedes 71100-48722-A1i200603-200812

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAYPOWER,IVORY,TRIM0#

sub71100-48743

main71100-48742-B0i200408-200601

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/POWER SEST ADJUSTER,LT. GRAY,TRIM1#

sub71100-48743

main71100-48742-B1i200603-200812

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAYPOWER,LT.GRAY,TRIM1#

sub71100-48743

main71100-48742-C0supersedes 71100-48722-C0i200408-200601

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/POWER SEST ADJUSTER,BLACK,TRIM2#

sub71100-48743

main71100-48742-C1supersedes 71100-48722-C1i200603-200812

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAYPOWER,BLACK,TRIM2#

sub71100-48743

main71100-48750-A2i200302-200307

SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,IVORY,TRIM0#

main71100-48750-B3i200302-200307

SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,LT.GRAY,TRIM1#

main71100-48750-C3i200302-200307

SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,BLACK,TRIM2#

main71100-48751-A0i200307-200408

SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,IVORY,TRIM0#

main71100-48751-B0i200307-200408

SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,LT.GRAY,TRIM1#

main71100-48751-C0supersedes 71100-48711-C0i200307-200408

SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,BLACK,TRIM2#

main71100-48760-A2i200302-200307

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,IVORY,TRIM0#

main71100-48760-B3i200302-200307

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,LT.GRAY,TRIM1#

main71100-48760-C3i200302-200307

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,BLACK,TRIM2#

main71100-48761-A0i200307-200408

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,IVORY,TRIM0#

main71100-48761-B0i200307-200408

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,LT.GRAY,TRIM1#

main71100-48761-C0supersedes 71100-48711-C0i200307-200408

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,BLACK,TRIM2#

main71100-48762-A0i200601-200603

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#

sub71100-48763

main71100-48762-A1i200603-200812

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#

sub71100-48763

main71100-48762-B0i200408-200601

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,LT.GRAY,TRIM1#

sub71100-48763

main71100-48762-B1i200701-200812

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#

sub71100-48763

main71100-48762-C0supersedes 71100-48D31-C0i200408-200601

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,BLACK,TRIM2#

sub71100-48763

main71100-48762-C1supersedes 71100-48D31-C1i200603-200812

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#

sub71100-48763

main71100-48D11-A0i200601-200603

SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#

sub71100-48D12

main71100-48D11-A1i200603-200812

SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#

sub71100-48D12

main71100-48D11-B0i200601-200603

SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LT. GRAY,TRIM1#

sub71100-48D12

main71100-48D11-B1i200603-200812

SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LT.GRAY,TRIM1#

sub71100-48D12

main71100-48D11-C0supersedes 71100-48D31-C1i200601-200603

SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#

sub71100-48D12

main71100-48D11-C1supersedes 71100-48D31-C1i200603-200812

SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#

sub71100-48D12

main71100-48D21-A0i200601-200603

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#

sub71100-48D22

main71100-48D21-A1i200603-200812

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#

sub71100-48D22

main71100-48D21-B0i200601-200603

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LT. GRAY,TRIM1#

sub71100-48D22

main71100-48D21-B1i200603-200812

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LT.GRAY,TRIM1#

sub71100-48D22

main71100-48D21-C0supersedes 71100-48D31-C1i200601-200603

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#

sub71100-48D22

main71100-48D21-C1supersedes 71100-48D31-C1i200603-200812

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#

sub71100-48D22

main71100-48F90-C0supersedes 71100-48671-C2i200601-200812

CHINA SPEC&LUXURY PACKAGE,BLACK,TRIM2#

sub71100-48F92

main71100-48G00-C0supersedes 71100-48671-C2i200601-200812

CHINA SPEC&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#

sub71100-48G02

main71100-48G10-A0i200601-200812

CHINA SPEC&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#

sub71100-48G12

main71100-48G10-B0i200601-200812

CHINA SPEC&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LT.GRAY,TRIM1#

sub71100-48G12

main71100-48G10-C0supersedes 71100-48671-C2i200601-200812

CHINA SPEC&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#

sub71100-48G12

main71100-48G20-A0i200601-200812

CHINA SPEC&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONTSEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#

sub71100-48G22

main71100-48G20-B0i200601-200812

CHINA SPEC&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONTSEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LT.GRAY,TRIM1#

sub71100-48G22

main71100-48G20-C0supersedes 71100-48671-C2i200601-200812

CHINA SPEC&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONTSEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#

sub71100-48G22

71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH

main71110-48020supersedes 71110-48050i200302-200601

W/POWER SEST ADJUSTER

main71110-48030i200302-200307

main71110-48031i200307-200601

sub71110-48032

sub73214-75010

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-48060i200302-200601

main71511-48070i200601-200812

71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH

main71537-48030i200601-200812

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-48060i200601-200812

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-48030i200302-200601

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-48060-A2supersedes 71705-48060-A3i200302-200601

IVORY,TRIM0#

main71705-48060-A5i200603-200812

IVORY,TRIM0#

main71705-48060-B5i200302-200601

LT.GRAY,TRIM1#

main71705-48060-B6i200603-200812

LT.GRAY,TRIM1#

main71705-48060-C6i200601-200603

BLACK,TRIM2#

main71705-48060-C8i200603-200812

BLACK,TRIM2#

main71705-48060-C5supersedes 71705-48060-C6i200601-200603

CHINA SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-48100-A0i200302-200601

SEAT COVER MATERIAL-LEATHER&W/POWER SEST ADJUSTER,IVORY,TRIM0#

main71811-48100-B0i200302-200601

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/POWER SEST ADJUSTER,LT.GRAY,TRIM1#

main71811-48100-C0supersedes 71811-48110-C0i200302-200601

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,BLACK,TRIM2#

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-48040-A0i200601-200812

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#

main71861-48040-B0i200302-200601

LT.GRAY,TRIM1#

main71861-48040-C0i200302-200601

BLACK,TRIM2#

71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

main71867-48030-A0i200302-200601

IVORY,TRIM0#

main71867-48030-B0i200302-200601

LT.GRAY,TRIM1#

main71867-48030-C0i200302-200601

BLACK,TRIM2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-48020supersedes 71873-48060i200302-200601

W/POWER SEST ADJUSTER

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-48020supersedes 71874-48060i200302-200601

W/POWER SEST ADJUSTER

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-48050-A0supersedes 71875-48050-A0i200302-200408

LUXURY PACKAGE&W/POWER SEST ADJUSTER,IVORY,TRIM0#,DRIVER

main71875-48050-B0supersedes 71875-48050-B0i200302-200408

LT.GRAY,TRIM1#,PASSENGER

main71875-48050-C0supersedes 71875-48050-C0i200302-200408

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&W/POWER SEST ADJUSTER,BLACK,TRIM2#,DRIVER

main71875-58030-A0supersedes 71875-58030-A0i200601-200812

CHINA SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#,RH SEAT

main71875-58030-B3supersedes 71875-58030-B3i200601-200812

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LT.GRAY,TRIM1#,RH SEAT

main71875-58030-C0supersedes 71875-58030-C0i200302-200601

BLACK,TRIM2#,RH SEAT

main71876-48040-A0i200601-200812

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAYPOWER,IVORY,TRIM0#,LH SEAT

main71876-48040-B0i200408-200601

LT.GRAY,TRIM1#,PASSENGER

main71876-48040-C0i200601-200812

BLACK,TRIM2#,LH SEAT

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-58050i200601-200812

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71875-48050-A0supersedes 71875-48050-A0i200408-200601

CHINA SPEC&LUXURY PACKAGE,IVORY,TRIM0#,PASSENGER

main71875-48050-B0supersedes 71875-48050-B0i200408-200601

LT.GRAY,TRIM1#,PASSENGER

main71875-48050-C0supersedes 71875-48050-C0i200408-200601

BLACK,TRIM2#,RH SEAT

main71876-48040-A0supersedes 71876-48040-A0i200302-200408

LUXURY PACKAGE&W/POWER SEST ADJUSTER,IVORY,TRIM0#,DRIVER

main71876-48040-B0supersedes 71876-48040-B0i200302-200408

LT.GRAY,TRIM1#,DRIVER

main71876-48040-C0supersedes 71876-48040-C0i200302-200408

BLACK,TRIM2#,RH SEAT

main71876-60150-A0supersedes 71876-60150-A0i200601-200812

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAYPOWER,IVORY,TRIM0#,LH SEAT

main71876-60150-B3×3supersedes 71876-60150-B3i200408-200601

LT.GRAY,TRIM1#,LH SEAT

main71876-60150-C0×3supersedes 71876-60150-C0i200408-200601

BLACK,TRIM2#,LH SEAT

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71876-58050i200601-200812

71910AHEADREST ASSY, FRONT SEAT

main71910-48200-C0×2i200601-200812

BLACK,TRIM2#

sub71910-48202

main71910-48210-A0×2supersedes 71910-48200-A0i200601-200812

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#

sub71910-48212

main71910-48210-B0×2i200601-200812

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LT.GRAY,TRIM1#

sub71910-48212

main71910-48210-C0×2i200601-200812

CHINA SPEC&LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,BLACK,TRIM2#

sub71910-48212

71931SUPPORT, FRONT SEAT HEADREST

main71930-42020-A0×2i200302-200601

W(LOCK)&W(BUTTON),IVORY,TRIM0#

sub71930-44020

main71930-42020-B2×2i200601-200707

W(LOCK)&W(BUTTON),LT.GRAY,TRIM1#

sub71930-44020

main71930-42020-C0×2i200302-200601

W(LOCK)&W(BUTTON),BLACK,TRIM2#

sub71930-44020

main71930-52030-A0×2i200707-200812

W(LOCK)&W(BUTTON),IVORY,TRIM0#

main71930-52030-B5×2i200707-200812

W(LOCK)&W(BUTTON),LT.GRAY,TRIM1#

main71930-52030-C0×2i200707-200812

W(LOCK)&W(BUTTON),BLACK,TRIM2#

main71931-42020-A0×2i200302-200601

W(LOCK)&W/O(BUTTON),IVORY,TRIM0#

main71931-42020-B2×2i200601-200812

W(LOCK)&W/O(BUTTON),LT.GRAY,TRIM1#

main71931-42020-C0×2i200302-200601

W(LOCK)&W/O(BUTTON),BLACK,TRIM2#

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-48040i200601-200812

LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER

main72110-48050i200302-200307

main72110-48080i200307-200601

72123BCOVER, SEAT TRACK BRACKET, OUTER FRONT

main72123-48050-A0i200601-200812

IVORY,TRIM0#

main72123-48050-B0i200601-200812

LT.GRAY,TRIM1#

main72123-48050-C0i200302-200601

BLACK,TRIM2#

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72123-48040-A0i200601-200812

IVORY,TRIM0#

main72123-48040-B0i200302-200601

LT.GRAY,TRIM1#

main72123-48040-C0i200601-200812

BLACK,TRIM2#

72137BCOVER, SEAT TRACK, RH

main72128-48030-A0i200601-200812

IVORY,TRIM0#

main72128-48030-B0i200302-200601

LT.GRAY,TRIM1#

main72128-48030-C0i200302-200601

BLACK,TRIM2#

72157CCOVER, SEAT TRACK BRACKET, INNER RH

main72138-48020-A0i200601-200812

IVORY,TRIM0#

main72138-48020-B0i200601-200812

LT.GRAY,TRIM1#

main72138-48020-C0i200302-200601

BLACK,TRIM2#

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-48010i200302-200601

W/POWER SEST ADJUSTER

72810CARMREST ASSY, FRONT SEAT, CENTER

main72810-48140-C0i200302-200601

BLACK,TRIM2#

sub72810-48142

main72810-48160-A0supersedes 72810-48140-A0i200601-200812

SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,IVORY,TRIM0#

main72810-48160-B0i200601-200812

CHINA SPEC&SEAT COVER MATERIAL-LEATHER&FRONT SEAT ADJUSTER-D:8WAY POWER P:8WAY POWER,LT.GRAY,TRIM1#

main72810-48160-C0i200304-200601

CHINA SPEC&SEAT COVER MATERIAL-LEATHER&W/SEAT HEATER&W/POWER SEST ADJUSTER,BLACK,TRIM2#

72877COVER, SEAT ARMREST, RH

main72848-48020-A0i200302-200601

IVORY,TRIM0#

main72848-48020-B2i200302-200601

LT.GRAY,TRIM1#

main72848-48020-C0i200302-200601

BLACK,TRIM2#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-0E010i200302-200408

main73910-0E011i200601-200605

main73910-0E012i200606-200612

main73910-0E013i200701-200812

8202

8401

8421

85821JMOTOR ASSY, POWER SEAT RECLINING, RH

main85801-58020i200601-200812

85821KMOTOR ASSY, POWER SEAT TILT, RH

main85801-58040i200302-200601

W/POWER SEST ADJUSTER

85821LMOTOR ASSY, POWER SEAT LIFTER, RH

main85801-58030i200302-200601

W/POWER SEST ADJUSTER

87501ACONTROL SUB-ASSY, SEAT HEATER, RH

main87501-05010i200601-200812

CHINA SPEC&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&FRONTSEAT ADJUSTER-D:8WAY POWER P:8WAY POWER

7138948010SPACER, CENTER SEAT HINGE

main71389-48010

7281248010CLUTCH, PROTECTOR SUB

main72812-48010

7281548050HOLDER, CLUTCH PROTECTOR SUB

main72815-48050

9010910169

main90109-10169

9011005011

main90110-05011

9011005012

main90110-05012

9011005013

main90110-05013

9011910772

main90119-10772

9014860038

main90148-60038

9014880062

main90148-80062

9016740044

main90167-40044

9016740048

main90167-40048

9038910041

main90389-10041

9353054010

main93530-54010

9356054012

main93560-54012

9356855016

main93568-55016

9418560600

main94185-60600

54 parts on this diagram · 4 diagrams in section
