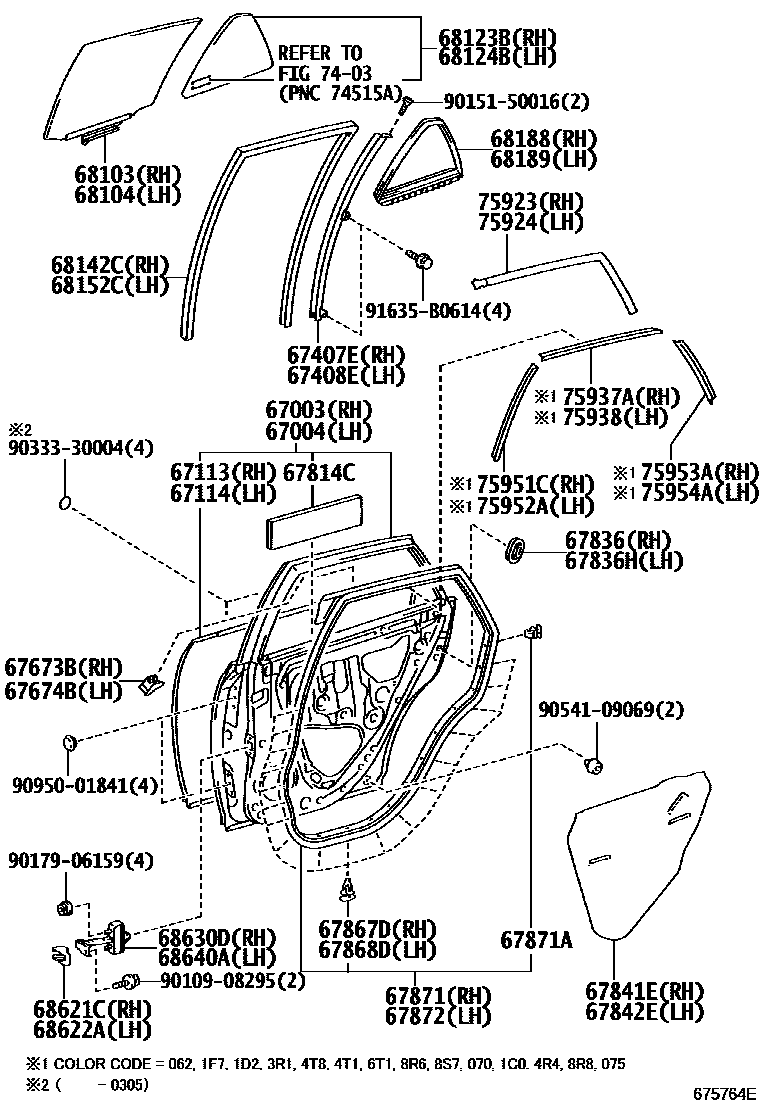

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-48080iMCU3#200302-200812

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-48080iGSU35200302-200812

67113PANEL, REAR DOOR, OUTER RH

main67113-48040iMCU3#200302-200812

67114PANEL, REAR DOOR, OUTER LH

main67114-48040iMCU3#200302-200812

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-48030iGSU35200302-200812

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-48030iMCU3#200302-200812

67673BGARNISH, REAR DOOR FRAME, RH

main67673-48010iMCU3#200302-200812

67674BGARNISH, REAR DOOR FRAME, LH

main67674-48010iMCU3#200302-200812

67814CPACKING, DOOR PROTECTOR

main67813-44010iMCU3#200302-200812

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12040iMCU3#200302-200812

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-12040iMCU3#200302-200812

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-48030iMCU3#200302-200812

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-48030iMCU3#200302-200812

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iMCU3#200302-200812

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iMCU3#200302-200812

67871WEATHERSTRIP, REAR DOOR, RH

main67871-48030iMCU3#200302-200812

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-48010iMCU3#200302-200305

main90467-04034iMCU3#200305-200812

67872WEATHERSTRIP, REAR DOOR, LH

main67872-48030iMCU3#200302-200812

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-48130iMCU3#..ARL,EUR200302-200812

*SERT,T=4.0,DK.GRAY

main68103-48130iMCU3#..ARL,EUR200302-200812

*SERT,T=4.0,DK.GRAY,REAR SIDE GLASS-PRIVACY

main68103-48140iMCU35..RHD200302-200808

*UVCTT,T=4.0,GREEN,BRUNEI SPEC

main68103-48140iMCU38..GCC200302-200808

*UVCTT,T=4.0,GREEN

main68103-48140iMCU38..GCC200302-200808

*UVCTT,T=4.0,GREEN,MOSCOW SPEC

main68103-48140iMCU38..GCC200302-200808

*UVCTT,T=4.0,GREEN,SINGAPORE SPEC

main68103-48140iMCU38..GCC200302-200808

*UVCTT,T=4.0,GREEN,HONG KONG SPEC

main68103-48140iGSU35..GCC200601-200808

*UVCTT,T=4.0,GREEN,PHILIPPINE SPEC

main68103-48140iGSU35..GCC200601-200808

*UVCTT,T=4.0,GREEN,THAILAND SPEC

main68103-48141iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN

main68103-48141iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,MOSCOW SPEC

main68103-48141iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,HONG KONG SPEC

main68103-48141iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,PHILIPPINE SPEC

main68103-48141iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,SINGAPORE SPEC

main68103-48141iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,BRUNEI SPEC

main68103-48141iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,THAILAND SPEC

main68103-48141iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,MALAYSIA SPEC

main68103-48141iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,INDONESIA SPEC

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-48110iMCU3#..ARL,EUR200302-200812

*SERT,T=4.0,DK.GRAY

main68104-48110iMCU3#..ARL,EUR200302-200812

*SERT,T=4.0,DK.GRAY,REAR SIDE GLASS-PRIVACY

main68104-48120iMCU38..GCC200302-200808

*UVCTT,T=4.0,GREEN,HONG KONG SPEC

main68104-48120iMCU35..LHD200302-200808

*UVCTT,T=4.0,GREEN

main68104-48120iMCU35..LHD200302-200808

*UVCTT,T=4.0,GREEN,MOSCOW SPEC

main68104-48120iMCU35..LHD200302-200808

*UVCTT,T=4.0,GREEN,SINGAPORE SPEC

main68104-48120iMCU35..LHD200302-200808

*UVCTT,T=4.0,GREEN,BRUNEI SPEC

main68104-48120iGSU35..GCC200601-200808

*UVCTT,T=4.0,GREEN,PHILIPPINE SPEC

main68104-48120iGSU35..GCC200601-200808

*UVCTT,T=4.0,GREEN,THAILAND SPEC

main68104-48121iGSU35..RHD..EUR200808-200812

*UVCTT,T=4.0,GREEN,MOSCOW SPEC

main68104-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN

main68104-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,HONG KONG SPEC

main68104-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,PHILIPPINE SPEC

main68104-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,SINGAPORE SPEC

main68104-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,BRUNEI SPEC

main68104-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,THAILAND SPEC

main68104-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,MALAYSIA SPEC

main68104-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,INDONESIA SPEC

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-48110iMCU3#..ARL,EUR200302-200812

*SERT,T=4.0,DK.GRAY

main68123-48110iMCU38..GCC200302-200812

*SERT,T=4.0,DK.GRAY,REAR SIDE GLASS-PRIVACY

main68123-48120iMCU35..RHD200302-200808

*UVCTT,T=4.0,GREEN

main68123-48120iMCU35..RHD200302-200808

*UVCTT,T=4.0,GREEN,MOSCOW SPEC

main68123-48120iMCU35..RHD200302-200808

*UVCTT,T=4.0,GREEN,SINGAPORE SPEC

main68123-48120iMCU35..RHD200302-200808

*UVCTT,T=4.0,GREEN,BRUNEI SPEC

main68123-48120iMCU35..RHD200302-200808

*UVCTT,T=4.0,GREEN,HONG KONG SPEC

main68123-48120iGSU35..GCC200601-200808

*UVCTT,T=4.0,GREEN,PHILIPPINE SPEC

main68123-48120iGSU35..GCC200601-200808

*UVCTT,T=4.0,GREEN,THAILAND SPEC

main68123-48121iGSU35..RHD..EUR200808-200812

*UVCTT,T=4.0,GREEN,SINGAPORE SPEC

main68123-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN

main68123-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,MOSCOW SPEC

main68123-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,HONG KONG SPEC

main68123-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,PHILIPPINE SPEC

main68123-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,BRUNEI SPEC

main68123-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,THAILAND SPEC

main68123-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,MALAYSIA SPEC

main68123-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,INDONESIA SPEC

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-48110iMCU3#..ARL,EUR200302-200812

*SERT,T=4.0,DK.GRAY

main68124-48110iMCU3#..ARL,EUR200302-200812

*SERT,T=4.0,DK.GRAY,REAR SIDE GLASS-PRIVACY

main68124-48120iGSU35..RHD..EUR200302-200808

*UVCTT,T=4.0,GREEN,SINGAPORE SPEC

main68124-48120iMCU38..GCC200302-200808

*UVCTT,T=4.0,GREEN

main68124-48120iMCU38..GCC200302-200808

*UVCTT,T=4.0,GREEN,MOSCOW SPEC

main68124-48120iMCU38..GCC200302-200808

*UVCTT,T=4.0,GREEN,BRUNEI SPEC

main68124-48120iMCU38..GCC200302-200808

*UVCTT,T=4.0,GREEN,HONG KONG SPEC

main68124-48120iGSU35..GCC200601-200808

*UVCTT,T=4.0,GREEN,PHILIPPINE SPEC

main68124-48120iGSU35..GCC200601-200808

*UVCTT,T=4.0,GREEN,THAILAND SPEC

main68124-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN

main68124-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,MOSCOW SPEC

main68124-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,HONG KONG SPEC

main68124-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,PHILIPPINE SPEC

main68124-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,SINGAPORE SPEC

main68124-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,BRUNEI SPEC

main68124-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,THAILAND SPEC

main68124-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,MALAYSIA SPEC

main68124-48121iGSU35..GCC200808-200812

*UVCTT,T=4.0,GREEN,INDONESIA SPEC

68142CRUN, REAR DOOR GLASS, RH

main68142-48030iMCU3#200302-200812

68152CRUN, REAR DOOR GLASS, LH

main68152-48030iMCU3#200302-200812

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-48030iMCU3#200302-200812

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-48030iMCU3#200302-200812

68621CCOVER, REAR DOOR CHECK, RH

main68621-53010iMCU3#200302-200812

68622ACOVER, REAR DOOR CHECK, LH

main68622-53010iMCU3#200302-200812

68630DCHECK ASSY, REAR DOOR, RH

main68630-48030iMCU3#200302-200812

68640ACHECK ASSY, REAR DOOR, LH

main68640-48020iMCU3#200302-200812

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

75923TAPE, BLACK OUT, NO.2 RH

main75923-48020iMCU3#200302-200812

75924TAPE, BLACK OUT, NO.2 LH

main75924-48020iMCU3#200302-200812

75937ATAPE, BLACK OUT, INNER UPPER RH

main75987-48020iMCU3#200302-200812

75938TAPE, BLACK OUT, INNER UPPER LH

main75988-48020iMCU3#200302-200812

75951CTAPE, BLACK OUT, INNER FRONT RH

main75977-48020iMCU3#200302-200812

75952ATAPE, BLACK OUT, INNER FRONT LH

main75978-48020iMCU3#200302-200812

75953ATAPE, BLACK OUT, INNER REAR RH

main75979-48010iMCU3#200302-200812

75954ATAPE, BLACK OUT, INNER REAR LH

main75989-48010iMCU3#200302-200812

9010908295

main90109-08295

9015150016

main90151-50016

9017906159

main90179-06159

9033330004

main90333-30004

9054109069

main90541-09069

9095001841

main90950-01841

91635B0614

main91635-B0614

46 parts on this diagram · 2 diagrams in section
