MAT & CARPET

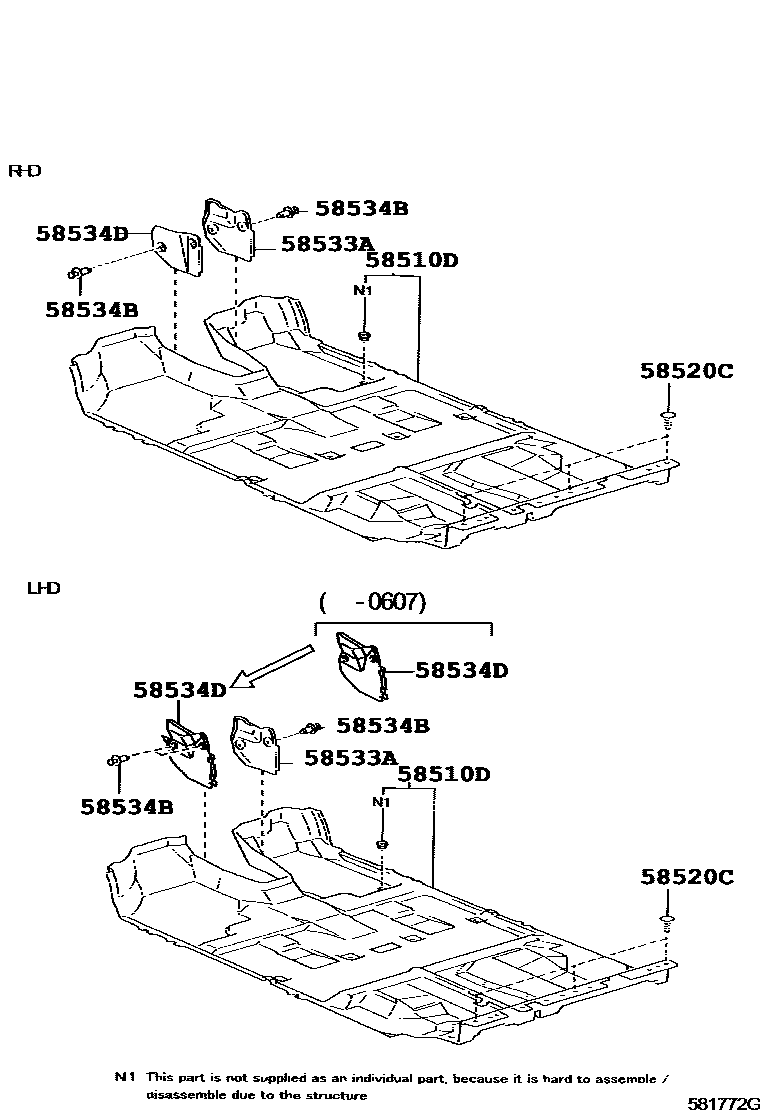

Parts diagram

58510DCARPET ASSY, FLOOR, FRONT

main58510-48080-A0i200302-200601

IVORY,TRIM0#

main58510-48080-B0i200302-200601

LT.GRAY,TRIM1#

main58510-48080-C0i200302-200601

BLACK,TRIM2#

main58510-48081-A0i200601-200812

IVORY,TRIM0#

main58510-48081-B0i200601-200812

LT.GRAY,TRIM1#

main58510-48081-C0i200601-200812

BLACK,TRIM2#

main58510-48090-A0i200302-200601

IVORY,TRIM0#

main58510-48090-B0i200302-200601

LT.GRAY,TRIM1#

main58510-48090-C0i200302-200601

BLACK,TRIM2#

main58510-48091-A0i200601-200812

IVORY,TRIM0#

main58510-48091-B0i200601-200812

LT.GRAY,TRIM1#

main58510-48091-C0i200601-200812

BLACK,TRIM2#

main58510-48092-A0i200601-200812

CHINA SPEC,IVORY,TRIM0#

main58510-48092-B0i200601-200812

CHINA SPEC,LT.GRAY,TRIM1#

main58510-48092-C0i200601-200812

CHINA SPEC,BLACK,TRIM2#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-C0×3i200302-200601

BLACK,TRIM0#,1#,2#

58533ACOVER, FLOOR CARPET, CENTER RH

main58533-48030-A0i200302-200303

IVORY,TRIM0#

main58533-48030-B1i200302-200303

LT.GRAY,TRIM1#

main58533-48030-C0i200302-200303

BLACK,TRIM2#

main58533-48050-A0i200302-200601

IVORY,TRIM0#

main58533-48050-B0i200601-200812

LT.GRAY,TRIM1#

main58533-48050-C0i200302-200601

BLACK,TRIM2#

main58533-48060-A0i200601-200812

IVORY,TRIM0#

main58533-48060-B0i200303-200601

LT.GRAY,TRIM1#

main58533-48060-C0i200601-200812

BLACK,TRIM2#

58534BCLIP(FOR FLOOR CARPET CENTER COVER)

main90467-06020×4i200601-200606

main90467-06020-C0×4i200606-200812

BLACK

main90467-07150×4i200302-200601

58534DCOVER, FLOOR CARPET, CENTER LH

main58534-48040-A0i200302-200601

IVORY,TRIM0#

main58534-48040-B2i200601-200812

LT.GRAY,TRIM1#

main58534-48040-C0i200302-200601

BLACK,TRIM2#

main58534-48050-A0i200302-200601

IVORY,TRIM0#

main58534-48050-B0i200302-200601

LT.GRAY,TRIM1#

main58534-48050-C0i200302-200601

BLACK,TRIM2#

main58534-48051-A0i200607-200812

IVORY,TRIM0#

main58534-48051-B0i200607-200812

LT.GRAY,TRIM1#

main58534-48051-C0i200607-200812

BLACK,TRIM2#

5 parts on this diagram · 1 diagram in section
