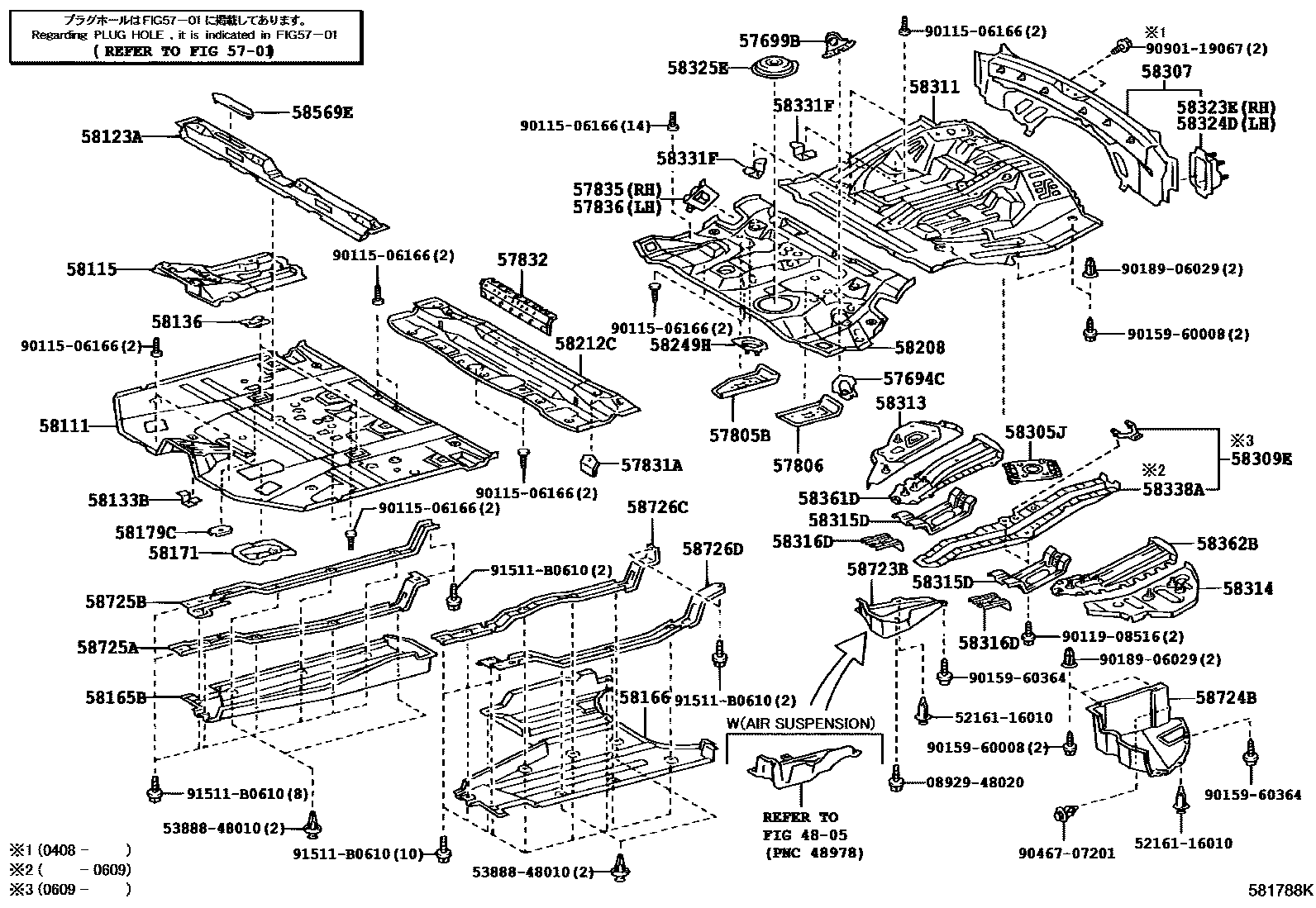

FLOOR PAN & LOWER BACK PANEL
4805HEIGHT CONTROL (AUTO-LEVELER)
5701HOLE PLUG
57694CREINFORCEMENT, FUEL TANK MOUNTING BRACKET, LH
57699BREINFORCE, FUEL TANK MOUNTING BRACKET, NO.3
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH
57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
58111PAN, FRONT FLOOR
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58123ASUPPORT, SHIFT & SELECT LEVER
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58136COVER, FRONT FLOOR HOLE
58165BCOVER, FRONT FLOOR, RH
58166COVER, FRONT FLOOR, LH
58171REINFORCEMENT, PARKING BRAKE BASE
58179CBRACKET, CLAMP FLOOR
58208PAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
58249HBRACKET, CENTER FLOOR BOARD SUPPORT
58305JBRACKET, SPARE WHEEL CARRIER
58307PANEL SUB-ASSY, BODY LOWER BACK
58309EPLATE SUB-ASSY, REAR FLOOR
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58338AREINFORCEMENT, REAR FLOOR PAN, NO.2
58361DREINFORCEMENT, REAR FLOOR PANEL, NO.1 RH
58362BREINFORCEMENT, REAR FLOOR PANEL, NO.1 LH
58569ECOVER, FRONT FLOOR CAUTION PLATE
IVORY,TRIM0#
LT.GRAY,TRIM1#
BLACK,TRIM2#
58723BPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1
58724BPROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2
58725ASTAY, ENGINE SERVICE COVER
58725BREINFORCEMENT, LUGGAGE COMPARTMENT SIDE COVER, RH
58726CSTAY, ENGINE SERVICE COVER, NO.2
58726DSTAY, ENGINE SERVICE COVER CATCH, REAR LH
0892948020
main08929-48020
5216116010CUSHION, REAR BUMPER GUARD, NO.1
main52161-16010
5388848010SHEET, BAFFLE
main53888-48010
9011506166
main90115-06166
9011908516
main90119-08516
9015960008
main90159-60008
9015960364
main90159-60364
9018906029
main90189-06029
9046707201
main90467-07201
9090119067
main90901-19067
91511B0610
main91511-B0610
55 parts on this diagram · 2 diagrams in section
