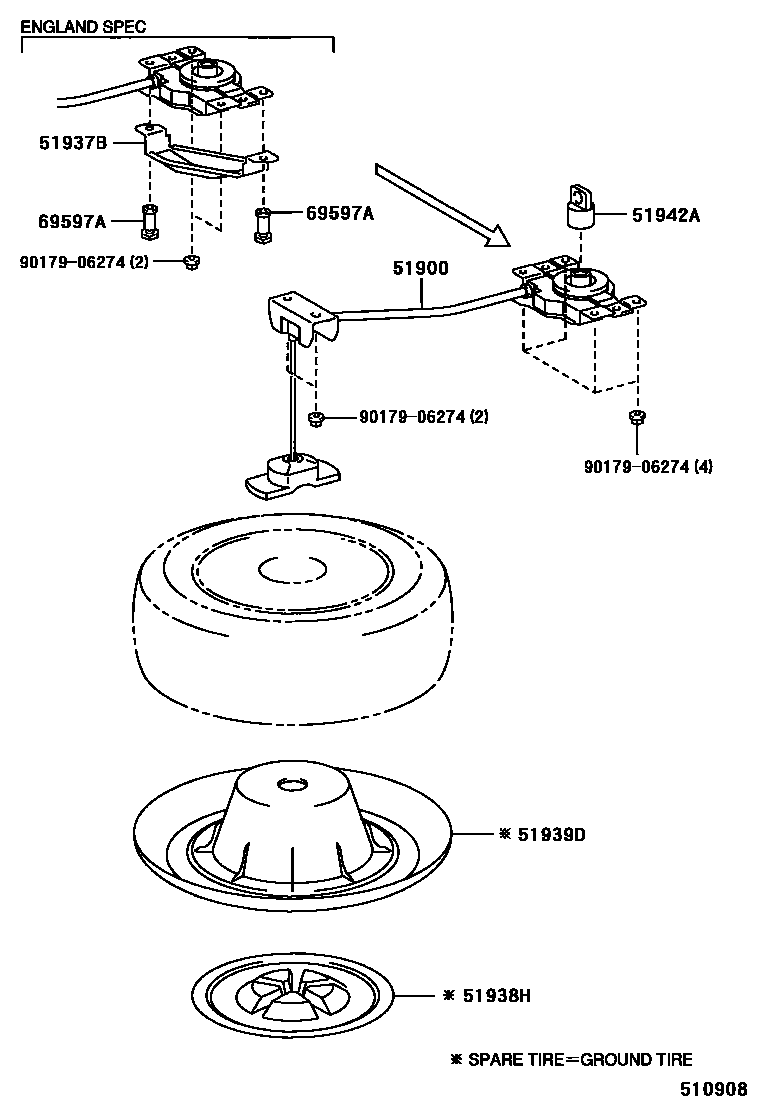

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-48020iMCU3#200302-200601

51937BPLATE, SPARE WHEEL CARRIER LOCK

main51937-48010iMCU35..RHD200302-200601

ENGLAND SPEC; ENGLAND SPEC&SPARE TIRE-T165/80R17

51938HCOVER, SPARE WHEEL CARRIER HINGE, LWR

main51938-48010iMCU3#200302-200601

51939DCOVER, SPARE WHEEL CARRIER LOCK

main51939-48010iMCU3#200302-200601

51942AHANDLE, SPARE WHEEL CARRIER BOLT

main51942-48010iMCU3#200302-200601

69597ANUT, SPARE WHEEL LOCK

main69597-48010×2iMCU35..RHD200302-200601

ENGLAND SPEC; ENGLAND SPEC&SPARE TIRE-T165/80R17

9017906274

main90179-06274

7 parts on this diagram · 1 diagram in section
