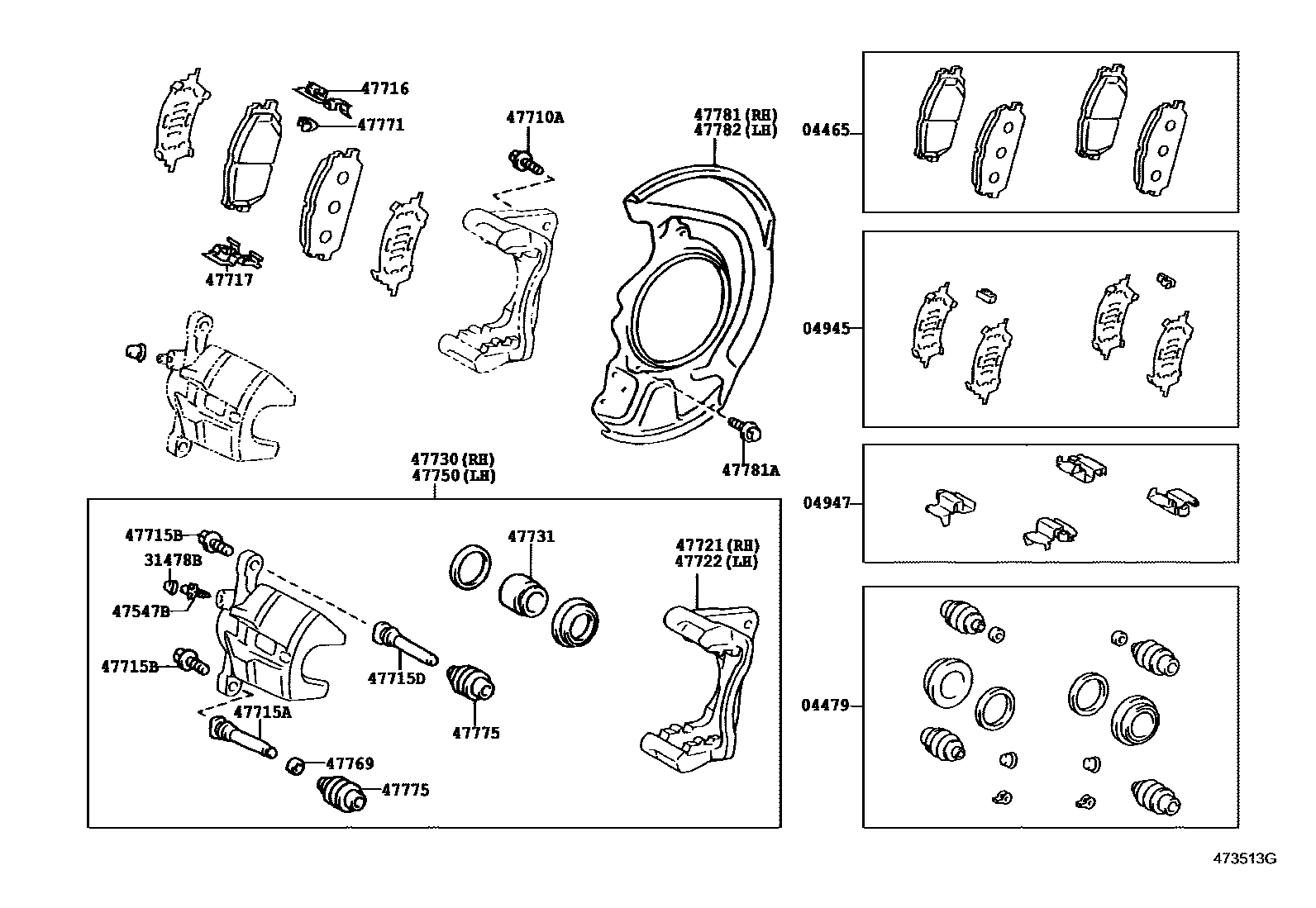

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0W070iMCU38..ARL200302-200812

TEXTAR T4146

main04465-48080iMCU3#..ARL,EUR200302-200405

MARK NBK PN532H

sub04465-48110

main04465-48100iGSU35..ARL200706-200812

MARK SUMITOMO PS558H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-48160iGSU35200711-200812

main04479-48040iMCU3#200302-200711

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-48051iMCU3#200302-200312

sub04945-48080

main04945-48080iMCU3#200312-200812

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48050iMCU3#200302-200812

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iMCU35..RHD200302-200601

SINGAPORE SPEC

main31478-30010iMCU3#200302-200601

BRUNEI SPEC

main31478-30010iMCU3#200302-200601

HONG KONG SPEC

main31478-30010iGSU35200601-200812

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iMCU3#..ARL,EUR200302-200812

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iMCU3#200302-200812

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48050iMCU3#..ARL,EUR200302-200812

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08346iMCU3#..ARL,EUR200302-200812

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-48050iMCU3#..ARL,EUR200302-200812

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-48120iMCU3#..ARL,EUR200302-200812

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-48050iMCU3#..ARL,EUR200302-200812

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-48120iMCU3#..ARL,EUR200302-200403

sub47721-48140

main47721-48140iMCU3#..ARL,EUR200312-200812

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-48120iMCU3#..ARL,EUR200302-200403

sub47721-48140

main47721-48140iMCU3#..ARL,EUR200312-200812

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-48120iMCU3#..ARL,EUR200302-200403

sub47730-48140

main47730-48140iMCU3#..ARL,EUR200312-200812

47731PISTON, FRONT DISC BRAKE

main47731-28080iMCU3#..ARL,EUR200302-200812

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-48120iMCU3#..ARL,EUR200302-200403

sub47750-48140

main47750-48140iMCU3#..ARL,EUR200312-200812

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-33020iMCU3#..ARL,EUR200302-200812

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-48010iMCU3#200302-200601

SINGAPORE SPEC

main47771-48010iMCU3#200302-200601

BRUNEI SPEC

main47771-48010iMCU3#200302-200601

HONG KONG SPEC

main47771-48010iGSU35200601-200812

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-48050iMCU3#..ARL,EUR200302-200812

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-48030iMCU3#200302-200812

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iMCU3#200302-200812

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-48030iMCU3#200302-200812

23 parts on this diagram · 1 diagram in section
