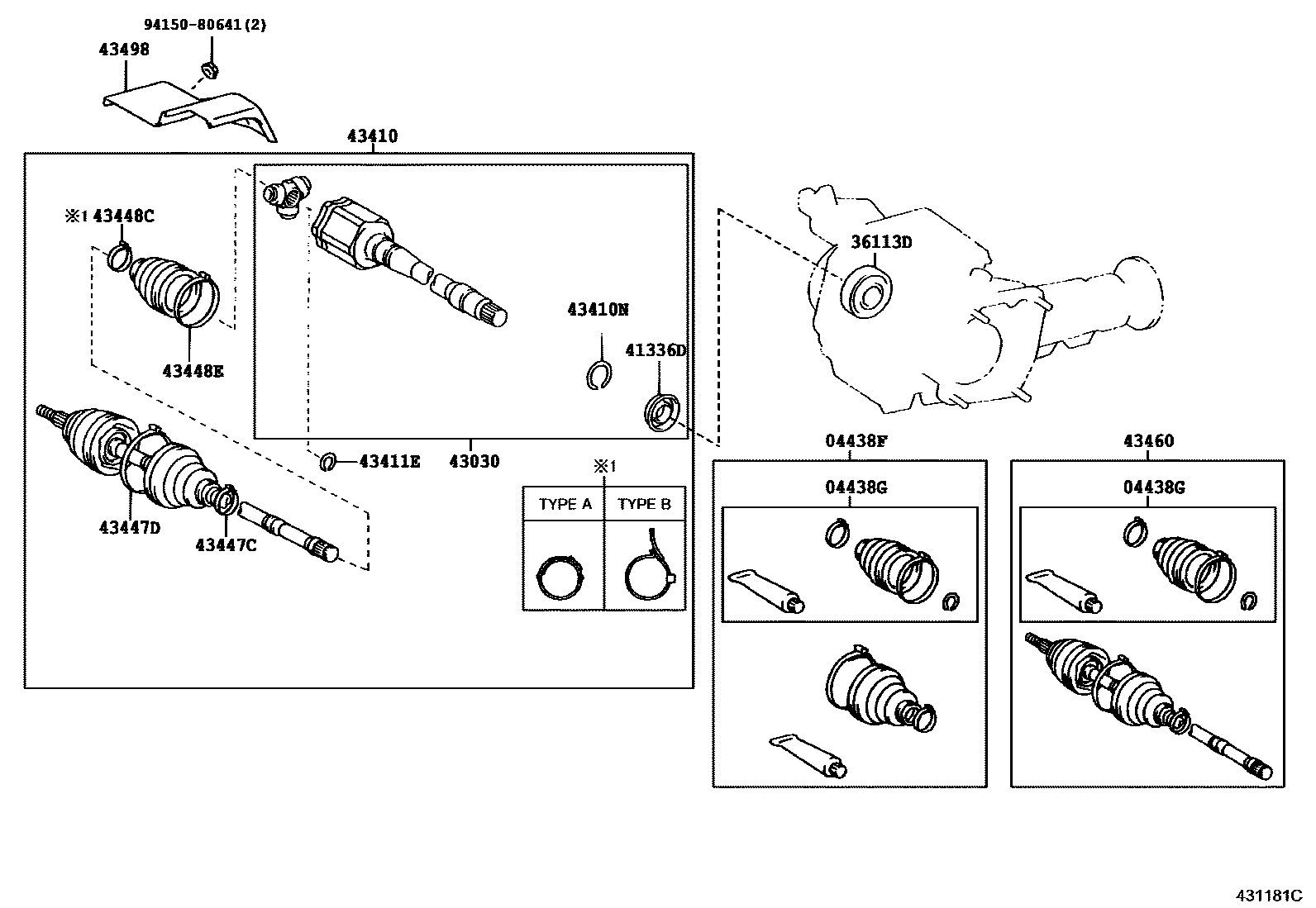

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1RH 0004 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04428-58030iMCU35200411-200601

sub04428-42070

main04438-0E040iMCU38200302-200812

main04438-28052iMCU35200302-200411

sub04428-42070

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-08030iGSU35200302-200812

main04438-28041iMCU35200302-200411

sub04438-42180

main04438-58020iMCU35200411-200601

sub04438-42180

36113DSEAL, OIL (FOR TRANSFER CASE RH)

main90311-34021iMCU3#200302-200812

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-21010iMCU35200302-200601

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-0E010iGSU35200302-200812

main43030-42021iMCU35200302-200601

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0E011iGSU35200302-200812

main43410-48050iMCU35200302-200601

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-08060iMCU38200302-200812

main90521-26004iMCU35200302-200601

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iMCU35200302-200601

main90080-52118iMCU38200302-200812

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-04030iGSU35200302-200812

main42345-20020iMCU35200302-200601

sub42345-20040

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06080iMCU38200302-200812

main42345-28010iMCU35200302-200601

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-07020iGSU35200302-200812

main42345-42010iMCU35200302-200601

TYPE A:REFER ILLUST.

main90949-01559iMCU35200302-200601

TYPE B:REFER ILLUST.

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-07010iGSU35200302-200812

main42345-12160iMCU35200302-200601

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09A40iMCU38200302-200812

main43470-29626iMCU35200302-200311

sub43470-29885

main43470-29895iMCU35200311-200601

43498INSULATOR, DRIVE SHAFT HEAT

main43498-48010iMCU3#200302-200305

sub43498-48011

main43498-48011iMCU3#200305-200601

9415080641

main94150-80641

15 parts on this diagram · 4 diagrams in section
