PARTIAL ENGINE ASSEMBLY

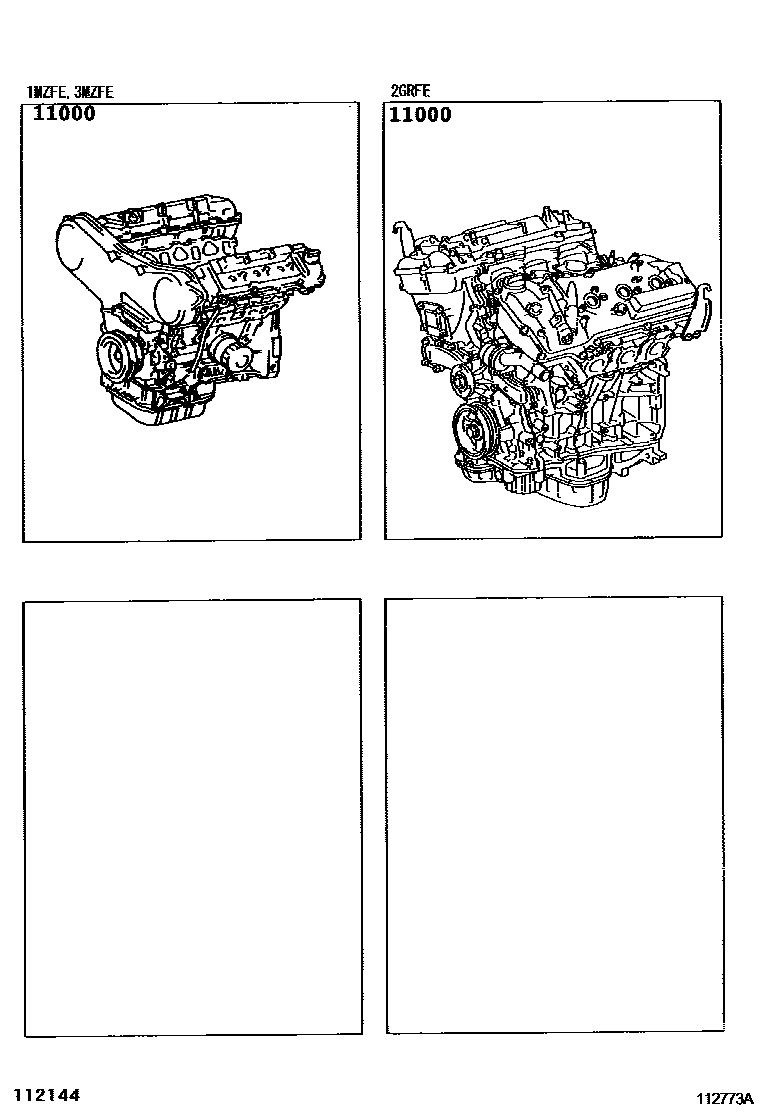

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-20420i200302-200312

main19000-20450i200302-200601

main19000-20460i200302-200601

main19000-20760i200312-200401

main19000-31A00i200601-200812

main19000-31D30i200601-200812

main19000-31E40i200601-200812

1 parts on this diagram · 1 diagram in section
