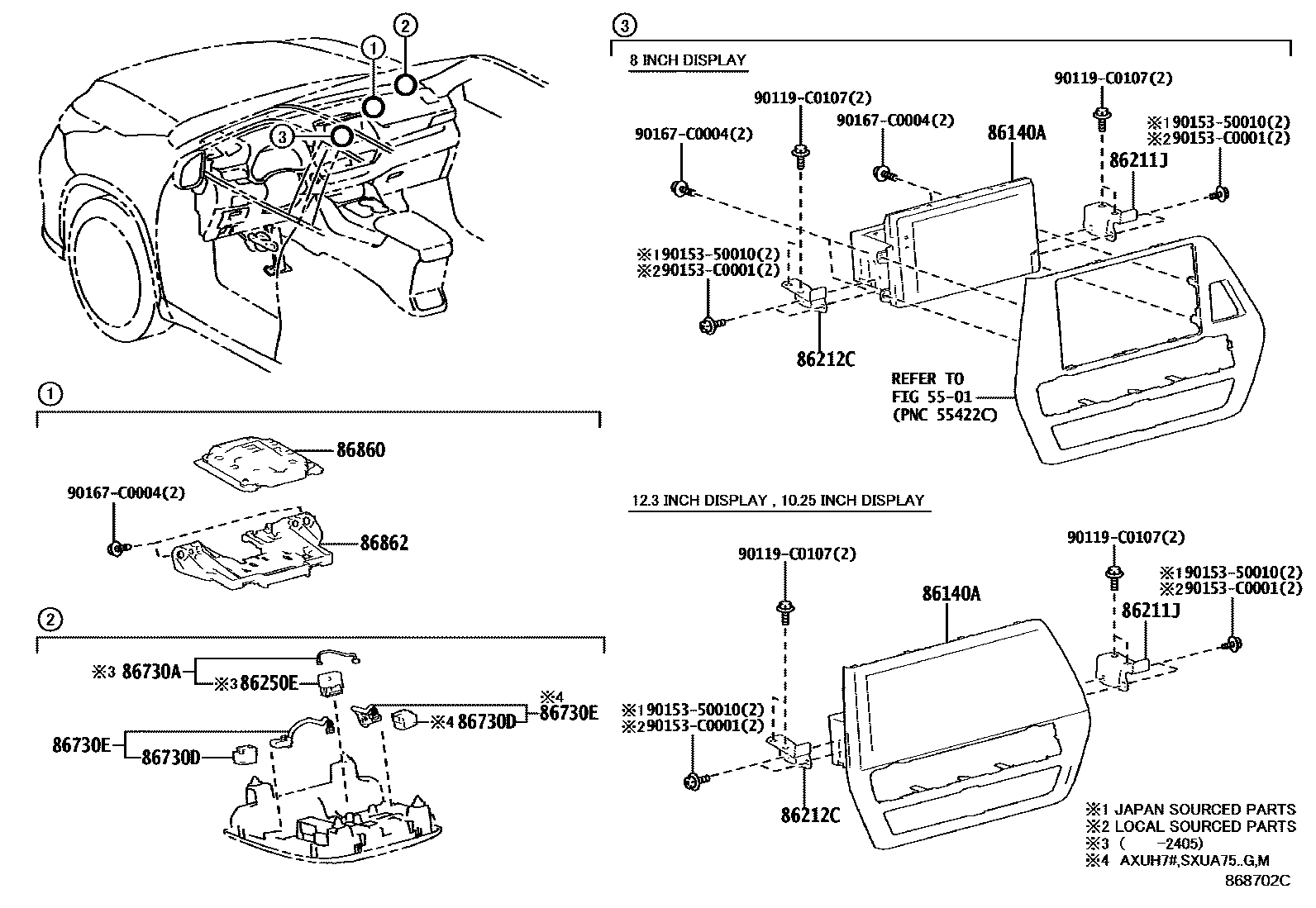

NAVIGATION & FRONT MONITOR DISPLAY

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-0E360iAXUH7#..M202108-202203

DESAY

main86100-0E361iAXUH7#,SXUA75..M202204-202210

DESAY

main86100-0E362iAXUH7#,SXUA75..M202210-202304

DESAY

main86100-0E370iAXUH79..G202108-202203

DESAY

main86100-0E371iAXUH79,SXUA75..G202204-202210

DESAY

main86100-0E372iAXUH79,SXUA75..G202210-202304

DESAY

main86100-0E550iAXUH7#,SXUA75..M202304-202306

DESAY

main86100-0E551iAXUH7#,SXUA75..M202307-202405

DESAY

main86100-0E560iAXUH79,SXUA75..G202304-202306

DESAY

main86100-0E561iAXUH79,SXUA75..G202307-202405

DESAY

main86100-0E600iAXUH7#,SXUA75..M202405-202509

DESAY

main86100-0E610iAXUH79,SXUA75..G202405-202509

DESAY

main86140-0E730iAXUH7#,SXUA75..N202108-202304

DESAY

main86140-0E731iAXUH7#,SXUA75..N202304-202306

DESAY

main86140-0E732iAXUH7#,SXUA75..N202307-202405

DESAY

main86140-0E770iAXUH7#,SXUA75..N202405-202509

HANGSHENG

main86140-0EF20iAXUH71..N202405-202509

HANGSHENG,SEAT REAR NO.2-WITHOUT

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-0E160iAXUH7#,SXUA75202108-202405

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-0E160iAXUH7#,SXUA75202108-202405

86250EMICROPHONE ASSY, AMPLIFIER

main86250-06020iAXUH7#,SXUA75202210-202405

main86250-52030iAXUH7#,SXUA75202108-202210

86730AMICROPHONE ASSY, TELEPHONE

main86730-06060iAXUH7#,SXUA75202108-202405

86730DMICROPHONE ASSY, TELEPHONE, NO.2

main86730-0R050×2iAXUH7#,SXUA75..G,M202108-202405

86730EMICROPHONE ASSY

main86730-0E080×2iAXUH7#,SXUA75..G,M202108-202405

86860ANTENNA ASSY, NAVIGATION

main86880-0E020iAXUH7#,SXUA75202108-202405

86862BRACKET, NAVIGATION ANTENNA

main86862-0E030iAXUH7#,SXUA75202405

(L)

main86862-42010iAXUH7#,SXUA75202108-202405

90119C0107

main90119-C0107

9015350010

main90153-50010

90153C0001

main90153-C0001

90167C0004

main90167-C0004

14 parts on this diagram · 1 diagram in section
