METER

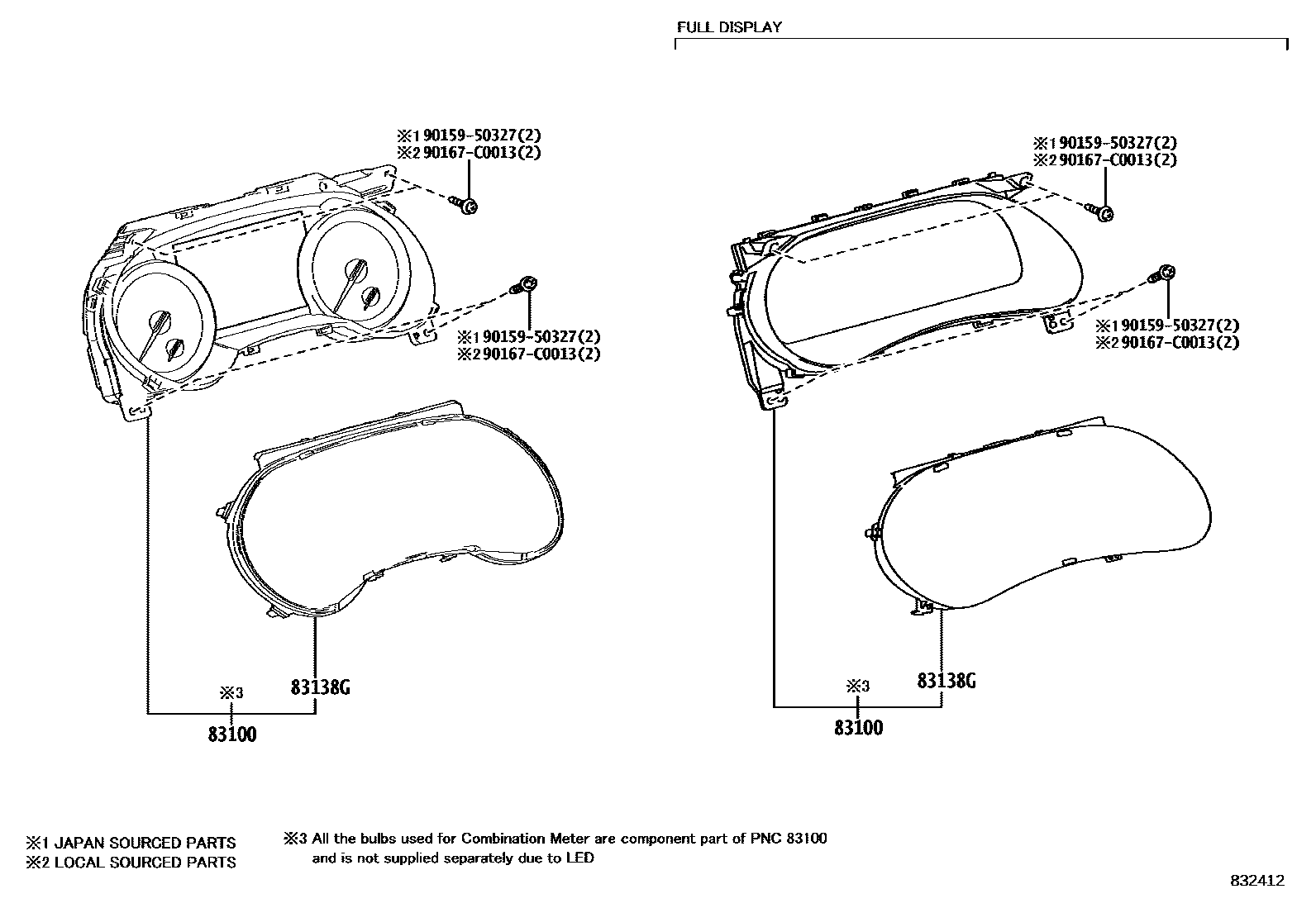

Parts diagram

83100METER ASSY, COMBINATION

main83800-0EF70i202304-202308

DENSO

main83800-0EF72i202308-202405

DENSO

main83800-0EG10i202108-202211

DENSO

main83800-0EG11i202211-202304

DENSO

main83800-0EG20i202108-202109

DENSO

main83800-0EG21i202110-202112

DENSO

main83800-0EG22i202201-202211

DENSO

main83800-0EG23i202211-202304

DENSO

main83800-0EQ50i202209-202306

DENSO

main83800-0EQ51i202307-202405

DENSO

main83800-0EQ60i202209-202304

DENSO

main83800-0EQ61i202305-202307

DENSO

main83800-0EQ62i202308-202405

DENSO

main83A00-0E320i202304-202306

DENSO

main83A00-0E321i202307-202405

DENSO

main83A00-0E820i202405-202407

DENSO

main83A00-0E821i202408

DENSO

main83A00-0E840i202405-202407

DENSO

main83A00-0E841i202408

DENSO

main83A00-0E850i202405-202407

DENSO

main83A00-0E851i202408

DENSO

main83A00-0E860i202405-202407

DENSO

main83A00-0E861i202408

DENSO

main83A00-0EB30i202405-202407

DENSO

main83A00-0EB31i202408-202509

DENSO

main83A00-0EB40i202405-202407

DENSO

main83A00-0EB41i202408-202509

DENSO

83138GGLASS, COMBINATION METER

main83852-0EG10i202108-202405

main83852-0EG20i202108-202305

9015950327

main90159-50327

90167C0013

main90167-C0013

4 parts on this diagram · 2 diagrams in section
