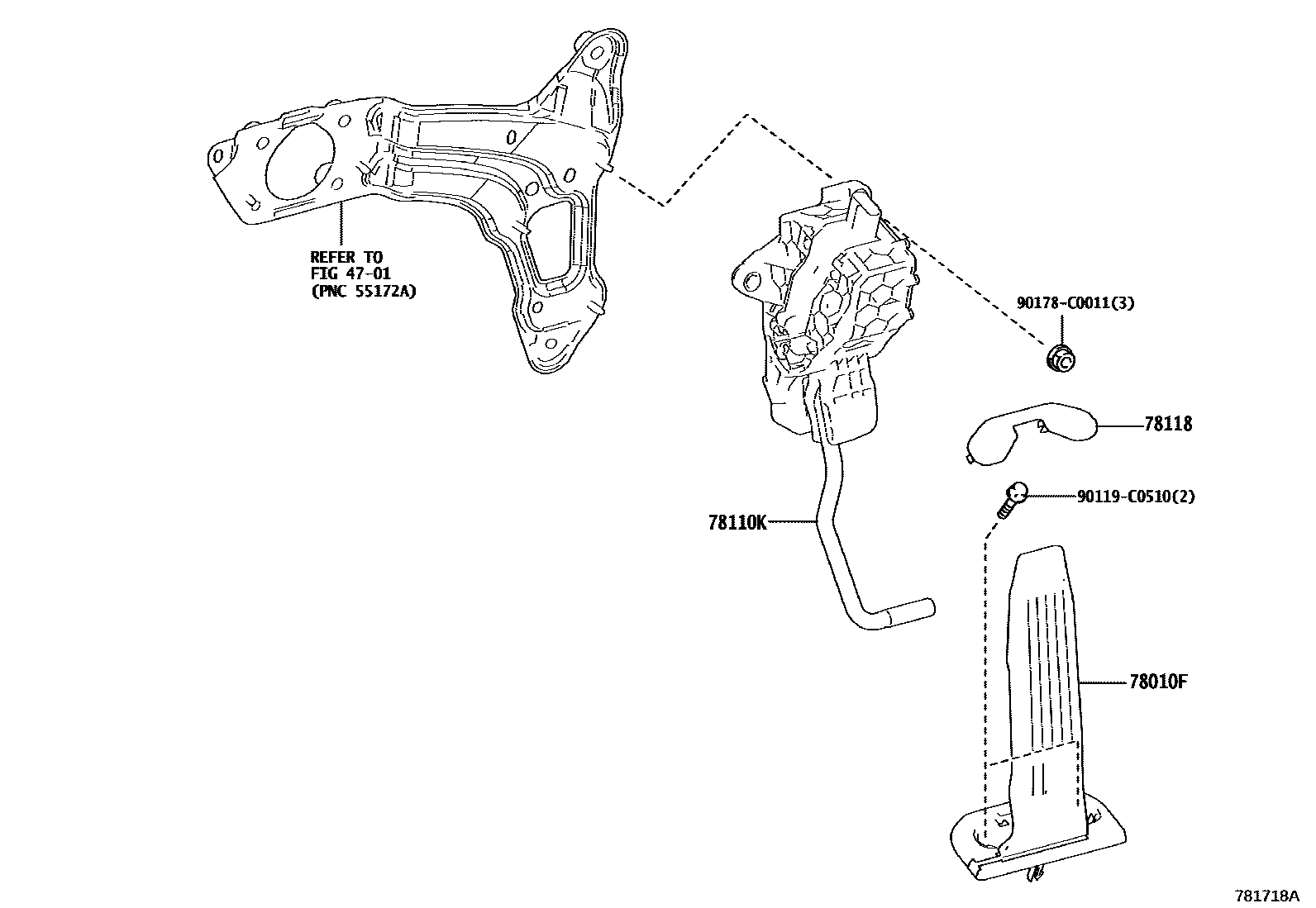

ACCELERATOR LINK

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78010FPEDAL ASSY, ACCELERATOR

main78101-06020iAXUH7#202108-202206

main78101-06021iAXUH7#,SXUA75202207-202405

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-06171iAXUH7#202405

main78110-06211iSXUA75202209-202405

78118PAD, ACCELERATOR PEDAL

main78117-06020iAXUH7#,SXUA75202108-202405

90119C0510

main90119-C0510

90178C0011

main90178-C0011

6 parts on this diagram · 1 diagram in section
