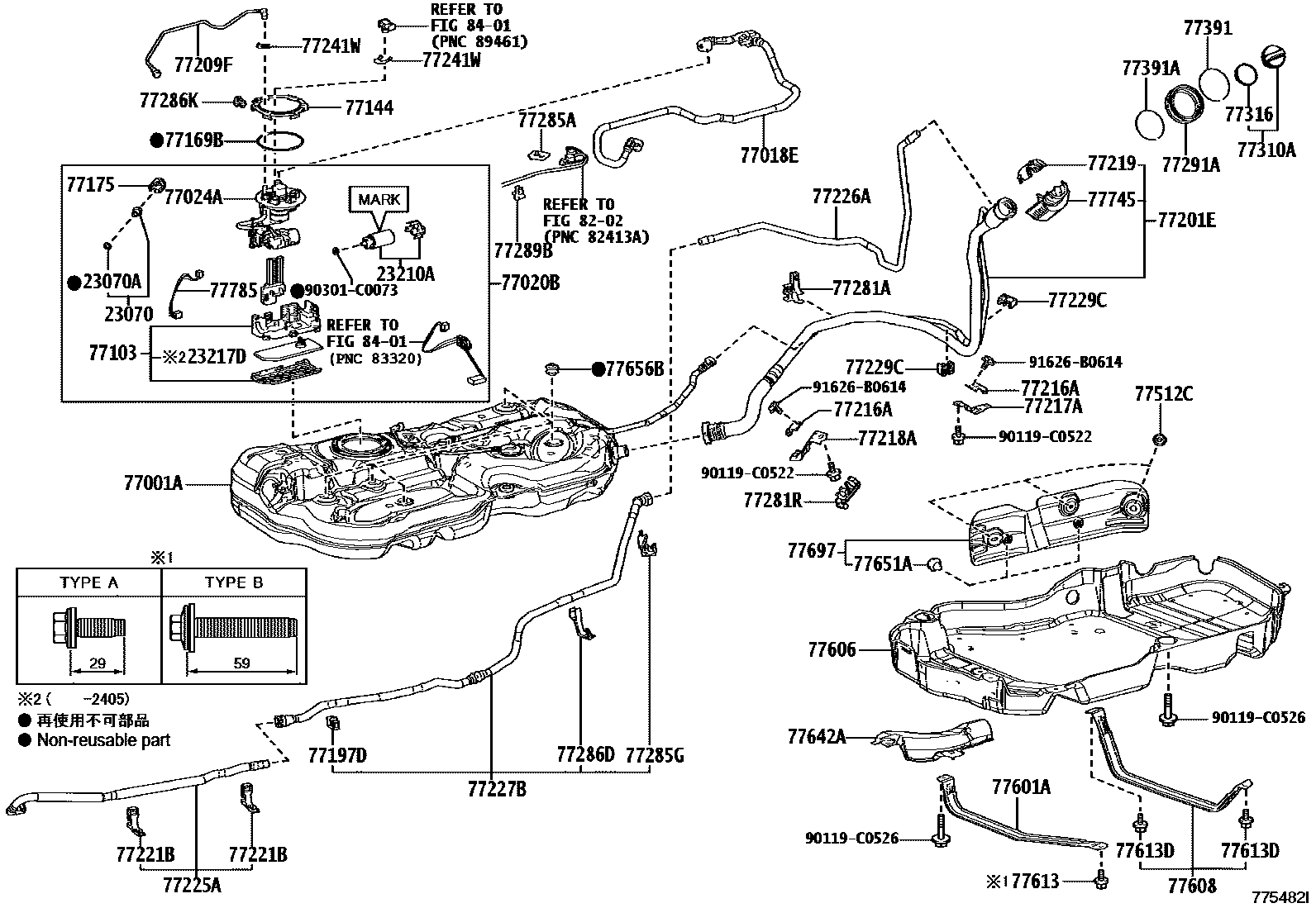

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
(J)
(L)
23070ARING, O, NO.1(FOR FUEL MAIN VALVE)
23210APUMP ASSY, FUEL W/MOTOR & BRACKET
MARK=23221-F0040
MARK=23221-F0040
(J)
MARK=23221-24010
23217DFILTER, FUEL PUMP
77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77020BTUBE ASSY, FUEL SUCTION W/O PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77144RETAINER, FUEL PUMP GAUGE
77169BGASKET, FUEL SUCTION TUBE SET, NO.1
(J)
77175SUPPORT, FUEL SUCTION, NO.2
77197DCLAMP, EVAPORATION VENT TUBE, NO.2
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77219COVER, FUEL TANK FILLER PIPE
77221BCLAMP, BREATHR TUBE
77225ATUBE, FUEL TANK BREATHER, NO.5
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77281ACLAMP, FUEL FILLER PIPE
77281RCLAMP, FUEL FILLER PIPE, NO.2
77285ASUPPORT, FUEL RETURN AND MAIN TUBE
77286DCLAMP, FUEL TUBE, NO.2
77286KCLAMP, FUEL TUBE, NO.2
77289BCLAMP, FUEL TUBE, NO.3
77291ASHIELD, FUEL TANK FILLER PIPE
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77608BAND SUB-ASSY, FUEL TANK, NO.2
77613BOLT, FUEL TANK BAND SET
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
77613DBOLT, FUEL TANK BAND SET, NO.2
77651ACUSHION, FUEL TANK, NO.1
77656BCUSHION, FUEL TANK, NO.6
77697INSULATOR, FUEL TANK HEAT, NO.1
77745FILTER, CHARCOAL CANISTER, NO.1
77785HARNESS, FUEL PUMP
(L)
(J)
8202
8401
90119C0522
main90119-C0522
90119C0526
main90119-C0526
90301C0073
main90301-C0073
91626B0614
main91626-B0614
55 parts on this diagram · 6 diagrams in section
