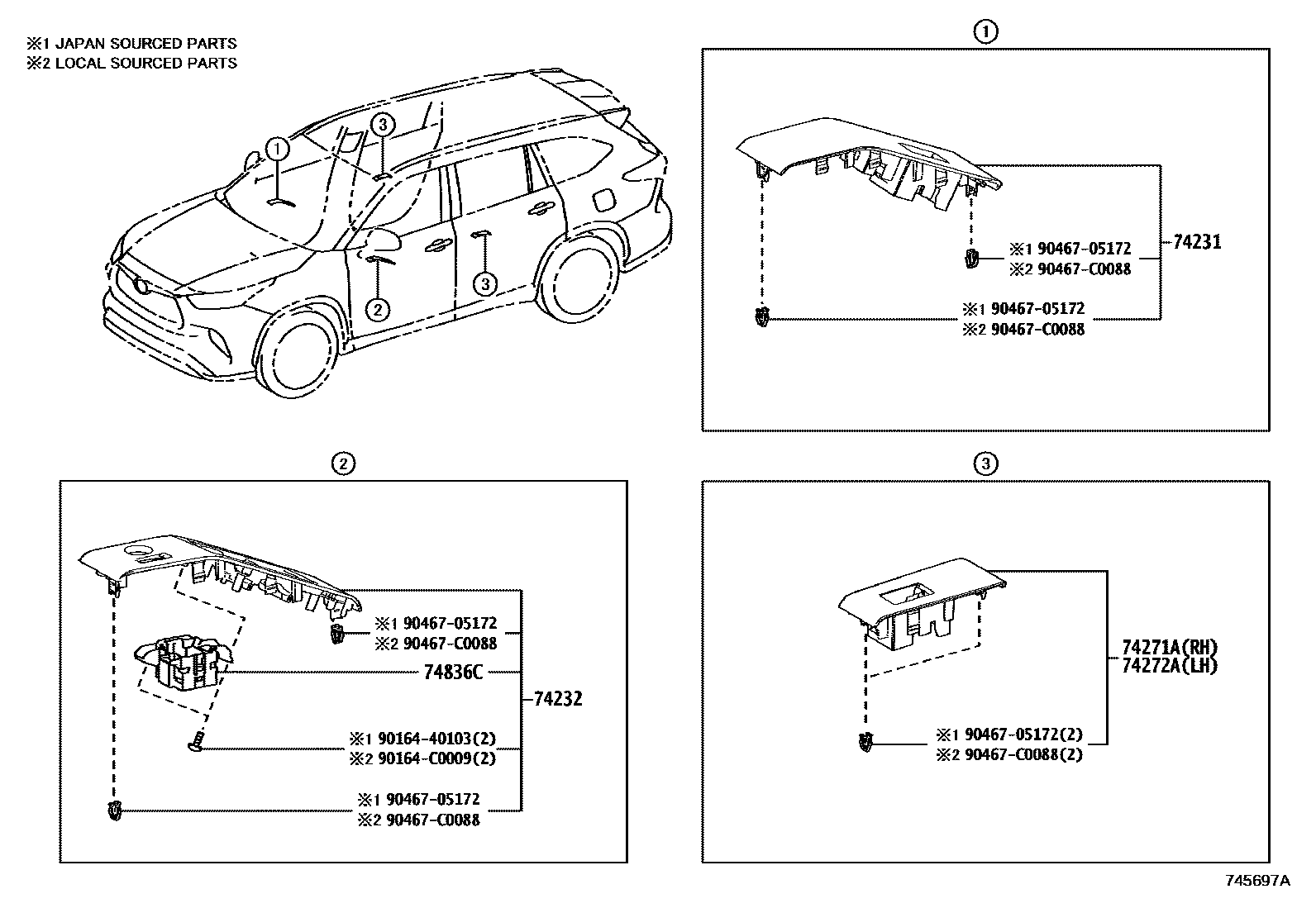

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-0E150iAXUH7#,SXUA75202108-202405

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-0E160iSXUA75;AXUH7#..G,M202108-202405

main74232-0E160iSXUA75;AXUH7#..G,M202405

BASE+ PACKAGE

main74232-0E170iAXUH7#..N202108-202405

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-0E100iAXUH7#,SXUA75202108-202405

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-0E100iAXUH7#,SXUA75202108-202405

74836CBRACKET, SEPARATOR, LOWER LH

main74836-0E040iSXUA75;AXUH7#..G,M202108-202405

main74836-0E040iSXUA75;AXUH7#..G,M202405

BASE+ PACKAGE

main74836-0E060iAXUH7#..N202108-202405

9016440103

main90164-40103

90164C0009

main90164-C0009

9046705172

main90467-05172

90467C0088

main90467-C0088

9 parts on this diagram · 2 diagrams in section
