FRONT SEAT & SEAT TRACK

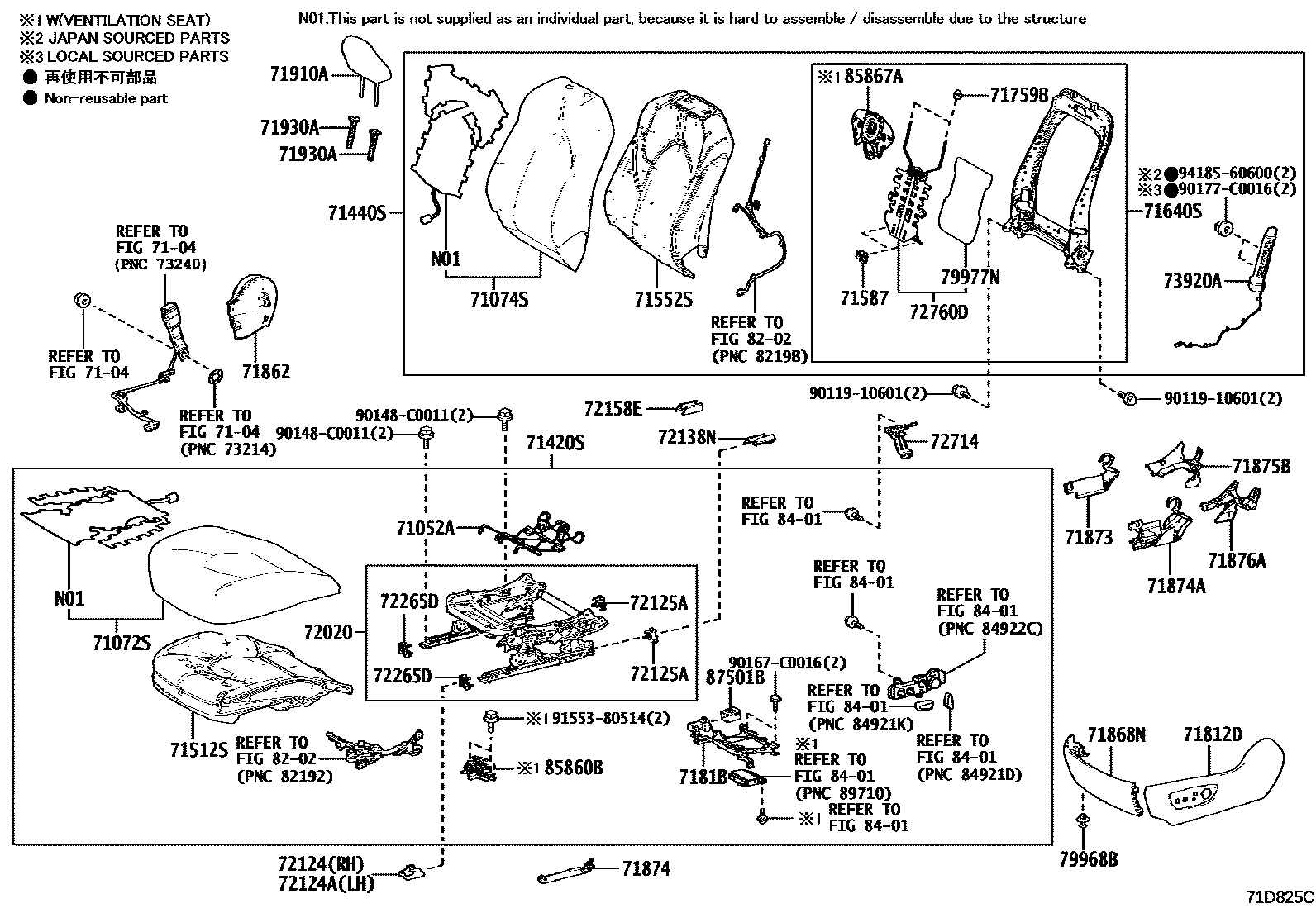

Parts diagram
7104
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-06040i202108-202405
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0E700-C2i202304-202405
BLACK,TRIM20
main71072-0E700-C3i202304-202405
BLACK/BEIGE,TRIM20
main71072-0E700-E2i202108-202209
NEUTRAL BEIGE,TRIM4#
main71072-0E700-E3i202209-202405
OCHER,TRIM42
main71072-0E710-C2i202108-202405
BLACK,TRIM2#
main71072-0E710-E2i202209-202405
NEUTRAL BEIGE,TRIM40
main71072-0E710-E3i202209-202405
OCHER,TRIM42
main71072-0EB50-C0i202405
BLACK,TRIM2#
main71072-0EB50-E0i202405
OCHER,TRIM4#
main71072-0EB90-C0supersedes 71072-0E690-C1i202405-202509
BLACK,TRIM2#
main71072-0EB90-E0i202405-202509
OCHER,TRIM4#
main71072-0EB20-A0i202209-202405
BASE+ PACKAGE,CKD COLOR,TRIM2#
main71072-0EB70-A1i202405
WHITE EDITION,WHITE/MELLOW WHITE,TRIM0#
main71072-0EB80-A0i202405-202509
SEAT COVER MATERIAL-NAPPA LEATHER(FOR WHITE EDITION(SPORT)),WHITE,TRIM0#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0E640-C2i202108-202304
BLACK,TRIM2#
main71074-0E640-C4i202304-202405
BLACK,TRIM2#
main71074-0E640-C5i202304-202405
BLACK/BEIGE,TRIM20
main71074-0E640-E2i202209-202304
NEUTRAL BEIGE,TRIM40
main71074-0E640-E3i202209-202304
OCHER,TRIM42
main71074-0E640-E4i202304-202405
OCHER,TRIM42
main71074-0E640-E5i202304-202405
NEUTRAL BEIGE,TRIM40
main71074-0E650-C2i202108-202304
BLACK,TRIM2#
main71074-0E650-C3i202304-202405
BLACK,TRIM2#
main71074-0E650-E2i202108-202209
NEUTRAL BEIGE,TRIM4#
main71074-0E650-E3i202209-202304
OCHER,TRIM42
main71074-0E650-E4i202304-202405
OCHER,TRIM42
main71074-0E650-E5i202304-202405
NEUTRAL BEIGE,TRIM40
main71074-0EA80-C1i202405
BLACK,TRIM2#
main71074-0EA80-E1i202405
OCHER,TRIM4#
main71074-0EB20-C0supersedes 71074-0E630-C2i202405-202509
BLACK,TRIM2#
main71074-0EB20-E0i202405-202509
OCHER,TRIM4#
main71074-0EA60-A0i202209-202304
BASE+ PACKAGE,CKD COLOR,TRIM2#
main71074-0EA60-A1i202304-202405
BASE+ PACKAGE,CKD COLOR,TRIM2#
main71074-0EB00-A1i202405
WHITE EDITION,WHITE,TRIM0#
main71074-0EB10-A1i202405-202509
SEAT COVER MATERIAL-NAPPA LEATHER(FOR WHITE EDITION(SPORT)),WHITE,TRIM0#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-0E590-C2i202304-202405
BLACK,TRIM20
main71420-0E590-C3i202304-202405
BLACK/BEIGE,TRIM20
main71420-0E590-E2i202209-202405
NEUTRAL BEIGE,TRIM40
main71420-0E590-E3i202209-202405
OCHER,TRIM42
main71420-0E600-C2i202108-202405
BLACK,TRIM2#
main71420-0E600-E2i202108-202209
NEUTRAL BEIGE,TRIM4#
main71420-0E600-E3i202209-202405
OCHER,TRIM42
main71420-0E680-C0i202405-202509
BLACK,TRIM2#
main71420-0E680-E0i202405-202509
OCHER,TRIM4#
main71420-0E850-C0supersedes 71420-0E580-C1i202405-202509
BLACK,TRIM2#
main71420-0E850-E0i202405-202509
OCHER,TRIM4#
main71420-0E820-A0i202405-202509
SEAT COVER MATERIAL-NAPPA LEATHER(FOR WHITE EDITION(SPORT)),WHITE,TRIM0#
main71420-0EB00-C0i202209-202405
BASE+ PACKAGE,BLACK,TRIM2#
main71420-0EB90-A1i202405-202509
WHITE EDITION,WHITE,TRIM0#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-0E560-C1i202405
BLACK,TRIM2#
main71440-0E560-E1i202405
OCHER,TRIM4#
main71440-0E580-C2i202108-202304
BLACK,TRIM2#
main71440-0E580-C4i202304-202405
BLACK,TRIM2#
main71440-0E580-C5i202304-202405
BLACK/BEIGE,TRIM20
main71440-0E580-E2i202108-202209
NEUTRAL BEIGE,TRIM4#
main71440-0E580-E3i202209-202304
OCHER,TRIM42
main71440-0E580-E4i202304-202405
NEUTRAL BEIGE,TRIM40
main71440-0E580-E5i202304-202405
OCHER,TRIM42
main71440-0E590-C2i202108-202304
BLACK,TRIM2#
main71440-0E590-C3i202304-202405
BLACK,TRIM2#
main71440-0E590-E2i202108-202209
NEUTRAL BEIGE,TRIM4#
main71440-0E590-E3i202209-202304
OCHER,TRIM42
main71440-0E590-E4i202304-202405
NEUTRAL BEIGE,TRIM40
main71440-0E590-E5i202304-202405
OCHER,TRIM42
main71440-0EB50-C0supersedes 71440-0E570-C3i202405-202509
BLACK,TRIM2#
main71440-0EB50-E0i202405-202509
OCHER,TRIM4#
main71440-0E510-C0i202209-202304
BASE+ PACKAGE,BLACK,TRIM2#
main71440-0E510-C1i202304-202405
BASE+ PACKAGE,BLACK,TRIM2#
main71440-0EB30-A1i202405
WHITE EDITION,WHITE,TRIM0#
main71440-0EB40-A1i202405-202509
SEAT COVER MATERIAL-NAPPA LEATHER(FOR WHITE EDITION(SPORT)),WHITE,TRIM0#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-0E270supersedes 71512-0E260i202405-202509
BASE+ PACKAGE
main71512-0E280i202108-202405
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-0E160i202405
main71552-0E170i202405
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-06010×4i202108-202405
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-0E200supersedes 71640-0R250i202108-202405
main71640-0E210i202405
71759BHOOK, FRONT SEATBACK
main71759-06030×4i202108-202405
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-0R190-A0i202405
CKD COLOR,TRIM00,4#
main71812-0R190-A2i202405-202509
WHITE SEAFOAM,TRIM0#
main71812-0R190-C0supersedes 71812-0R180-C0i202108-202405
BLACK,TRIM2#
main71812-0R190-E0i202209-202405
NEUTRAL BEIGE,TRIM40
7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
main7181B-0R040supersedes 7181B-06010i202108-202405
main7181B-0R041i202412
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-06340-A0i202405
CKD COLOR,TRIM00,4#
main71862-06340-A2i202405-202509
WHITE SEAFOAM,TRIM0#
main71862-06340-C0i202405
BLACK,TRIM2#
main71862-06340-E0i202209-202405
NEUTRAL BEIGE,TRIM40
71868NSHIELD, FRONT SEAT CUSHION, FRONT LH
main71868-0R070-A0i202405
CKD COLOR,TRIM00,4#
main71868-0R070-A2i202405
WHITE SEAFOAM,TRIM00
main71868-0R070-C0i202108-202405
BLACK,TRIM2#
main71868-0R070-E0i202108-202209
NEUTRAL BEIGE,TRIM4#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71874-0R090i202108-202405
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-0E150-C0i202405
BLACK,TRIM2#
main71874-0R100i202108-202405
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-0R080i202108-202405
71875BCOVER, RECLINING ADJUSTER INSIDE, RH
main71876-0R070-A0i202405
CKD COLOR,TRIM00,4#
main71876-0R070-A2i202405-202509
WHITE SEAFOAM,TRIM0#
main71876-0R070-C0i202108-202405
BLACK,TRIM2#
main71876-0R070-E0i202209-202405
NEUTRAL BEIGE,TRIM40
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71875-0R090-A0i202405
CKD COLOR,TRIM00,4#
main71875-0R090-A2i202405
WHITE SEAFOAM,TRIM00
main71875-0R090-C0i202108-202405
BLACK,TRIM2#
main71875-0R090-E0i202108-202209
NEUTRAL BEIGE,TRIM4#
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71876-0R060-A0i202405
CKD COLOR,TRIM00,4#
main71876-0R060-A2i202405-202509
WHITE SEAFOAM,TRIM0#
main71876-0R060-C0i202108-202405
BLACK,TRIM2#
main71876-0R060-E0i202209-202405
NEUTRAL BEIGE,TRIM40
71910AHEADREST ASSY, FRONT SEAT
main71910-0E470-C1×2i202304-202405
BLACK,TRIM20
main71910-0E470-C2×2i202304-202405
BLACK/BEIGE,TRIM20
main71910-0E470-E1×2i202108-202209
NEUTRAL BEIGE,TRIM4#
main71910-0E470-E2×2i202209-202405
OCHRE,TRIM42
main71910-0E790-C1×2supersedes 71910-0E460-C1i202405
BLACK,TRIM2#
main71910-0E790-E3×2i202405
OCHER,TRIM4#
main71910-0E830-C0×2i202405-202509
BALCK,TRIM2#
main71910-0E830-E0×2i202405-202509
OCHRE,TRIM4#
main71910-0E800-A0×2i202405-202509
SEAT COVER MATERIAL-NAPPA LEATHER(FOR WHITE EDITION(SPORT)),WHITE,TRIM0#
main71910-0E840-A0×2i202405-202509
WHITE EDITION,WHITE,TRIM0#
71930ASUPPORT ASSY, FRONT SEAT HEADREST
main71930-06070-A1×3i202209-202405
W(LOCK),CKD COLOR,TRIM42
main71930-06070-C0×2i202108-202405
W(LOCK),SEAT REAR NO.2-WITHOUT,BLACK,TRIM2#
main71930-06070-E0×2i202209-202405
W(LOCK),NEUTRAL BEIGE,TRIM40
main71931-06060-A1×2i202405
W/O(LOCK),CKD COLOR,TRIM4#
main71931-06060-C0×2i202108-202405
W/O(LOCK),BLACK,TRIM2#
main71931-06060-E0×3i202209-202405
W/O(LOCK),NEUTRAL BEIGE,TRIM40
main71930-06070-A3×2i202405
W(LOCK),WHITE EDITION,WHITE SEAFOAM,TRIM0#
main71931-06060-A3×2i202405-202509
W/O(LOCK),SEAT COVER MATERIAL-NAPPA LEATHER(FOR WHITE EDITION(SPORT)),WHITE SEAFOAM,TRIM0#
72020ADJUSTER ASSY, FRONT SEAT, LH
main72020-0E270i202405-202509
main72020-0R180supersedes 72020-0R170i202405-202509
BASE+ PACKAGE
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72123-06110i202108-202405
72124ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72123-06110i202108-202405
72125ACOVER, SEAT TRACK, UPPER REAR
main72125-06050×4supersedes 72125-06060i202108-202405
72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH
main72137-06130i202108-202405
72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH
main72158-06200i202108-202405
72265DCOVER, SEAT TRACK UPPER RAIL
main72265-06020×4supersedes 72265-06030i202108-202405
72714BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH
main72714-0R020i202108-202405
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72750-02080i202108-202405
main72750-0R010i202405
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-02360i202108-202405
79968BCLIP
main90467-07215×2i202108-202405
79977NFELT, SEATBACK
main79977-06080supersedes 79977-0R080i202108-202405
8202
8401
85860BBLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH
main85802-0R020i202108-202405
85867ABLOWER, SEATBACK CLIMATE CONTROL, LH
main85867-0R040i202108-202405
87501BCONTROL SUB-ASSY, SEAT HEATER, LH
main87501-06020i202405
BASE+ PACKAGE
9011910601
main90119-10601
90148C0011
main90148-C0011
90167C0016
main90167-C0016
90177C0016
main90177-C0016
9155380514
main91553-80514
9418560600
main94185-60600

46 parts on this diagram · 4 diagrams in section
