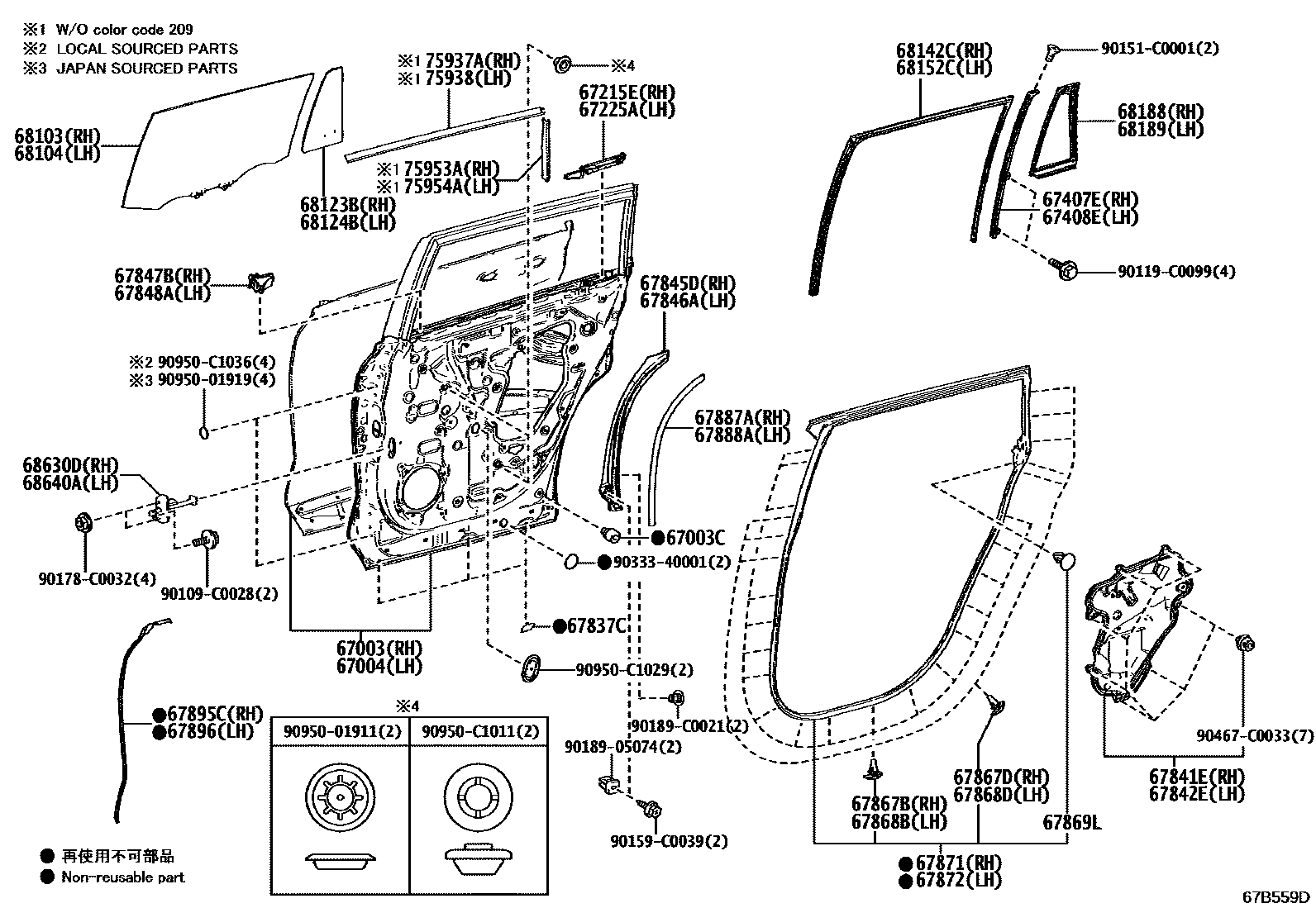

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0E200iAXUH7#,SXUA75202108-202309

main67003-0E201iAXUH7#,SXUA75202309-202405

67003CCUSHION, REAR DOOR PANEL

main90541-C0003×2iAXUH7#,SXUA75202108-202405

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0E200iAXUH7#,SXUA75202108-202309

main67004-0E201iAXUH7#,SXUA75202309-202405

67215ESTOP, QUARTER WINDOW, UPPER RH

main67215-0E040iAXUH7#,SXUA75202108-202405

67225ASTOP, QUARTER WINDOW, UPPER LH

main67225-0E040iAXUH7#,SXUA75202108-202405

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-0E120iAXUH7#,SXUA75202108-202405

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-0E110iAXUH7#,SXUA75202108-202405

67837CSEAL, REAR DOOR DUST PROOF

main67837-02230×6iAXUH7#,SXUA75202108-202405

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0E110iAXUH7#,SXUA75202108-202405

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-0E110iAXUH7#,SXUA75202108-202405

67845DSEAL, REAR DOOR FRONT OUTSIDE, RH

main67845-0E040iAXUH7#,SXUA75202108-202405

67846ASEAL, REAR DOOR FRONT OUTSIDE, LH

main67846-0E040iAXUH7#,SXUA75202108-202405

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-0E100iAXUH7#,SXUA75202108-202405

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-0E070iAXUH7#,SXUA75202108-202405

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-12150×18iAXUH7#,SXUA75202108-202405

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-0D070×8iAXUH7#,SXUA75202405

(L)

main67867-12150×8iAXUH7#,SXUA75202405

(J)

67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)

main67867-12150×18iAXUH7#,SXUA75202108-202405

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-0D070×8iAXUH7#,SXUA75202405

(L)

main67867-12150×8iAXUH7#,SXUA75202405

(J)

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-26050×2iAXUH7#,SXUA75202405

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0E100iAXUH7#,SXUA75202405

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0E100iAXUH7#,SXUA75202108-202405

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-0E110iAXUH7#,SXUA75202108-202405

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-0E110iAXUH7#,SXUA75202108-202405

67895CWEATHERSTRIP, REAR DOOR, NO.3 RH

main67895-0E080iAXUH7#,SXUA75202108-202405

67896WEATHERSTRIP, REAR DOOR, NO.3 LH

main67896-0E070iAXUH7#,SXUA75202405

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-0E160iAXUH7#,SXUA75..G,M202405-202509

main68103-0E170iAXUH7#,SXUA75..N202108-202405

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-0E160iAXUH7#,SXUA75..G,M202405-202509

main68104-0E170iAXUH7#,SXUA75..N202108-202405

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-0E120iAXUH7#,SXUA75..G,M202108-202405

main68123-0E130iAXUH7#,SXUA75..N202405-202509

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-0E120iAXUH7#,SXUA75..G,M202108-202405

main68124-0E130iAXUH7#,SXUA75..N202108-202405

68142CRUN, REAR DOOR GLASS, RH

main68142-0E100iAXUH7#,SXUA75202108-202309

main68142-0E101iAXUH7#,SXUA75202309-202405

68152CRUN, REAR DOOR GLASS, LH

main68152-0E100iAXUH7#,SXUA75202108-202309

main68152-0E101iAXUH7#,SXUA75202309-202405

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-0E060iAXUH7#,SXUA75202108-202405

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-0E060iAXUH7#,SXUA75202108-202405

68630DCHECK ASSY, REAR DOOR, RH

main68630-0E110iAXUH7#,SXUA75202108-202405

68640ACHECK ASSY, REAR DOOR, LH

main68640-0E110iAXUH7#,SXUA75202108-202405

75937ATAPE, BLACK OUT, INNER UPPER RH

main75937-0E080iAXUH7#,SXUA75202108-202405

0 OR 1PIECE,REF.ILL.

75938TAPE, BLACK OUT, INNER UPPER LH

main75938-0E080iAXUH7#,SXUA75202108-202405

0 OR 1PIECE,REF.ILL.

75953ATAPE, BLACK OUT, INNER REAR RH

main75953-0E090iAXUH7#,SXUA75202405

0 OR 1PIECE,REF.ILL.

75954ATAPE, BLACK OUT, INNER REAR LH

main75954-0E090iAXUH7#,SXUA75202108-202405

0 OR 1PIECE,REF.ILL.

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90151C0001

main90151-C0001

90159C0039

main90159-C0039

90178C0032

main90178-C0032

9018905074

main90189-05074

90189C0021

main90189-C0021

9033340001

main90333-40001

90467C0033

main90467-C0033

9095001911

main90950-01911

9095001919

main90950-01919

90950C1011

main90950-C1011

90950C1029

main90950-C1029

90950C1036

main90950-C1036

53 parts on this diagram · 2 diagrams in section
