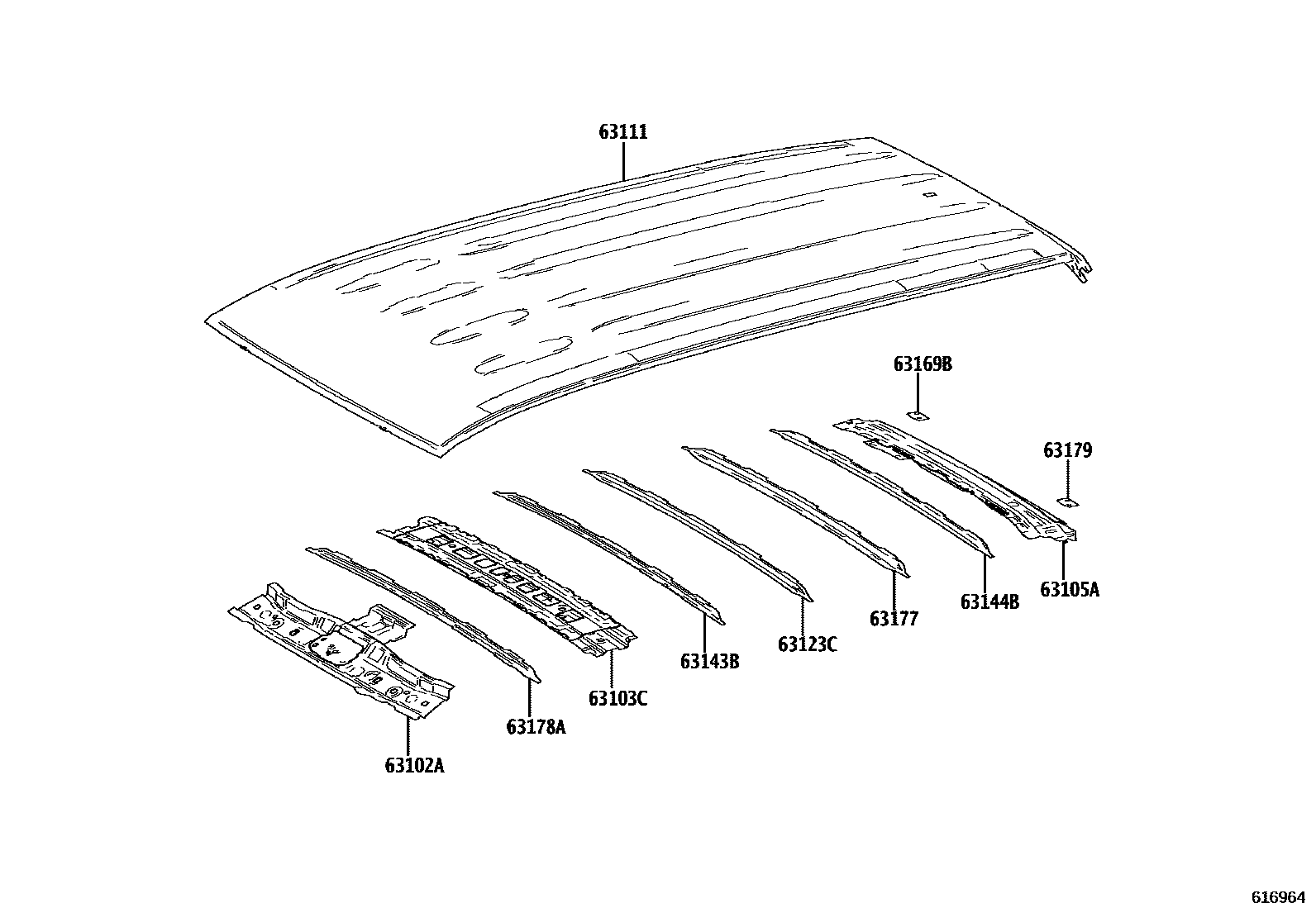

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL(NORMAL ROOF) 0002 1ROOF PANEL(PANORAMA ROOF) 0003 1PANORAMA ROOF 0004 1ROOF RAIL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0E914iSXUA75;AXUH7#..G,M202108-202405

main63102-0E914iSXUA75;AXUH7#..G,M202405

BASE+ PACKAGE

main63102-0E915iAXUH7#..N202108-202405

63103CREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-0E120iSXUA75;AXUH7#..G,M202405

BASE+ PACKAGE

main63103-0E120iSXUA75;AXUH7#..G,M202108-202405

main63103-0E130iAXUH7#..N202108-202405

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0E110iAXUH7#,SXUA75202108-202306

main63105-0E111iAXUH7#,SXUA75202307-202405

63111PANEL, ROOF

main63111-0E430iAXUH7#..N202405

BASE+ PACKAGE

main63111-0E430iSXUA75;AXUH7#..G,M202108-202405

main63111-0E440iAXUH7#..N202108-202405

63123CREINFORCEMENT, ROOF PANEL

main63123-0E130iAXUH7#..N202108-202405

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-0E150iAXUH7#..N202108-202405

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-0E130iAXUH7#,SXUA75202108-202405

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-0E090iAXUH7#,SXUA75202108-202405

63177REINFORCEMENT, ROOF PANEL, NO.9

main63177-0E050iAXUH7#..N202108-202405

63178AREINFORCEMENT, ROOF PANEL, NO.10

main63178-0E050iAXUH7#..N202108-202405

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63169-0E090iAXUH7#,SXUA75202108-202405

11 parts on this diagram · 4 diagrams in section
