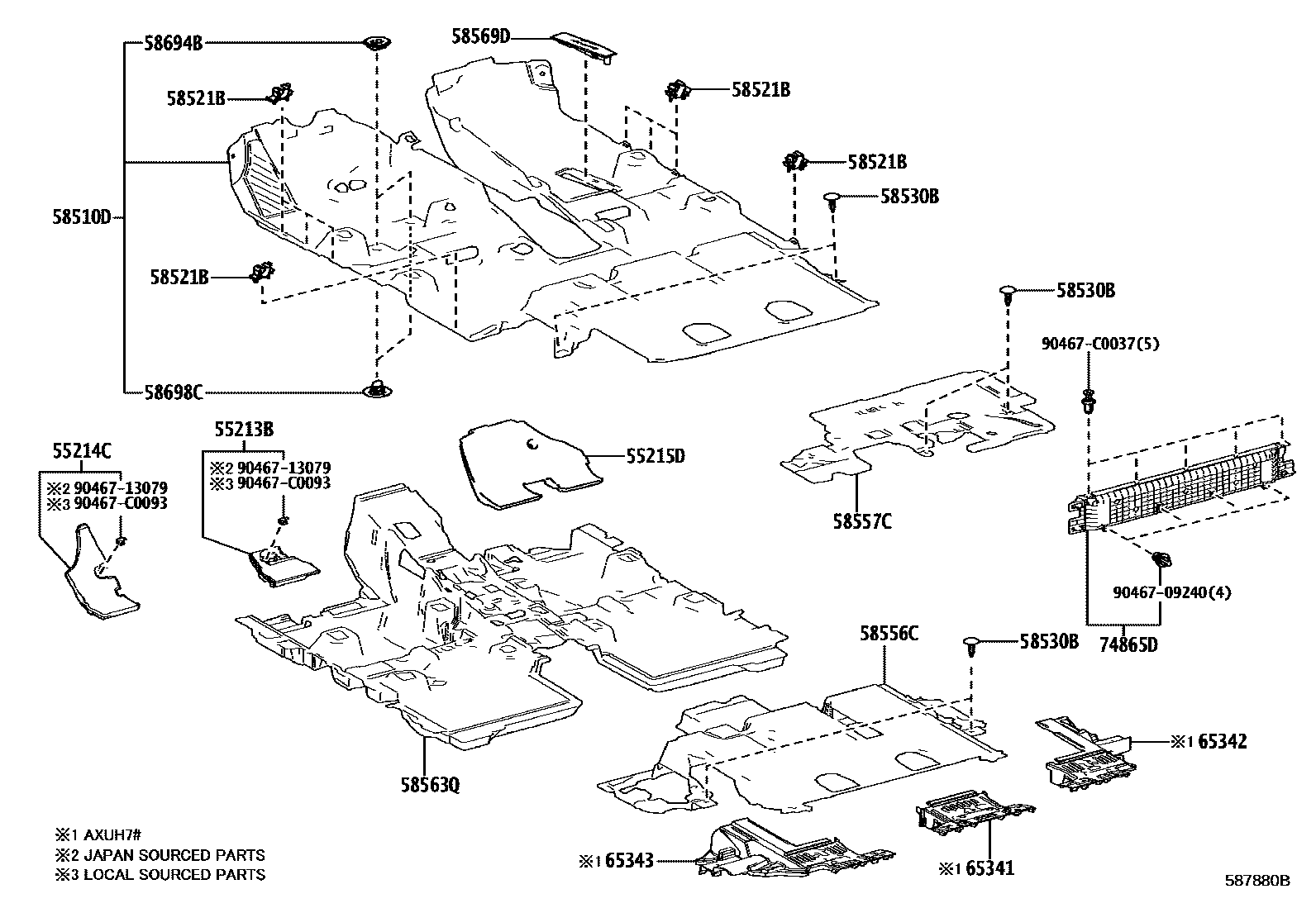

MAT & CARPET

0001 1FLOOR CARPET 0002 1FLOOR MAT

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-0E090iAXUH7#,SXUA75202405

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-0E040iAXUH7#,SXUA75202108-202405

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-0E040iAXUH7#,SXUA75202405

58510DCARPET ASSY, FLOOR, FRONT

main58510-0E400-C0iAXUH7#..G,M; AXUH7#..N202108-202405

CARPET,TRIM2#; CARPET,TRIM2#,4#

main58510-0E560-C0iSXUA75..G,M; SXUA75..N202405

CARPET,TRIM0#,2#,4#; CARPET,TRIM2#,4#

58521BHOOK, FLOOR CARPET

main58521-0E140×8iAXUH7#,SXUA75202405

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-C0049×6iAXUH7#,SXUA75202108-202405

58556CSILENCER, REAR FLOOR

main58556-0E120iAXUH7#202405

main58556-0E140iSXUA75202209-202405

58557CSILENCER, REAR FLOOR, NO.2

main58557-0E080iAXUH7#202405

main58557-0E100iSXUA75202209-202405

58563QSILENCER, FRONT FLOOR, NO.3

main58563-0E070iAXUH7#,SXUA75202405

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-0R040-C0iAXUH7#..N; SXUA75;AXUH7#..G,M202108-202405

BLACK,TRIM2#; BLACK,TRIM2#,4#

58694BPLATE, MAT SET, UPPER

main58694-33010×2iAXUH7#,SXUA75202108-202405

58698CPLATE, MAT SET, LOWER

main58698-33010×2iAXUH7#,SXUA75202108-202405

65341BOARD, FLOOR, NO.1

main65341-0E040iAXUH7#202108-202405

65342BOARD, FLOOR, NO.2

main65342-0E040iAXUH7#202108-202405

65343BOARD, FLOOR, NO.3

main65343-0E040iAXUH7#202108-202405

74865DCOVER, CENTER PROTECTOR

main74865-0E060-C0iAXUH7#..N; SXUA75;AXUH7#..G,M202108-202405

BLACK,TRIM2#; BLACK,TRIM2#,4#

9046709240

main90467-09240

9046713079

main90467-13079

90467C0037

main90467-C0037

90467C0093

main90467-C0093

20 parts on this diagram · 2 diagrams in section
