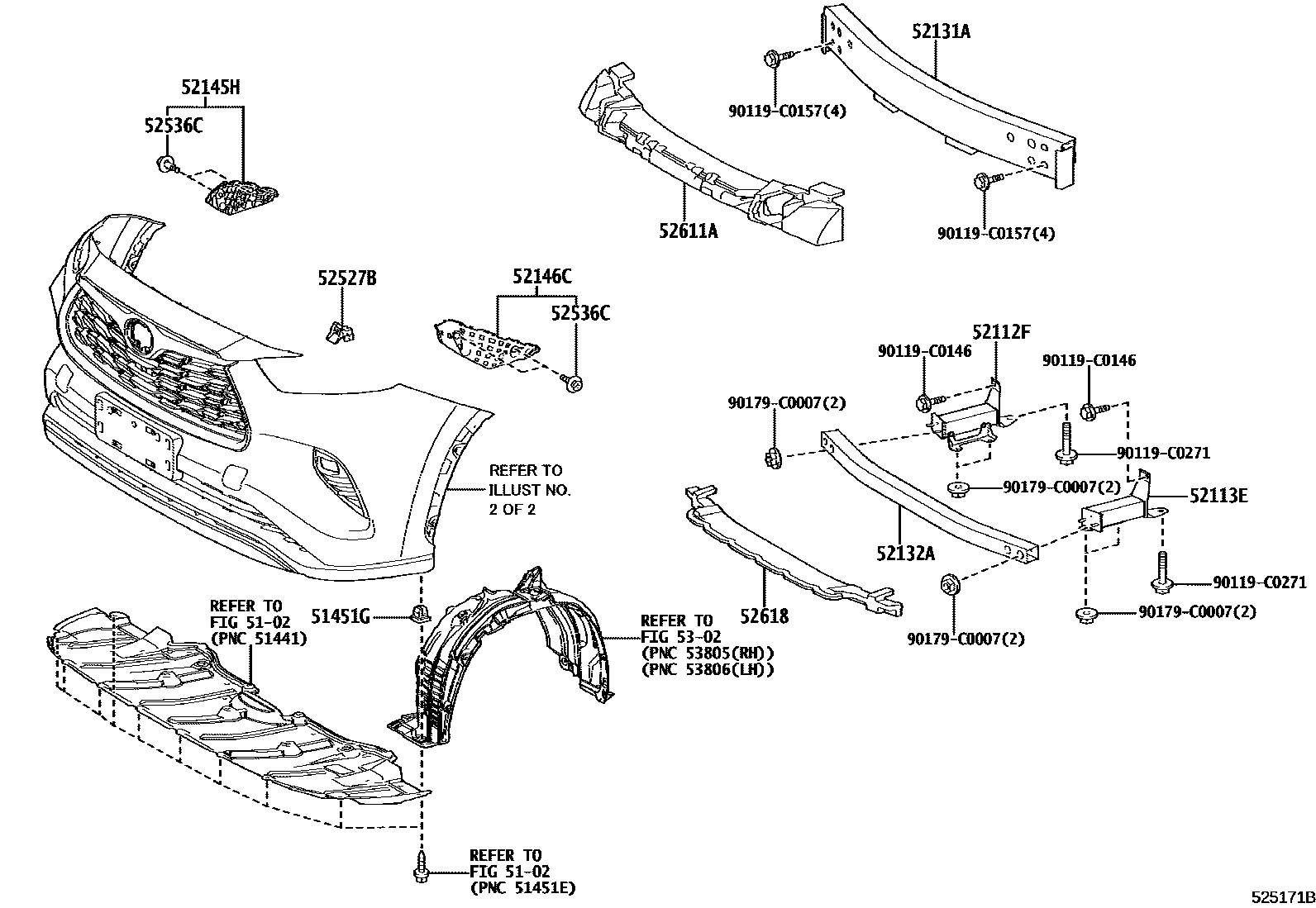

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102

51451GGROMMET, NO.2

main90189-C0024iAXUH7#,SXUA75202108-202405

52112FEXTENSION, FRONT BUMPER, RH

main52102-0E040iAXUH7#,SXUA75202108-202405

NO PAINT REQ.

52113EEXTENSION, FRONT BUMPER, LH

main52103-0E020iAXUH7#,SXUA75202108-202405

NO PAINT REQ.

52131AREINFORCEMENT, FRONT BUMPER

main52021-0E130iAXUH7#,SXUA75202108-202405

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-0E020iAXUH7#,SXUA75202108-202405

52145HSTAY, FRONT BUMPER SIDE, RH

main52145-0E130iAXUH7#,SXUA75202108-202405

52146CSTAY, FRONT BUMPER SIDE, LH

main52146-0E130iAXUH7#,SXUA75202108-202405

52527BRETAINER, FRONT BUMPER, LOWER NO.2

main52527-0E020iAXUH7#,SXUA75202108-202405

52536CCLIP, FRONT BUMPER SIDE RETAINER

main90467-09237iAXUH7#,SXUA75202108-202405

(J)

main90467-C0058iAXUH7#,SXUA75202108-202405

(L)

52611AABSORBER, FRONT BUMPER ENERGY, RH

main52611-0E180iAXUH7#,SXUA75202108-202405

52618ABSORBER, FRONT BUMPER, LOWER

main52618-0E070iAXUH7#,SXUA75202108-202405

5302

90119C0146

main90119-C0146

90119C0157

main90119-C0157

90119C0271

main90119-C0271

90179C0007

main90179-C0007

17 parts on this diagram · 2 diagrams in section
