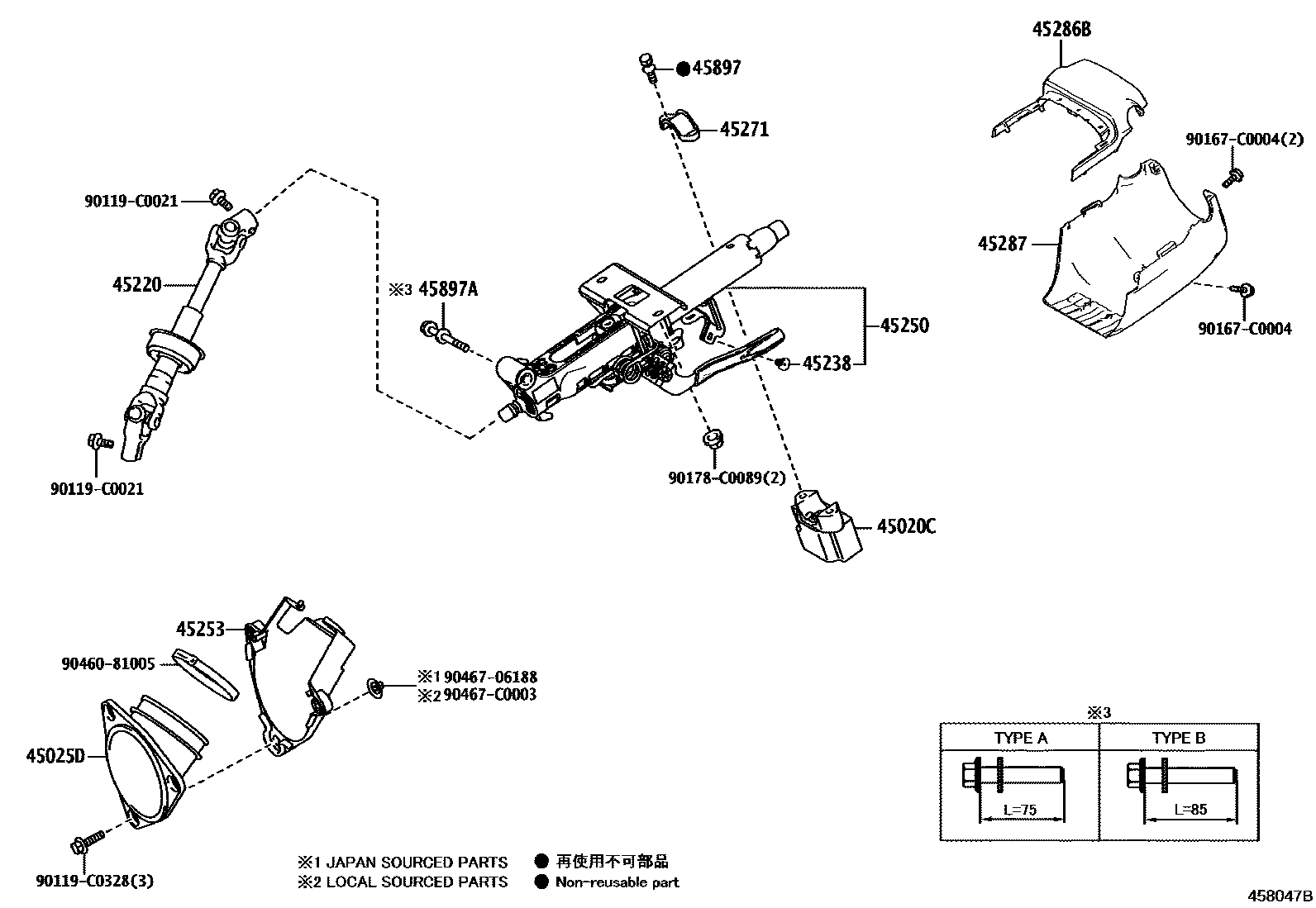

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-06290iAXUH7#202108-202209

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0R060iAXUH7#,SXUA75202405

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-0E090iAXUH7#,SXUA75202405

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iAXUH7#,SXUA75202405

45250COLUMN ASSY, STEERING

main45250-06B81iAXUH7#,SXUA75202108-202405

45253COVER, STEERING COLUMN HOLE

main45253-0E100iAXUH7#,SXUA75202405

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iAXUH7#202108-202209

45286BCOVER, STEERING COLUMN, UPR

main45286-06340-C0iAXUH7#,SXUA75..G,M; AXUH7#..N; SXUA75..N202405

BLACK,TRIM0#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#

45287COVER, STEERING COLUMN, LWR

main45287-06450-C0iAXUH7#..N; SXUA75;AXUH7#..G,M202108-202405

BLACK,TRIM2#; BLACK,TRIM2#,4#

45897BOLT, STEERING LOCK SET

main45897-12020×2iAXUH7#202108-202209

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iAXUH7#,SXUA75202108-202405

TYPE A:REFER ILLUST.

main90119-C0427iAXUH7#,SXUA75202108-202405

TYPE B:REFER ILLUST.

90119C0021

main90119-C0021

90119C0328

main90119-C0328

90167C0004

main90167-C0004

90178C0089

main90178-C0089

9046081005

main90460-81005

9046706188

main90467-06188

90467C0003

main90467-C0003

18 parts on this diagram · 1 diagram in section
