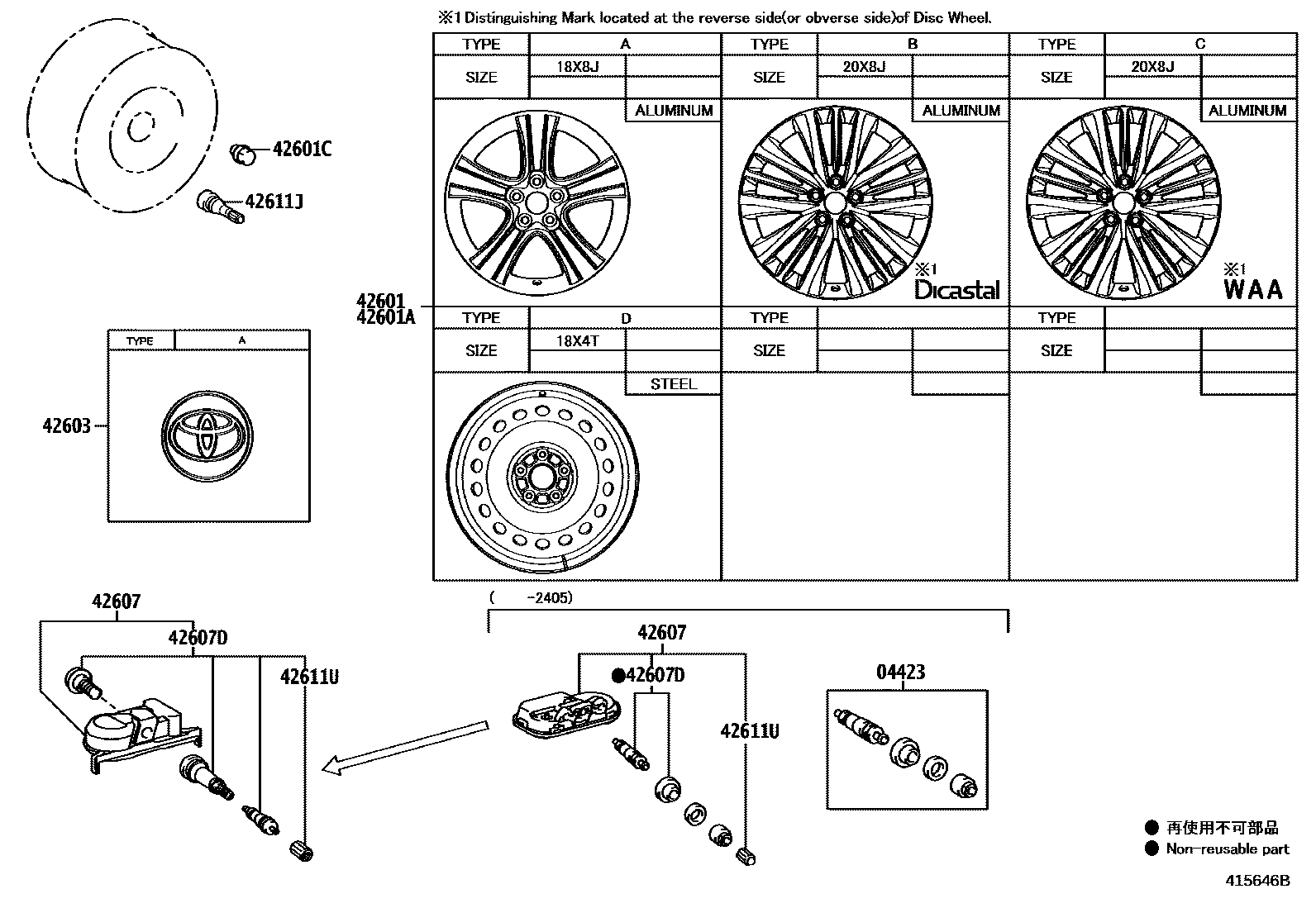

DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL & WHEEL HUB ORNAME0002 1BALANCE WEIGHT

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-0N020202108-202405

42601WHEEL, DISC

main42611-0E670202108-202405

main4261A-0E220202108-202405

main4261A-0E230202108-202405

42601AWHEEL, DISC (FOR SPARE)

main4261B-0E010202108-202405

42601CNUT, HUB (FOR AXLE)

main90942-C1001202108-202405

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-02320202108-202405

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-02110202405

main42607-0E040202108-202405

42607DVALVE, TIRE PRESSURE MONITOR

main90942-C5007202108-202405

main90942-C5009202405

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009202108-202405

main90942-C5005202108-202405

42611UCAP, TIRE VALVE

main90942-C5001202405

main90942-C5006202108-202405

9 parts on this diagram · 2 diagrams in section
