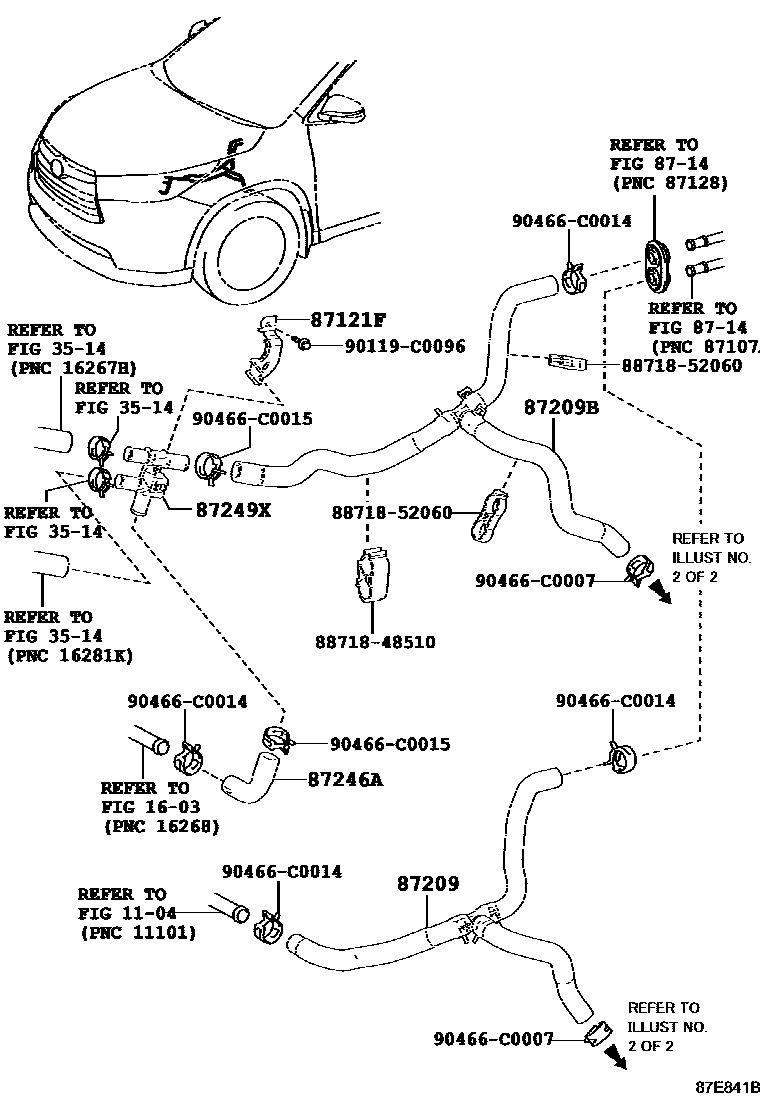

Toyota HIGHLANDER (CHINA)520 — HEATING & AIR CONDITIONING - WATER PIPING
1104CYLINDER HEAD
1603RADIATOR & WATER OUTLET
3514OIL COOLER & TUBE (ATM)
87121FBRACKET, HEATER
8714HEATING & AIR CONDITIONING - COOLER UNIT
87209BHOSE SUB-ASSY, WATER, B
87246AHOSE, HEATER WATER, OUTLET A
87249XPIPE, WATER
8871848510PIPE, COOLER REFRIGERANT SUCTION, NO.2
8871852060PIPE, COOLER REFRIGERANT SUCTION, NO.2
90119C0096
90466C0007
90466C0014
90466C0015
15 parts on this diagram · 3 diagrams in section
HEATING & AIR CONDITIONING - WATER PIPING for Toyota HIGHLANDER (CHINA)520
This section contains 30 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota HIGHLANDER (CHINA)520. Key components include: CYLINDER HEAD, RADIATOR & WATER OUTLET, OIL COOLER & TUBE (ATM), BRACKET, HEATER, HEATING & AIR CONDITIONING - COOLER UNIT.
