HEATING & AIR CONDITIONING - COOLER UNIT

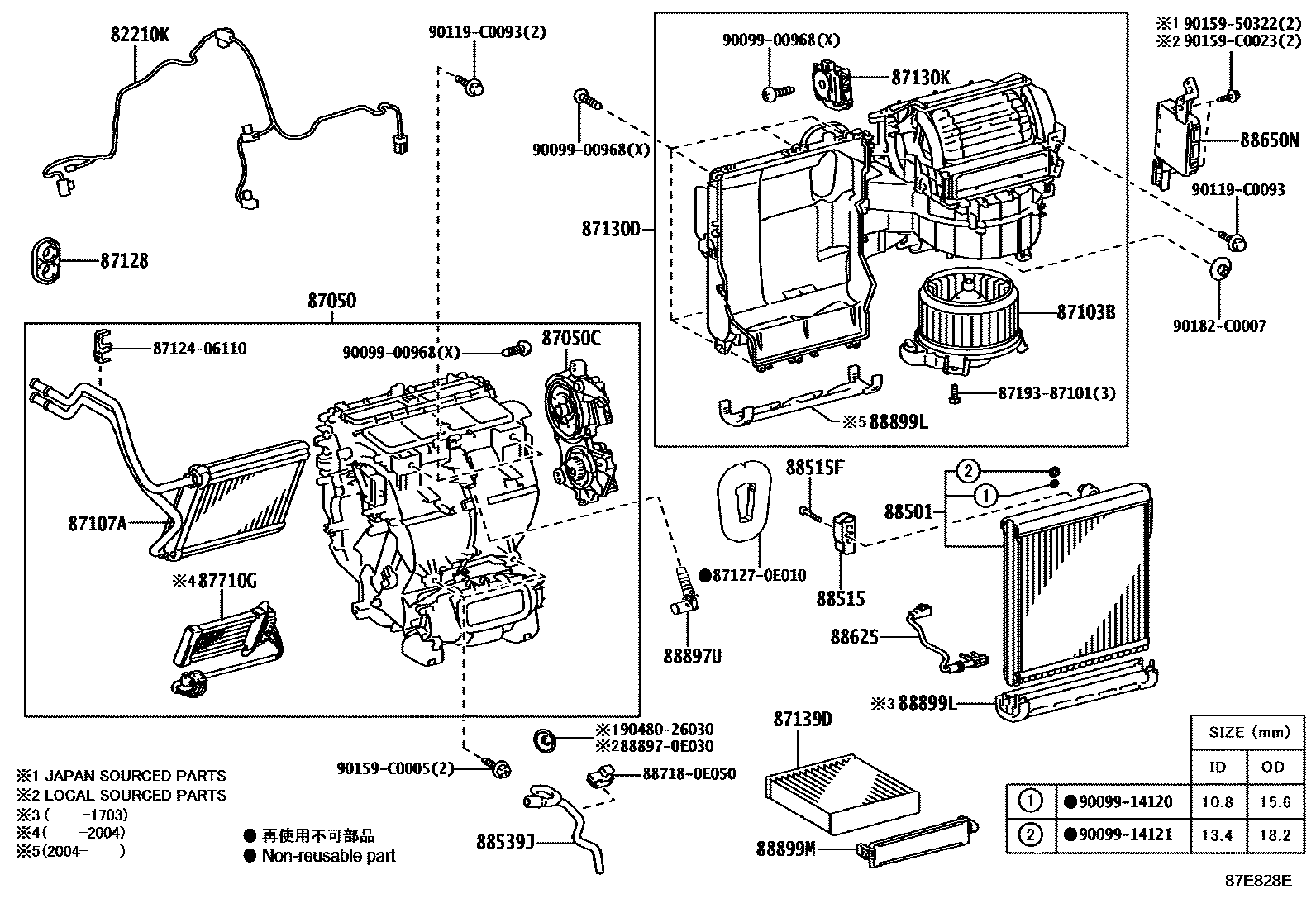

0001 1FRONT MANUAL AIR CONDITIONER 0002 1FRONT AUTO AIR CONDITIONER 0003 1REAR

82210KHARNESS ASSY, AIR CONDITIONER

main82212-06040iASU5#,GSU55..LIMD,SPO201503-201510

main82212-06041iASU5#..LIMD,SPO201803

main82212-0E010iASU5#,GSU55..D201503-201510

main82212-0E011iASU5#,GSU55..D201511-201803

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0E040iGSU55..D201503-201710

main87050-0E050iASU5#..LIMD,SPO201503-201803

main87050-0E360iASU5#..D202004

main87050-0E370iASU5#..LIMD,SPO202004

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-0E080iGSU55201503-201710

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0E070iASU5#201503-201803

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-06080iGSU55201503-201710

87128GROMMET, HEATER

main90480-01696iGSU55201503-201710

87130DBLOWER ASSY

main87130-06360iASU5#,GSU55201503-201703

main87130-06361iASU5#201803

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-06240iASU5#201503-201803

87139DELEMENT, AIR REFINER

main87139-06140iGSU55201503-201710

MICRO DUST FILTER

main87139-50100iGSU55201503-201710

*DPF

87710GQUICK HEATER ASSY

main87710-0E010iGSU55201503-201710

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-06350iGSU55201503-201703

main88501-06450iASU5#201803

main88501-0E070iASU5#201503-201703

main88501-0E160iGSU55201703-201710

88515VALVE, COOLER EXPANSION

main88515-06100iASU5#201503-201803

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iGSU55201503-201710

88539JHOSE, DRAIN COOLER

main88539-0E031iGSU55201503-201710

88625THERMISTOR, COOLER, NO.1

main88620-0E020iGSU55201503-201710

main88620-0E030iASU5#201503-201803

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0E370iASU5#..D201503-201803

main88650-0E371iASU5#..D201803

main88650-0E380iGSU55..SPO201503-201710

main88650-0E381iASU5#..SPO201803

main88650-0E390iASU5#..LIMD201503-201803

main88650-0E391iASU55..LIMD201803

88897UPIPE, ASPIRATOR

main88897-06030iASU5#,GSU55..D201503-201803

88899LPARTS, COOLING UNIT

main88578-0E120iASU5#202004

main88899-06130iASU5#,GSU55201503-201703

88899MPLATE, COVER(FOR AIR FILTER)

main88899-06070iGSU55201503-201710

8712406110CLAMP, HEATER

main87124-06110

871270E010PACKING, HEATER AIR DAMPER

main87127-0E010

8719387101

main87193-87101

887180E050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0E050

888970E030VALVE, COOLER MAGNET

main88897-0E030

9009900968

main90099-00968

9009914120

main90099-14120

9009914121

main90099-14121

90119C0093

main90119-C0093

9015950322

main90159-50322

90159C0005

main90159-C0005

90159C0023

main90159-C0023

90182C0007

main90182-C0007

9048026030

main90480-26030

33 parts on this diagram · 3 diagrams in section
