Toyota HIGHLANDER (CHINA)520 — NAVIGATION & FRONT MONITOR DISPLAY

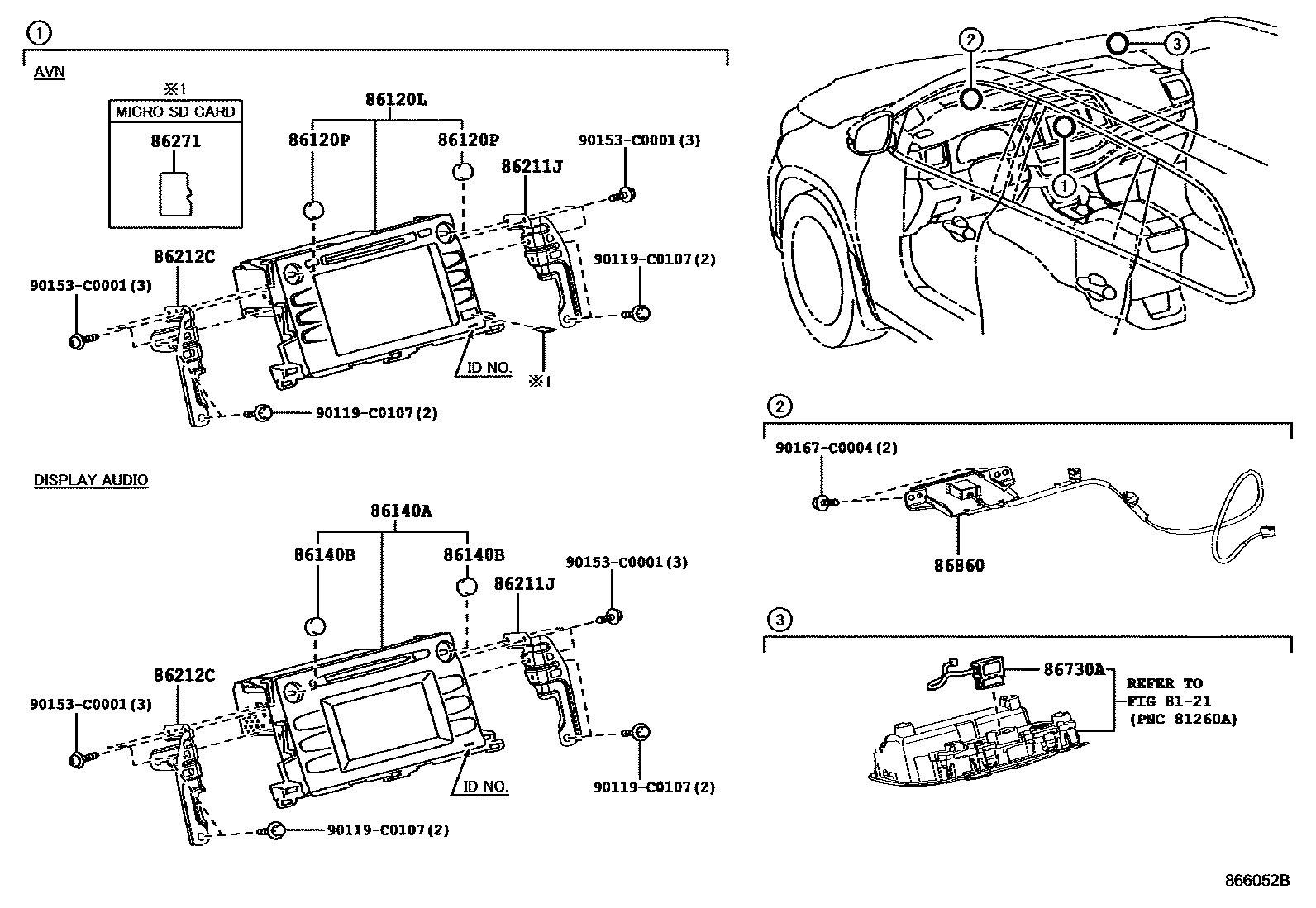

Parts diagram
8121INTERIOR LAMP
→ Go to FIG 81-21
86120LRECEIVER ASSY, NAVIGATION
86120PKNOB, NAVIGATION RECEIVER SWITCH
86140ARECEIVER ASSY, RADIO & DISPLAY
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
86211JBRACKET, RADIO RECEIVER, NO.1
86212CBRACKET, RADIO RECEIVER, NO.2
86271DISC, DISC PLAYER
86845-0G010
86845-0G012
86271-0E200
86271-0E201
86271-0E202
86271-0E203
86271-0E204
86730AMICROPHONE ASSY, TELEPHONE
86860ANTENNA ASSY, NAVIGATION
86860-0E080
90119C0107
90119-C0107
90153C0001
90153-C0001
90167C0004
90167-C0004

13 parts on this diagram · 2 diagrams in section

NAVIGATION & FRONT MONITOR DISPLAY for Toyota HIGHLANDER (CHINA)520

This section contains 13 genuine Toyota parts for the NAVIGATION & FRONT MONITOR DISPLAY system of the Toyota HIGHLANDER (CHINA)520. Key components include: INTERIOR LAMP, RECEIVER ASSY, NAVIGATION, KNOB, NAVIGATION RECEIVER SWITCH, RECEIVER ASSY, RADIO & DISPLAY, KNOB, RADIO & DISPLAY RECEIVER SWITCH.
