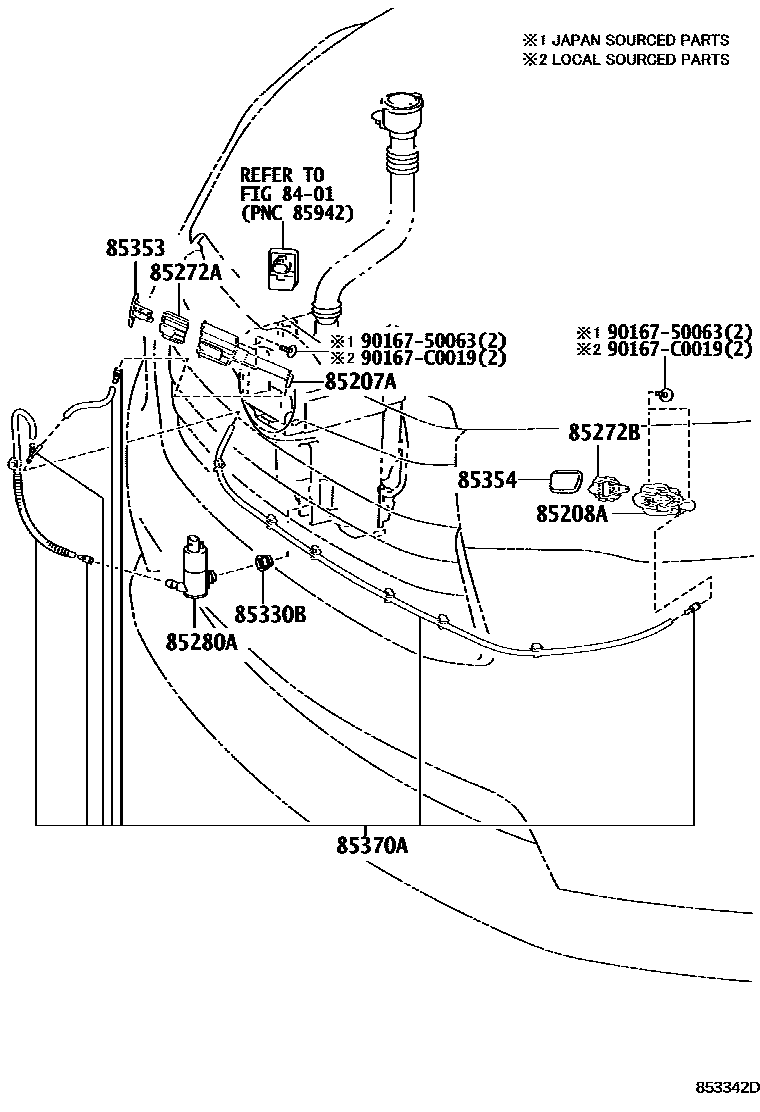

Toyota 522320 — HEADLAMP CLEANER
8401SWITCH & RELAY & COMPUTER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85272ACLAMP, HEADLAMP CLEANER, NO.1
85272BCLAMP, HEADLAMP CLEANER, NO.2
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85370AHOSE ASSY, HEADLAMP CLEANER WASHER, NO.1
9016750063
90167C0019
12 parts on this diagram · 1 diagram in section
HEADLAMP CLEANER for Toyota 522320
This section contains 12 genuine Toyota parts for the HEADLAMP CLEANER system of the Toyota 522320. Key components include: SWITCH & RELAY & COMPUTER, ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH, ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH, CLAMP, HEADLAMP CLEANER, NO.1, CLAMP, HEADLAMP CLEANER, NO.2.
