Toyota HIGHLANDER (CHINA)520 — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

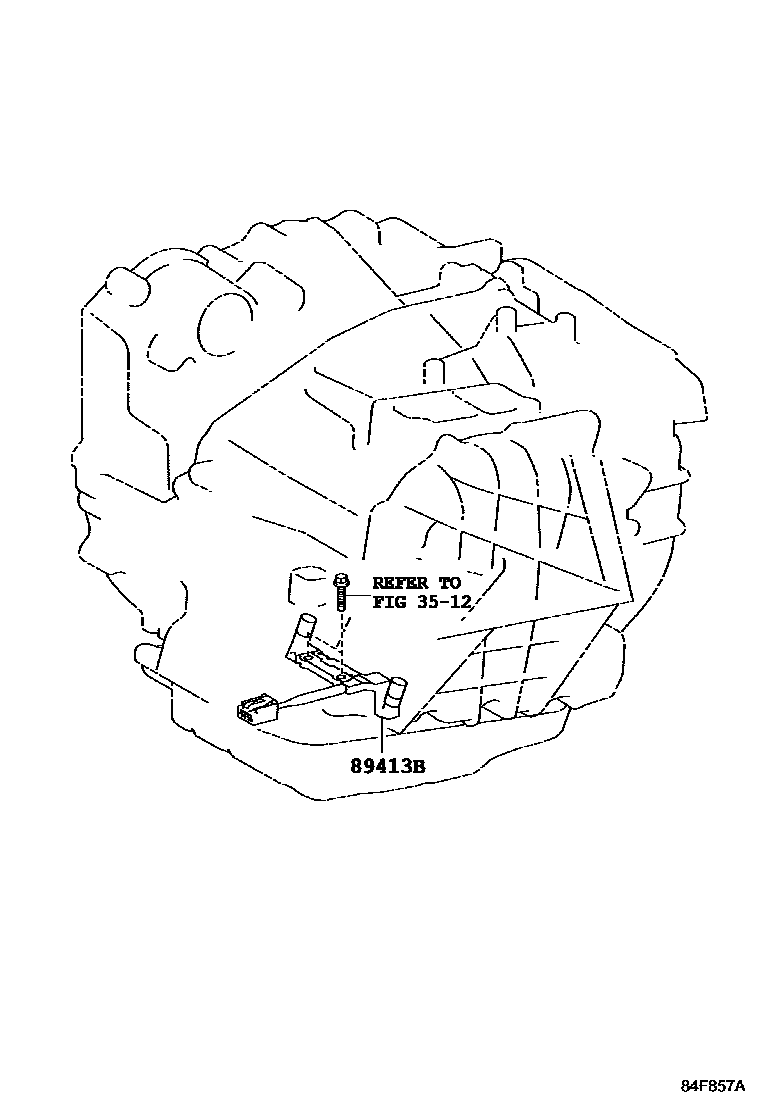

Parts diagram
3512VALVE BODY & OIL STRAINER (ATM)
→ Go to FIG 35-12
89413BSENSOR, TRANSMISSION REVOLUTION

2 parts on this diagram · 1 diagram in section

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION for Toyota HIGHLANDER (CHINA)520

This section contains 2 genuine Toyota parts for the OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION system of the Toyota HIGHLANDER (CHINA)520. Key components include: VALVE BODY & OIL STRAINER (ATM), SENSOR, TRANSMISSION REVOLUTION.
