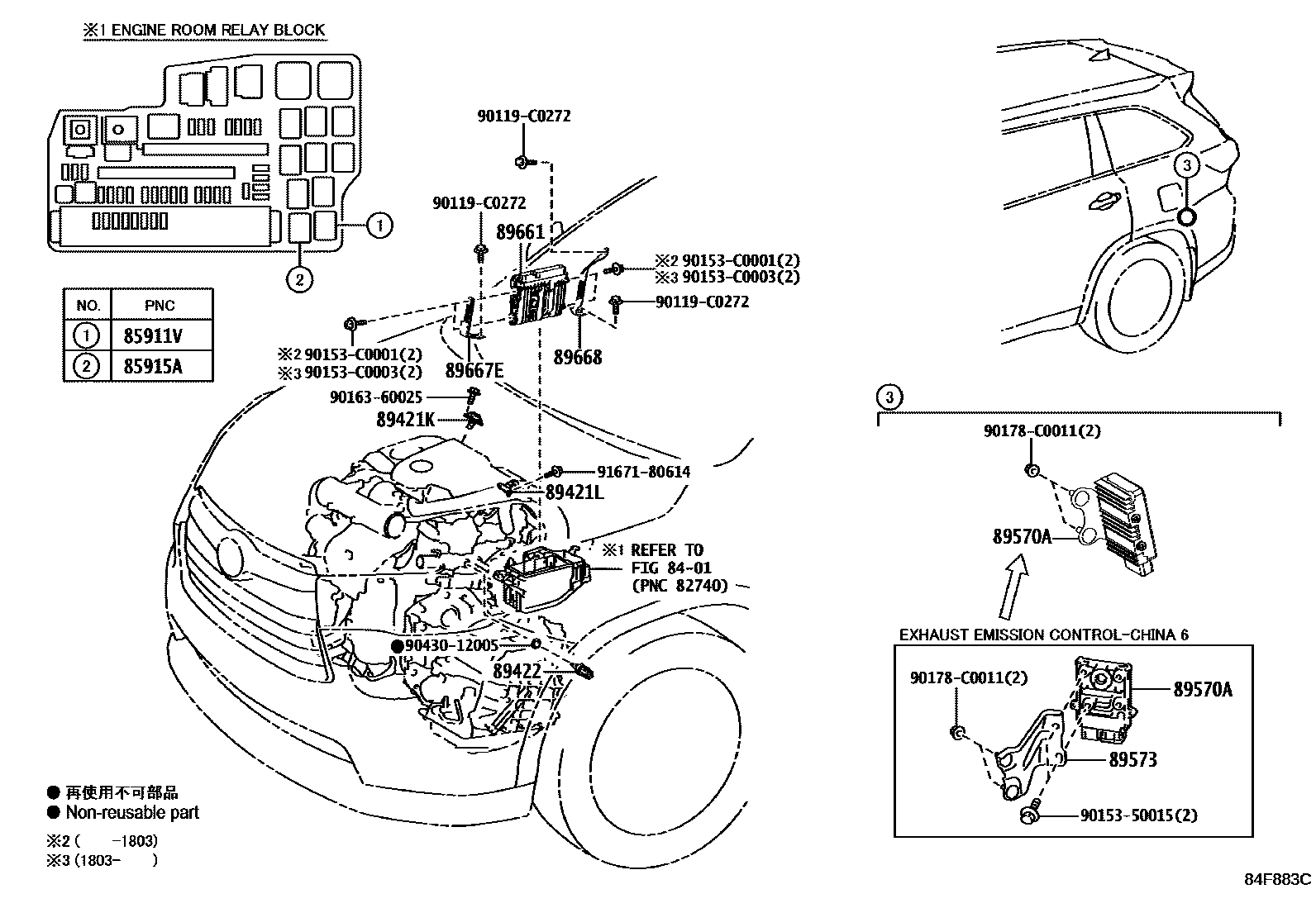

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85911VRELAY, ELECTRONIC DRIVER UNIT

main90987-T2005iASU5#201803

85915ARELAY, MAIN

main90987-T2005iASU5#201503-201803

89421KSENSOR, TURBO PRESSURE, NO.1

main89421-78010iASU5#201503-201803

89421LSENSOR, TURBO PRESSURE, NO.2

main89421-78020iASU5#201503-201803

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGSU55201503-201710

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-48010iGSU55201503-201710

main89571-58010iASU5#202004

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-48050iASU5#202004

89661COMPUTER, ENGINE CONTROL

main89661-0E640iGSU55201503-201710

main89661-0E650iASU50201503-201803

main89661-0E660iASU55201503-201803

main89661-0EA60iASU50201803-201811

DENSO

main89661-0EA61iASU50201812-202004

DENSO

main89661-0EA70iASU55201803-201811

DENSO

main89661-0EA71iASU55201812-202004

DENSO

main89661-0EF80iASU55202004

DENSO

main89661-0EF90iASU50202004

DENSO

main89661-0EA80iASU55201810-202004

DENSO,EXHAUST EMISSION CONTROL-CHINA 6

main89661-0EA90iASU50201810-202004

DENSO,EXHAUST EMISSION CONTROL-CHINA 6

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-0E080iASU5#201503-201803

main89667-0E090iGSU55201503-201710

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-0E080iASU5#201803

main89668-0E090iGSU55201503-201710

90119C0272

main90119-C0272

9015350015

main90153-50015

90153C0001

main90153-C0001

90153C0003

main90153-C0003

9016360025

main90163-60025

90178C0011

main90178-C0011

9043012005

main90430-12005

9167180614

main91671-80614

19 parts on this diagram · 2 diagrams in section
