Toyota 522320 — SEAT BELT & CHILD RESTRAINT SEAT

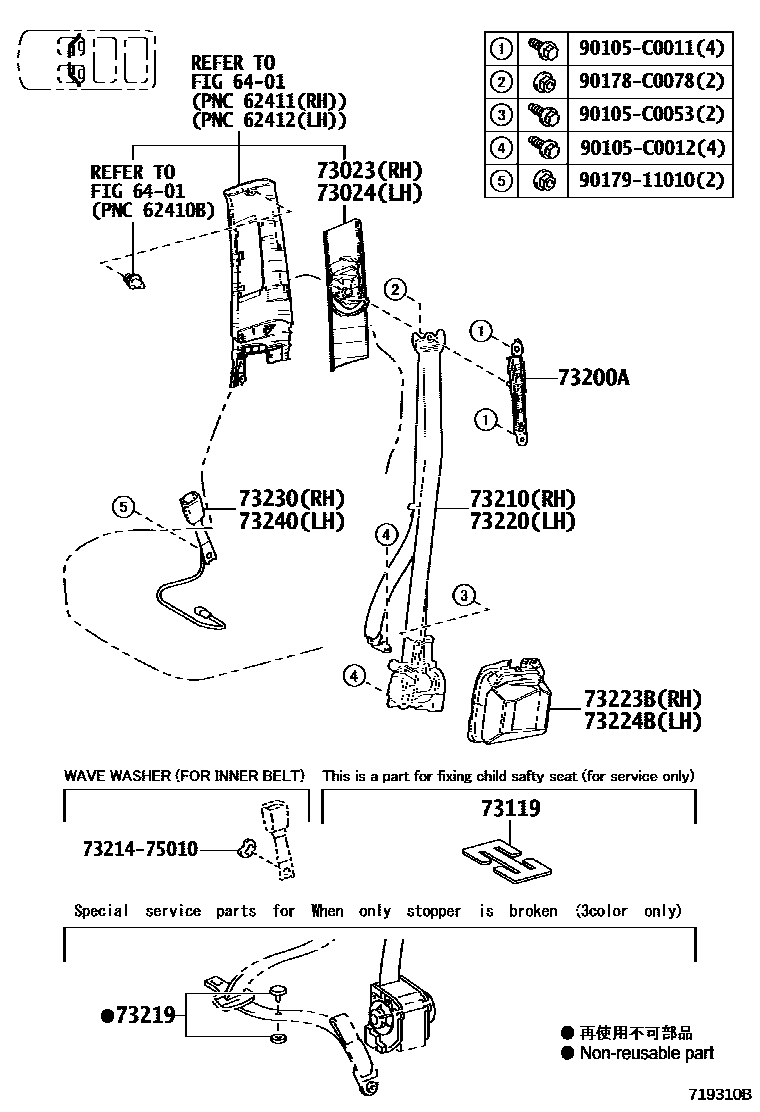

Parts diagram

6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

→ Go to FIG 64-01

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

73119PLATE, SEAT BELT WEBBING CLIP

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

73210BELT ASSY, FRONT SEAT OUTER, RH

73219STOPPER, TONGUE PLATE

73220BELT ASSY, FRONT SEAT OUTER, LH

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

73230BELT ASSY, FRONT SEAT INNER, RH

73240BELT ASSY, FRONT SEAT INNER, LH

7321475010PLATE, FRONT SEAT BELT ANCHOR

90105C0011

90105C0012

90105C0053

90178C0078

9017911010

18 parts on this diagram · 3 diagrams in section

SEAT BELT & CHILD RESTRAINT SEAT for Toyota 522320

This section contains 37 genuine Toyota parts for the SEAT BELT & CHILD RESTRAINT SEAT system of the Toyota 522320. Key components include: INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING, PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH, PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH, PROTECTOR, BELT, PLATE, SEAT BELT WEBBING CLIP.
