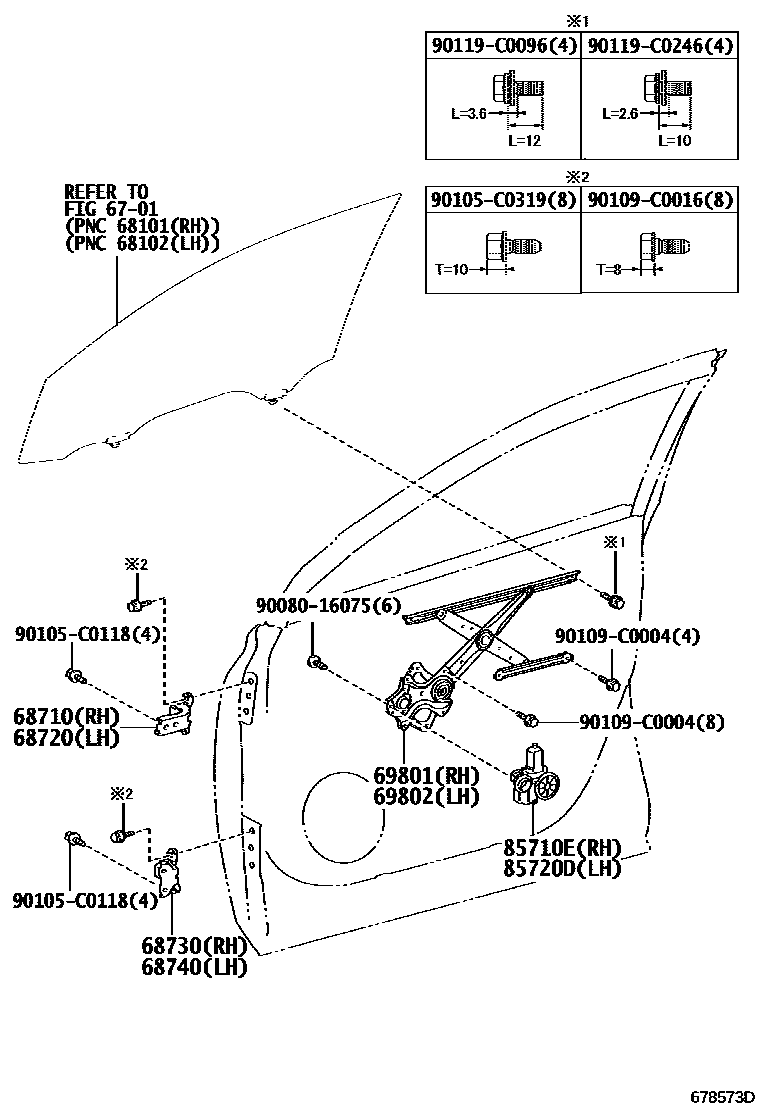

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02031iGSU55201503-201710

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02031iGSU55201503-201710

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02061iGSU55201503-201710

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02061iGSU55201503-201710

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-06230iASU5#201810-202006

main69801-06231iASU5#202007

main69801-0D190iASU5#201803-201809

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-06230iASU5#201810-202006

main69802-06231iASU5#202007

main69802-0D200iASU5#201803-201809

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0E060iGSU55201503-201710

main85710-0E210iASU5#202007

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0E080iGSU55201503-201710

main85720-0E230iASU5#202007

9008016075

main90080-16075

90105C0118

main90105-C0118

90105C0319

main90105-C0319

90109C0004

main90109-C0004

90109C0016

main90109-C0016

90119C0096

main90119-C0096

90119C0246

main90119-C0246

16 parts on this diagram · 1 diagram in section
