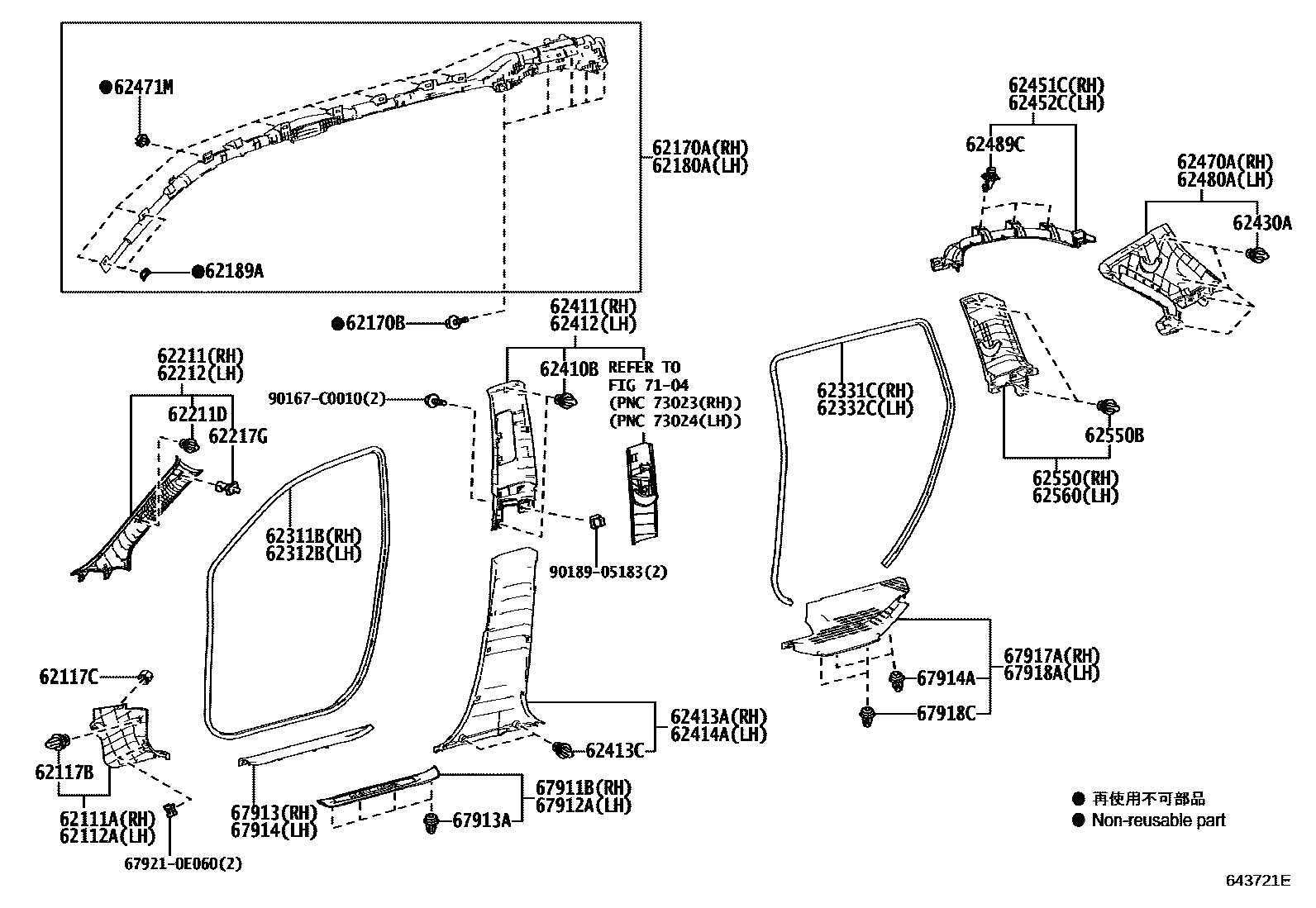

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-0E060-C0iASU5#,GSU55..D; ASU5#,GSU55..LIMD,SPO201503-201803

BLACK,TRIM0#; BLACK,TRIM0#,2#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-0E060-C0iASU5#,GSU55..D; ASU5#,GSU55..LIMD,SPO201503-201803

BLACK,TRIM0#; BLACK,TRIM0#,2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-10161×2iGSU55201503-201710

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-06147×2iGSU55201503-201710

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0E070iASU5#201803

62170BBOLT, W/WASHER

main90119-06869×10iASU5#201503-201803

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0E070iASU5#201803

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010×4iGSU55201503-201710

62211GARNISH, FRONT PILLAR, RH

main62210-0E070-A0iASU5#,GSU55201503-201803

FLAXEN,TRIM0#

main62210-0E070-B0iASU5#,GSU55..LIMD,SPO201503-201803

GRAY,TRIM2#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161×2iGSU55201503-201710

62212GARNISH, FRONT PILLAR, LH

main62220-0E070-A0iASU5#,GSU55201503-201803

FLAXEN,TRIM0#

main62220-0E070-B0iASU55;ASU50..SPO201803

GRAY,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-52120×2iGSU55201503-201710

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0E060-C0iASU5#,GSU55..D; ASU5#,GSU55..LIMD,SPO201503-201803

BLACK,TRIM0#; BLACK,TRIM0#,2#

main62311-0E061iASU5#201909

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0E060-C0iASU5#,GSU55..D; ASU5#,GSU55..LIMD,SPO201503-201803

BLACK,TRIM0#; BLACK,TRIM0#,2#

main62312-0E061iASU5#201909

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0E060-C0iASU5#,GSU55..D; ASU5#,GSU55..LIMD,SPO201503-201803

BLACK,TRIM0#; BLACK,TRIM0#,2#

main62331-0E061iASU5#201909

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0E060-C0iASU5#,GSU55..D; ASU5#,GSU55..LIMD,SPO201503-201803

BLACK,TRIM0#; BLACK,TRIM0#,2#

main62332-0E061iASU5#201909

62410BCLIP

main90467-09232×4iASU5#201503-201803

62411GARNISH, CENTER PILLAR, RH

main62410-0E070-A1iASU5#,GSU55201503-201512

FLAXEN,TRIM0#

main62410-0E070-B1iASU5#,GSU55..LIMD,SPO201503-201512

GRAY,TRIM2#

main62410-0E071-A1iASU5#201803

FLAXEN,TRIM0#

main62410-0E071-B1iASU5#,GSU55..LIMD,SPO201601-201803

GRAY,TRIM2#

62412GARNISH, CENTER PILLAR, LH

main62420-0E070-A1iASU5#,GSU55201503-201512

FLAXEN,TRIM0#

main62420-0E070-B1iASU5#,GSU55..LIMD,SPO201503-201512

GRAY,TRIM2#

main62420-0E071-A1iASU5#,GSU55201601-201803

FLAXEN,TRIM0#

main62420-0E071-B1iASU5#,GSU55..LIMD,SPO201601-201803

GRAY,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0E060-C0iASU50..D; ASU55;ASU50..SPO201803

BLACK,TRIM0#; BLACK,TRIM0#,2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-09232×4iASU5#201803

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0E060-C0iASU5#,GSU55..D; ASU5#,GSU55..LIMD,SPO201503-201803

BLACK,TRIM0#; BLACK,TRIM0#,2#

62430ACLIP, ROOF SIDE RAIL GARNISH

main90467-10167×6iGSU55201503-201710

BLUE

main90467-A0033×2iASU5#201503-201803

NATURAL

62451CGARNISH, ROOF SIDE RAIL, REAR RH

main62450-0E020-A0iASU5#201803

FLAXEN,TRIM0#

main62450-0E020-B0iASU55;ASU50..SPO201803

GRAY,TRIM2#

62452CGARNISH, ROOF SIDE RAIL, REAR LH

main62460-0E020-A0iASU5#,GSU55201503-201803

FLAXEN,TRIM0#

main62460-0E020-B0iASU5#,GSU55..LIMD,SPO201503-201803

GRAY,TRIM2#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-0E140-A0iASU5#,GSU55201503-201512

FLAXEN,TRIM0#

main62470-0E140-B0iASU5#,GSU55..LIMD,SPO201503-201512

GRAY,TRIM2#

main62470-0E141-A0iASU5#201803

FLAXEN,TRIM0#

main62470-0E141-B0iASU5#,GSU55..LIMD,SPO201601-201803

GRAY,TRIM2#

main62470-0E150-A0iASU50..D201503-201512

REAR NO.2 SEAT-WITHOUT,FLAXEN,TRIM0#

main62470-0E151-A0iASU50..D201803

REAR NO.2 SEAT-WITHOUT,FLAXEN,TRIM0#

62471MCLIP

main90467-18017×18iGSU55201503-201710

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-0E140-A0iASU5#,GSU55201503-201512

FLAXEN,TRIM0#

main62480-0E140-B0iASU5#,GSU55..LIMD,SPO201503-201512

GRAY,TRIM2#

main62480-0E141-A0iASU5#201803

FLAXEN,TRIM0#

main62480-0E141-B0iASU55;ASU50..SPO201803

GRAY,TRIM2#

main62480-0E150-A0iASU50..D201503-201512

REAR NO.2 SEAT-WITHOUT,FLAXEN,TRIM0#

main62480-0E151-A0iASU50..D201601-201803

REAR NO.2 SEAT-WITHOUT,FLAXEN,TRIM0#

62489CCLIP, ROOF SIDE INNER GARNISH

main62489-60020×6iGSU55201503-201710

62550GARNISH ASSY, REAR BODY PILLAR, RH

main62550-0E020-A0iASU5#,GSU55201503-201803

FLAXEN,TRIM0#

main62550-0E020-B0iASU55;ASU50..SPO201803

GRAY,TRIM2#

62550BCLIP(FOR REAR WINDOW SIDE GARNISH)

main90467-10161×4iASU5#201503-201803

62560GARNISH ASSY, REAR BODY PILLAR, LH

main62560-0E020-A0iASU5#,GSU55201503-201803

FLAXEN,TRIM0#

main62560-0E020-B0iASU55;ASU50..SPO201803

GRAY,TRIM2#

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-0E100-C0iASU50..D; ASU55..D201803

BLACK,TRIM0#; BLACK,TRIM0#,2#

main67911-0E110-C0iASU5#,GSU55..LIMD,SPO201503-201803

BLACK,TRIM0#,2#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-0E100-C0iASU50..D; ASU55..D201803

BLACK,TRIM0#; BLACK,TRIM0#,2#

main67912-0E110-C0iASU5#..LIMD,SPO201803

BLACK,TRIM0#,2#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-0E070-C0iASU5#,GSU55..D; ASU5#,GSU55..LIMD,SPO201503-201803

BLACK,TRIM0#; BLACK,TRIM0#,2#

67913ACLIP(FOR SCUFF PLATE)

main90467-10167×8iGSU55201503-201710

67914PLATE, FRONT DOOR SCUFF, LH

main67914-0E070-C0iASU5#,GSU55..D; ASU5#,GSU55..LIMD,SPO201503-201803

BLACK,TRIM0#; BLACK,TRIM0#,2#

67914ACLIP(FOR SCUFF PLATE)

main90467-09206×4iASU5#201503-201803

main90467-C0033×4iASU5#202004

67917APLATE, REAR DOOR SCUFF, RH

main67917-0E060-C0iASU5#,GSU55..D; ASU5#,GSU55..LIMD,SPO201503-201803

BLACK,TRIM0#; BLACK,TRIM0#,2#

67918APLATE, REAR DOOR SCUFF, LH

main67918-0E070-C0iASU5#,GSU55..D; ASU5#,GSU55..LIMD,SPO201503-201803

BLACK,TRIM0#; BLACK,TRIM0#,2#

67918CCLIP(FOR REAR SCUFF PLATE)

main90467-10161×4iASU5#201803

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

679210E060RETAINER, FRONT DOOR SCUFF PLATE

main67921-0E060

90167C0010

main90167-C0010

9018905183

main90189-05183

45 parts on this diagram · 1 diagram in section
