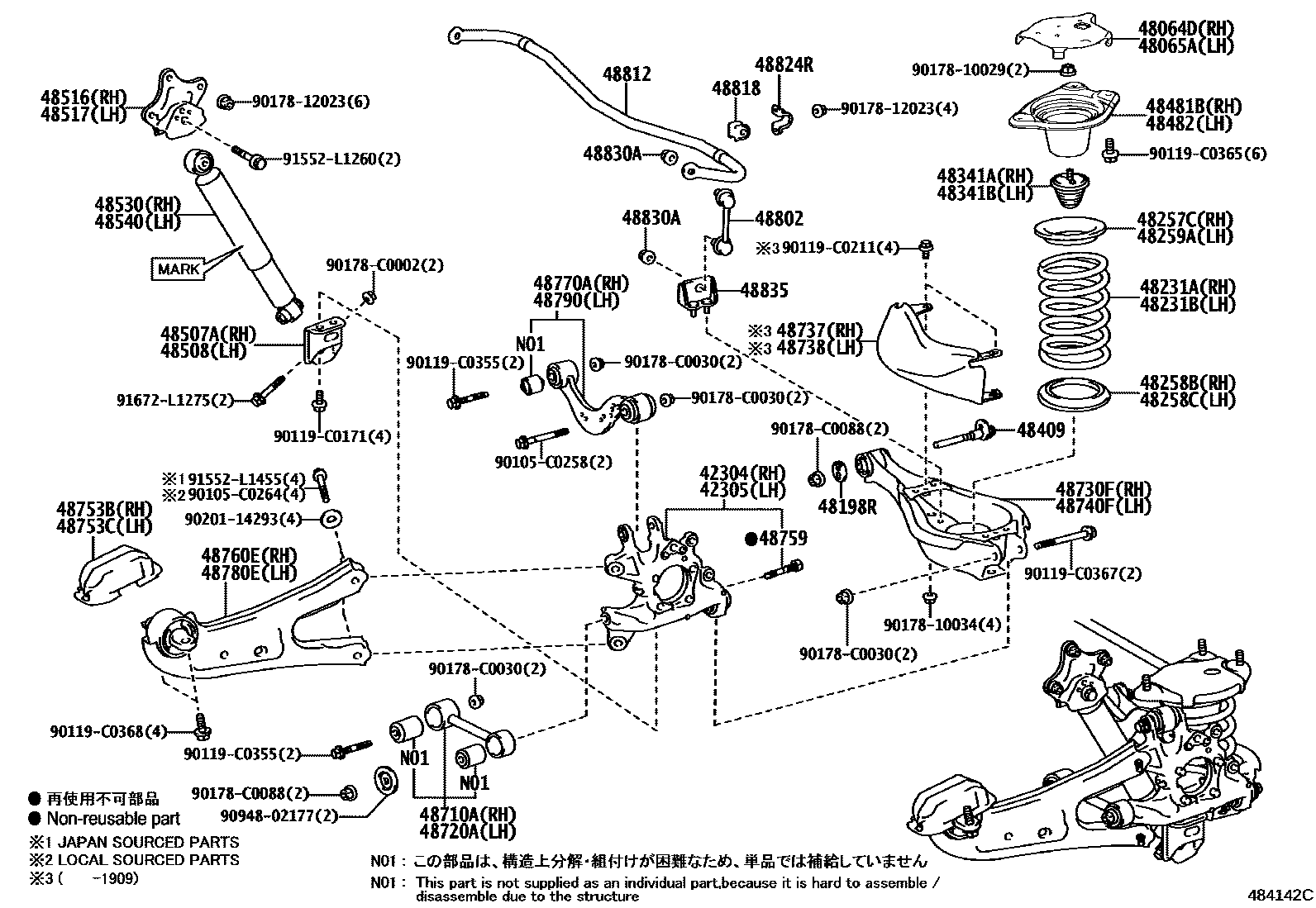

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-0E070iASU5#201503-201803

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-0E070iGSU55201503-201710

48064DCOVER SUB-ASSY, REAR SUSPENSION SUPPORT, RH

main48064-0E020iASU5#201803

48065ACOVER SUB-ASSY, REAR SUSPENSION SUPPORT, LH

main48065-0E020iGSU55201503-201710

48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2

main48198-0E010×2iGSU55201503-201710

48231ASPRING, COIL, REAR RH

main48231-0E220iASU50201803

main48231-0E230iGSU55201503-201710

48231BSPRING, COIL, REAR LH

main48231-0E220iASU50..D,SPO201503-201803

main48231-0E230iGSU55201503-201710

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-0E030iGSU55201503-201710

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-0E060iGSU55201503-201710

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-0E060iASU5#201803

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-0E030iGSU55201503-201710

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-0E040iGSU55201503-201710

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-0E040iGSU55201503-201710

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-0E030×2iGSU55201503-201710

48481BSEAT, REAR SPRING, UPPER RH

main48481-0E020iGSU55201503-201710

48482SEAT, REAR SPRING, UPPER LH

main48482-0E020iGSU55201503-201710

48507ABRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER RH

main48507-0E020iGSU55201503-201710

48508BRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER LH

main48508-0E020iGSU55201503-201710

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48516-0E020iGSU55201503-201710

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48517-0E020iGSU55201503-201710

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-0E150iASU50201803

MARK 48531-0E150

main48531-0E160iASU55201503-201803

MARK 48531-0E160

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-0E150iASU50201503-201803

MARK 48531-0E150

main48531-0E160iASU55201503-201803

MARK 48531-0E160

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-0E070iASU5#201803

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-0E070iGSU55201503-201710

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-0E090iGSU55201503-201710

48737COVER, REAR SUSPENSION ARM, RH

main48737-0E020iGSU55201503-201710

48738COVER, REAR SUSPENSION ARM, LH

main48738-0E020iGSU55201503-201710

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-0E090iGSU55201503-201710

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-0E020iGSU55201503-201710

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-0E020iGSU55201503-201710

48759PIN, LOWER CONTROL ARM

main48759-0E020iASU5#201803

48760EARM ASSY, TRAILING, REAR RH

main48760-0E060iASU5#201803

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-0E020iGSU55201503-201710

48780EARM ASSY, TRAILING, REAR LH

main48780-0E070iASU5#201803

48790ARM ASSY, UPPER CONTROL, REAR LH

main48770-0E020iGSU55201503-201710

48802LINK SUB-ASSY, STABILIZER

main48802-0E020iGSU55201503-201710

RH

main48803-0E020iASU5#201803

LH

48812BAR, STABILIZER, REAR

main48812-0E080iGSU55201503-201710

48818BUSH, STABILIZER, REAR

main48818-0E070×2iGSU55201503-201710

48824RBRACKET, STABILIZER(FOR REAR)

main48832-0E220×2iGSU55201503-201710

48830ANUT(FOR REAR STABILIZER LINK)

main90178-C0018×4iGSU55201503-201710

48835BRACKET, REAR STABILIZER, LOWER

main48835-0E020×2iGSU55201503-201710

90105C0258

main90105-C0258

90105C0264

main90105-C0264

90119C0171

main90119-C0171

90119C0211

main90119-C0211

90119C0355

main90119-C0355

90119C0365

main90119-C0365

90119C0367

main90119-C0367

90119C0368

main90119-C0368

9017810029

main90178-10029

9017810034

main90178-10034

9017812023

main90178-12023

90178C0002

main90178-C0002

90178C0030

main90178-C0030

90178C0088

main90178-C0088

9020114293

main90201-14293

9094802177

main90948-02177

91552L1260

main91552-L1260

91552L1455

main91552-L1455

91672L1275

main91672-L1275

60 parts on this diagram · 1 diagram in section
