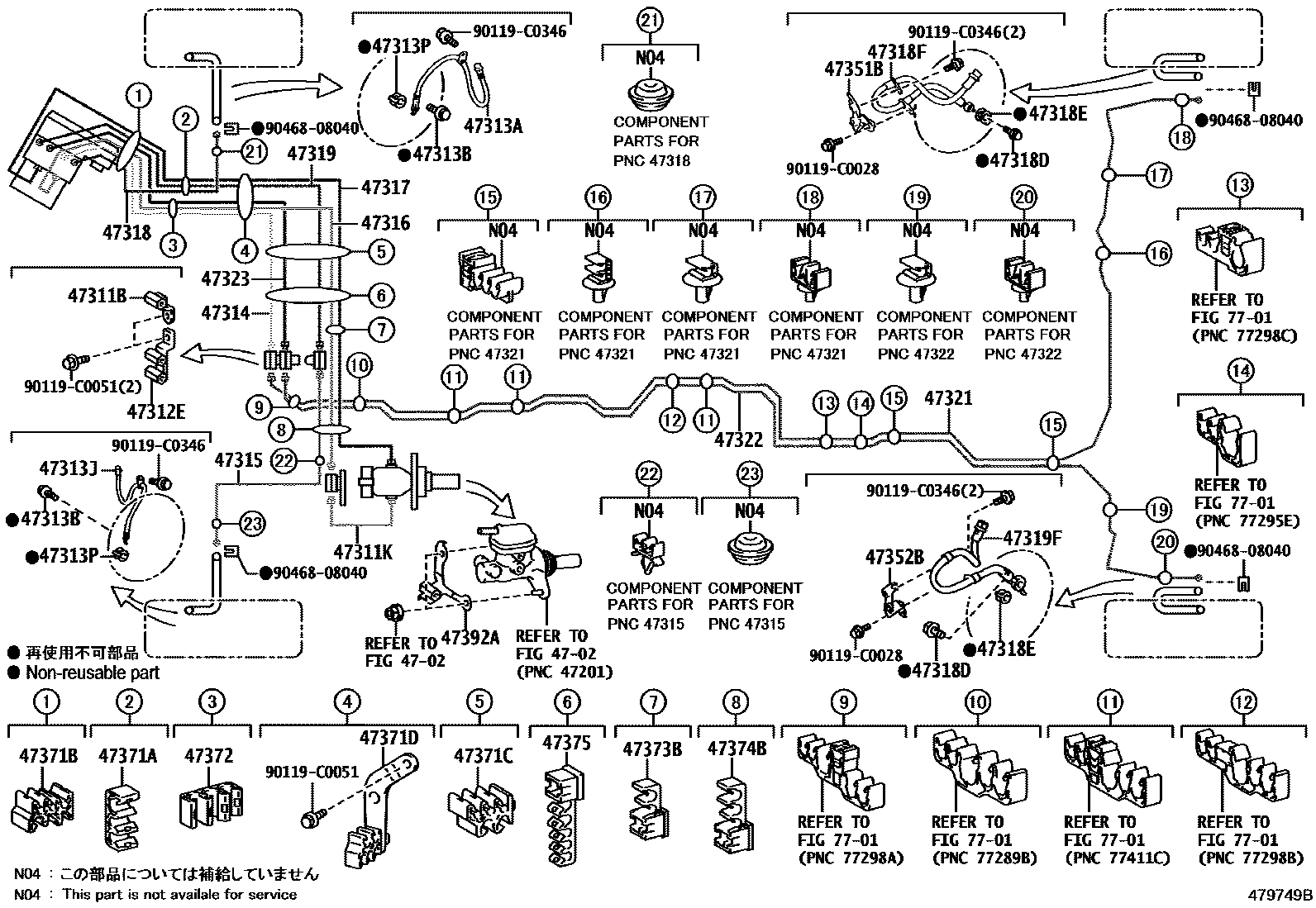

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE ACTUATOR 0005 1BRAKE ACTUATOR

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10272iASU5#201607-201803

(J)

main90412-C0002iASU5#201607-201803

(L)

47311KTUBE, BRAKE MASTER CYLINDER TO WAY

main47311-0E020iGSU55201503-201710

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10293iASU5#,GSU55201503-201607

main90412-C0003iASU5#201607-201803

(L)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-C2069iGSU55201503-201710

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-C0001×2iASU5#201503-201803

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-C2070iASU5#201803

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iGSU55201503-201710

47314TUBE, FRONT BRAKE, NO.4

main47324-0E100iASU5#201803

main47324-0E110iASU5#201503-201803

47315TUBE, FRONT BRAKE, NO.5

main47315-0E100iGSU55201503-201710

47316TUBE, FRONT BRAKE, NO.6

main47316-0E040iGSU55201503-201710

main47316-0E080iASU5#201803

47317TUBE, FRONT BRAKE, NO.7

main47317-0E040iGSU55201503-201710

main47317-0E080iASU5#201803

47318TUBE, FRONT BRAKE, NO.8

main47318-0E080iASU5#201803

main47318-0E090iGSU55201503-201710

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iASU5#,GSU55201503-201607

main90401-C0001×2iGSU55201607-201710

(L)

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iGSU55201503-201710

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-C2071iGSU55201503-201710

47319TUBE, FRONT BRAKE, NO.9

main47319-0E100iASU5#201803

main47319-0E110iGSU55201503-201710

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-C2071iGSU55201503-201710

47321TUBE, REAR BRAKE, NO.1

main47321-0E080iASU5#,GSU55201503-201803

47322TUBE, REAR BRAKE, NO.2

main47322-0E080iASU5#,GSU55201503-201803

47323TUBE, REAR BRAKE, NO.3

main47323-0E100iASU5#201803

main47323-0E110iASU5#201503-201803

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-0E020iGSU55201503-201710

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-0E020iASU5#201803

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00894iASU5#201503-201803

47371BCLAMP, BRAKE TUBE, NO.6

main90464-00876iASU5#201803

main90949-01D52iGSU55201503-201710

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01D53iGSU55201503-201710

47371DCLAMP, BRAKE TUBE, NO.8

main90949-04045iGSU55201503-201710

47372CLAMP, BRAKE TUBE, NO.2

main90464-00919iASU5#201503-201803

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D49iGSU55201503-201710

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D50iGSU55201503-201710

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D51iGSU55201503-201710

47392AWAY, BRAKE TUBE, NO.2

main47392-48010iGSU55201503-201710
