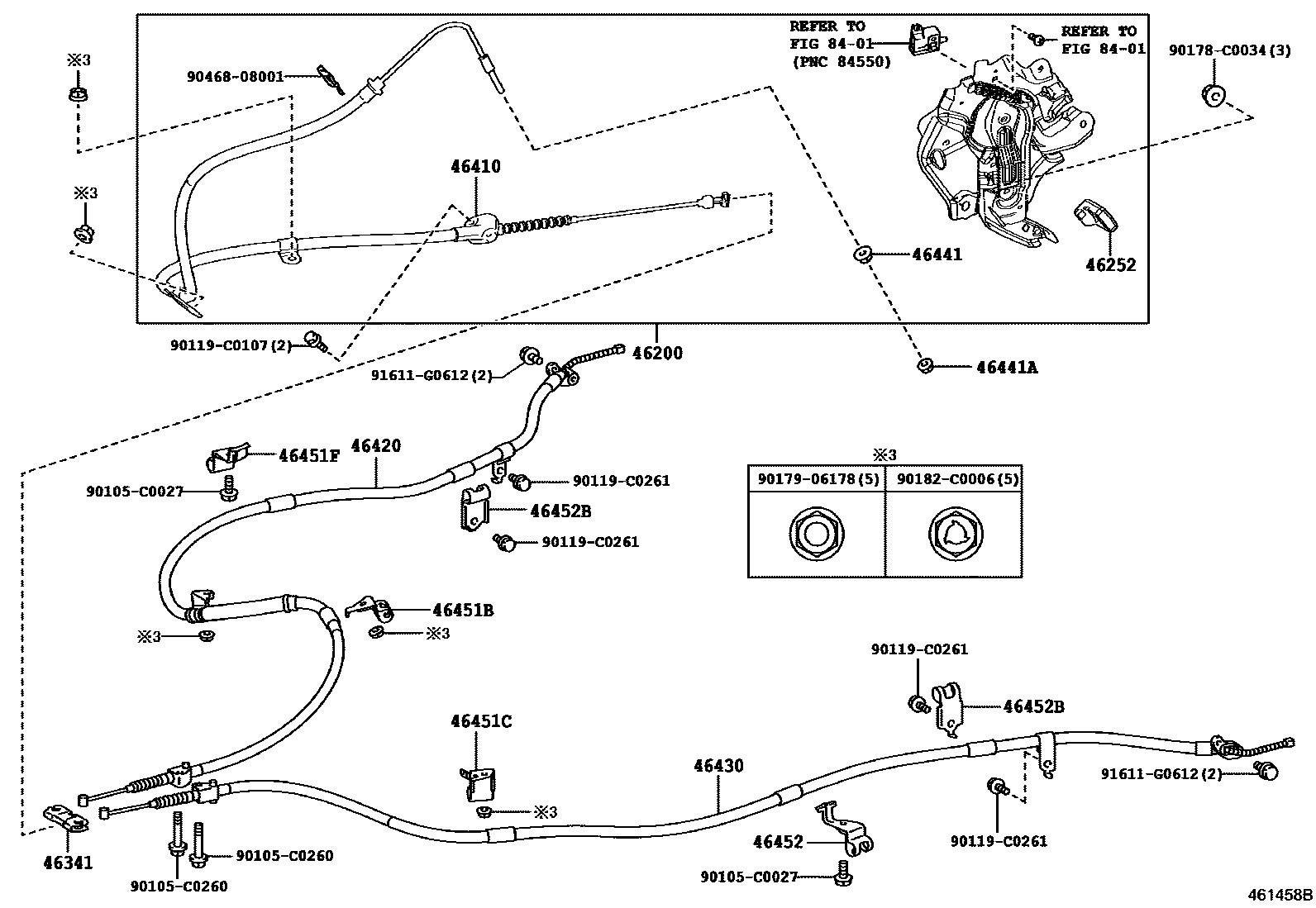

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-0E080iGSU55201503-201803

46252PAD, PARKING PEDAL

main46252-22010iGSU55201503-201803

46341EQUALIZER, PARKING BRAKE

main46341-0E010iGSU55201503-201803

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0E090iGSU55201503-201803

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0E080iGSU55201503-201803

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0E080iGSU55201503-201803

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iGSU55201503-201803

46441ANUT, WIRE ADJUSTING, NO.2

main90178-C0032iGSU55201503-201803

46451BBRACKET, PARKING BRAKE CABLE SUPPORT

main46451-0E140iGSU55201503-201803

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-0E150iGSU55201503-201803

46451FBRACKET, CABLE SUPPORT

main46451-0E130iGSU55201503-201803

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-0E160iGSU55201503-201803

46452BBRACKET, CABLE SUPPORT, NO.2

main46451-0E170iGSU55201503-201803

8401

90105C0027

main90105-C0027

90105C0260

main90105-C0260

90119C0107

main90119-C0107

90119C0261

main90119-C0261

90178C0034

main90178-C0034

9017906178

main90179-06178

90182C0006

main90182-C0006

9046808001

main90468-08001

91611G0612

main91611-G0612

23 parts on this diagram · 2 diagrams in section
